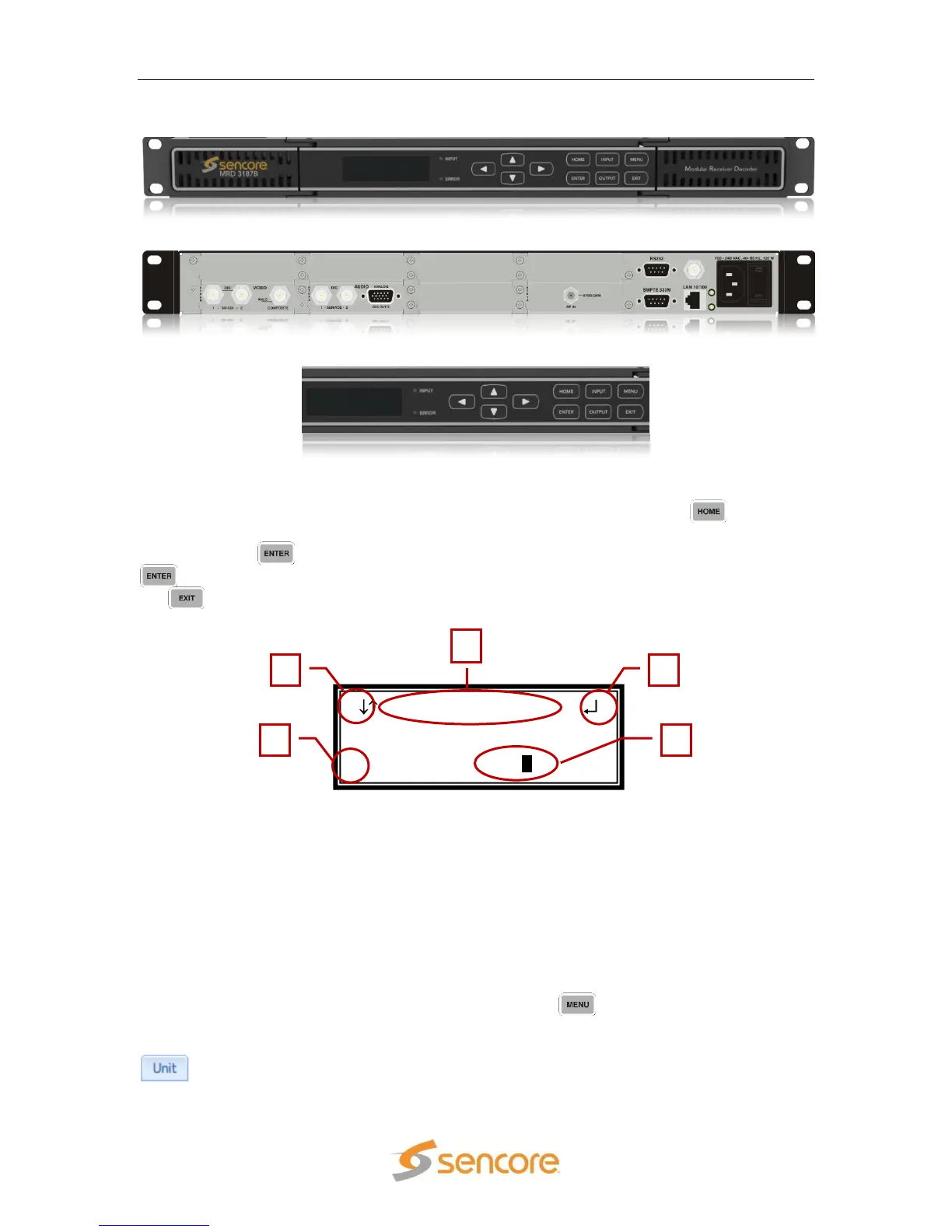

2.1 Front of Unit
2.2 Rear of Unit
2.3 Front Panel Display Layout
The following figure shows a typical screen on the front panel. Several important
features have been circled and noted below. These features are common to all screens
and assist when navigating, viewing and editing unit information. The button will
return the user to the home level while in any screen. In order to edit a selected
parameter, the button must be pressed. Once a parameter has been changed, the
button must be pressed again before the change takes effect on the unit. Pressing
the button will leave an edit mode without changes taking effect.
1. Icons indicate which control buttons are currently valid for
entry.
2. Screen title.
3. Cursor shows which line is active.
4. When editing, active character or item is highlighted.
2.4 Front Panel Indicators
The MRD 3187B has four internal error parameters: INPUT, DECODER, FAN and
TEMPERATURE. These parameters can be monitored locally or remotely. Locally the
unit‟s status can be checked by visually looking at the INPUT LED and the ERROR LED
on the front panel, then use the “Error List” under the button to pinpoint the error.
Remotely, the unit‟s status can be checked by using the web client and looking at the
status icons on the top of the main window. To see a detailed list of errors, click on the
tab from the web client.
