MRD 3187B - User Manual
Page 97 (245)

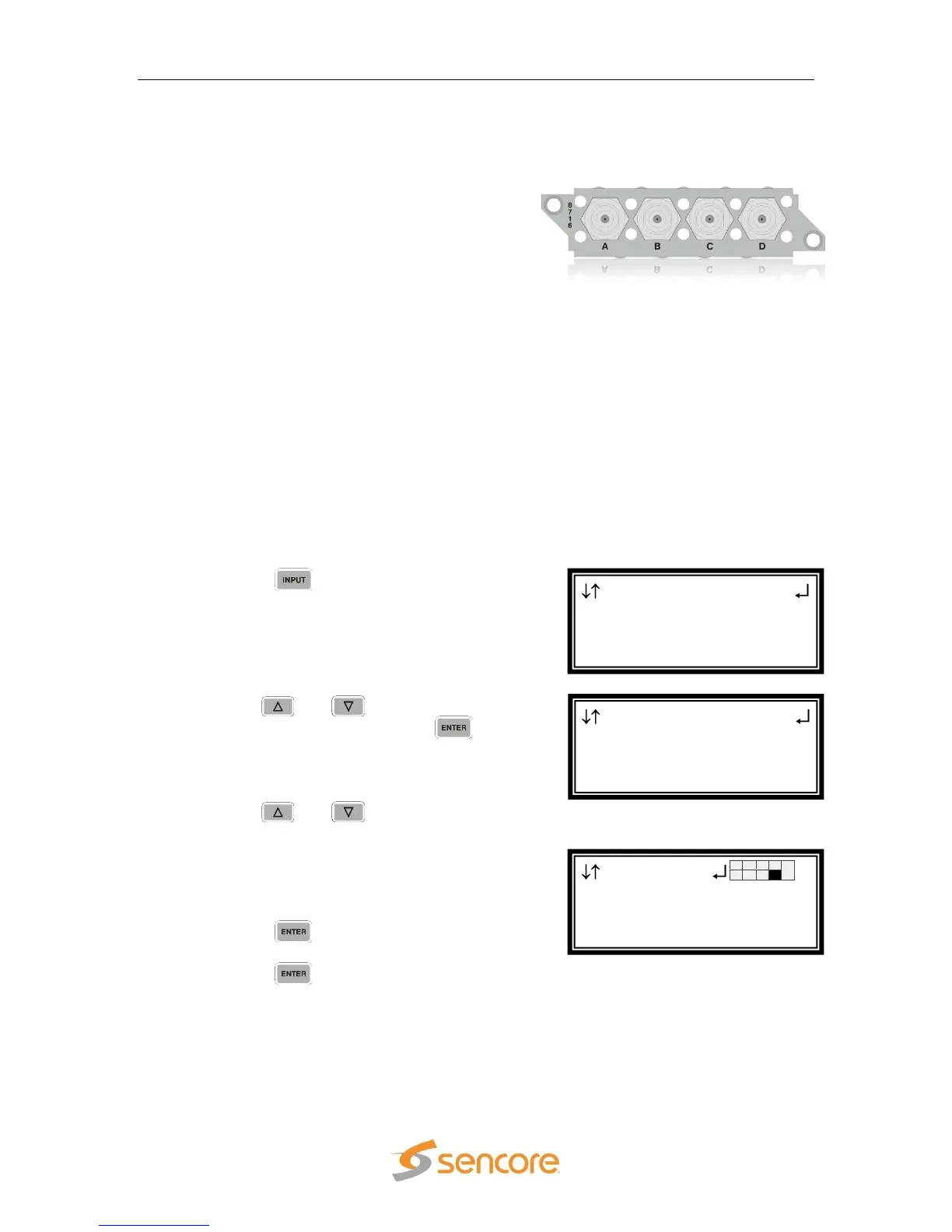

4.15 Quad Input DVB-S/DVB-S2 Receiver with LNB – Option
8716/8716G
General Information
Install Location: Any slot except 1-1 or 2-1.
I/O: (2) 75Ω Female F Connectors
Supported Formats: DVB-S/DVB-S2
Description: This input provides a satellite L-band (950 MHz – 2150 MHz) signal for
demodulation of KU-band or C-band DVB-S QPSK signals or DVB-S2
QPSK/8PSK signals. The symbol rate ranges from 1 MSym/s to 45 MSym/s for
both DVB-S and DVB-S2. This card provides LNB power and 22 kHz control tone
to the active input. This card has advanced feature options of multistream input,
support for VCM, and support for 16APSK and 32APSK modulation. The “Input”
LED will only illuminate if the card detects frequency, symbol rate, FEC lock
(Carrier Lock), and TS sync (Sync Lock). The card provides A, B, C and D inputs,
which may be independently configured, but only one may be active at a time.
The 8716G card is the 8716 card without the ability to license the Advanced
Satellite Features. The 8716G card is the same as an unlicensed 8716 card.
To Edit the Option Card Input Settings
To edit this input card, use the following steps:
1. Press the button.
2. Use the and buttons to select
“Input Modules”, and press the
button.
3. Use the and buttons to move the
cursor to the “DVB-S/S2” card of the
specific slot (e.g. 1-4). Notice the location
diagram in the upper right corner of the
screen changes as the cursor moves by
each card.
4. Press the button once to display the
Status screen for the DVB-S/S2 card.
5. Press the button again to display the
Edit screen for the DVB-S/S2 card.
Input
ASI/310M 1-3
►DVB-S/S2 1-4
Input
Active Input
Backup Mode
►Input Modules
Input
Active Input
Backup Mode
►Input Modules
