MRD 3187B - User Manual
Page 76 (245)

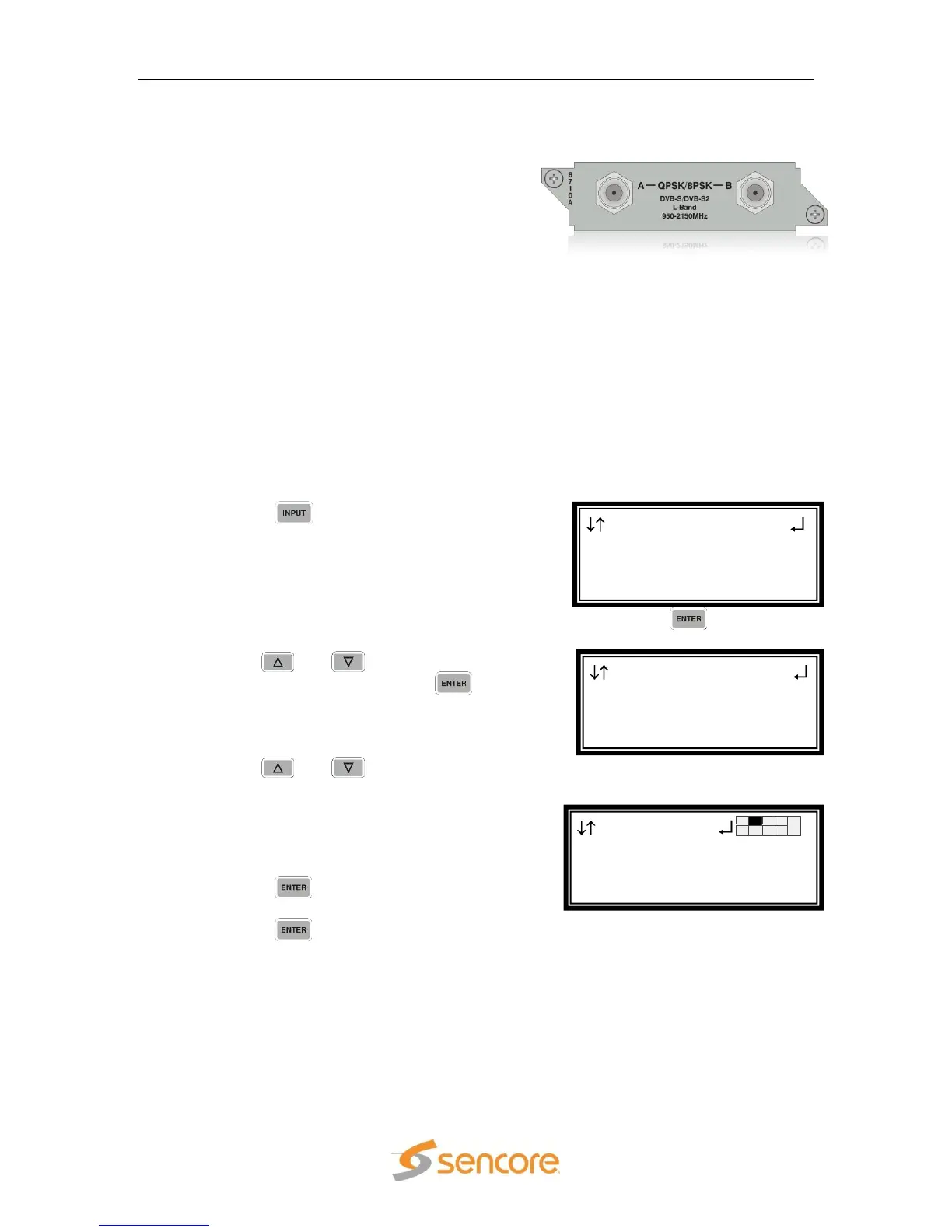

4.10 Dual Input DVB-S/DVB-S2 Receiver – Option 8710/8710A
General Information
Install Location: Any slot except 1-1 or 2-1.
I/O: (2) 75Ω Female F Connectors
Supported Formats: DVB-S/DVB-S2
Description: This card will input a satellite L-band (950 MHz – 2150 MHz) signal for
demodulation of KU-band or C-band DVB-S QPSK signals or DVB-S2
QPSK/8PSK signals. The symbol rate ranges from 1 MSym/s to 45 MSym/s for
DVB-S and 1-30 MSym/s for DVB-S2. This card does not provide any power to
the dish LNB. The “Input” LED will only illuminate if the card detects frequency,
symbol rate, FEC lock (Carrier Lock), and TS sync (Sync Lock). The card
provides A and B inputs, which may be independently configured, but only one
may be used at a time.
Note: This card does not provide power to the dish LNB
To Edit the Option Card Input Settings
To edit this input card, use the following steps:
1. Press the button.
Note: For Configuration 2 units, select RDS1 or RDS2, then press .
2. Use the and buttons to select
“Input Modules”, and press the
button.
3. Use the and buttons to move the
cursor to the “DVB-S/S2” card of the
specific slot (e.g. 2-2). Notice the location
diagram in the upper right corner of the
screen changes as the cursor moves by
each card.
4. Press the button once to display the
Status screen for the DVB-S/S2 card.
5. Press the button again to display the
Edit screen for the DVB-S/S2 card.
Input
MPEG/IP 1-3
►DVB-S/S2 2-2
Input
Active Input
Backup Mode
►Input Modules
Input
►Active Input
Backup Mode
Input Modules
