MRD 3187B - User Manual
Page 32 (245)

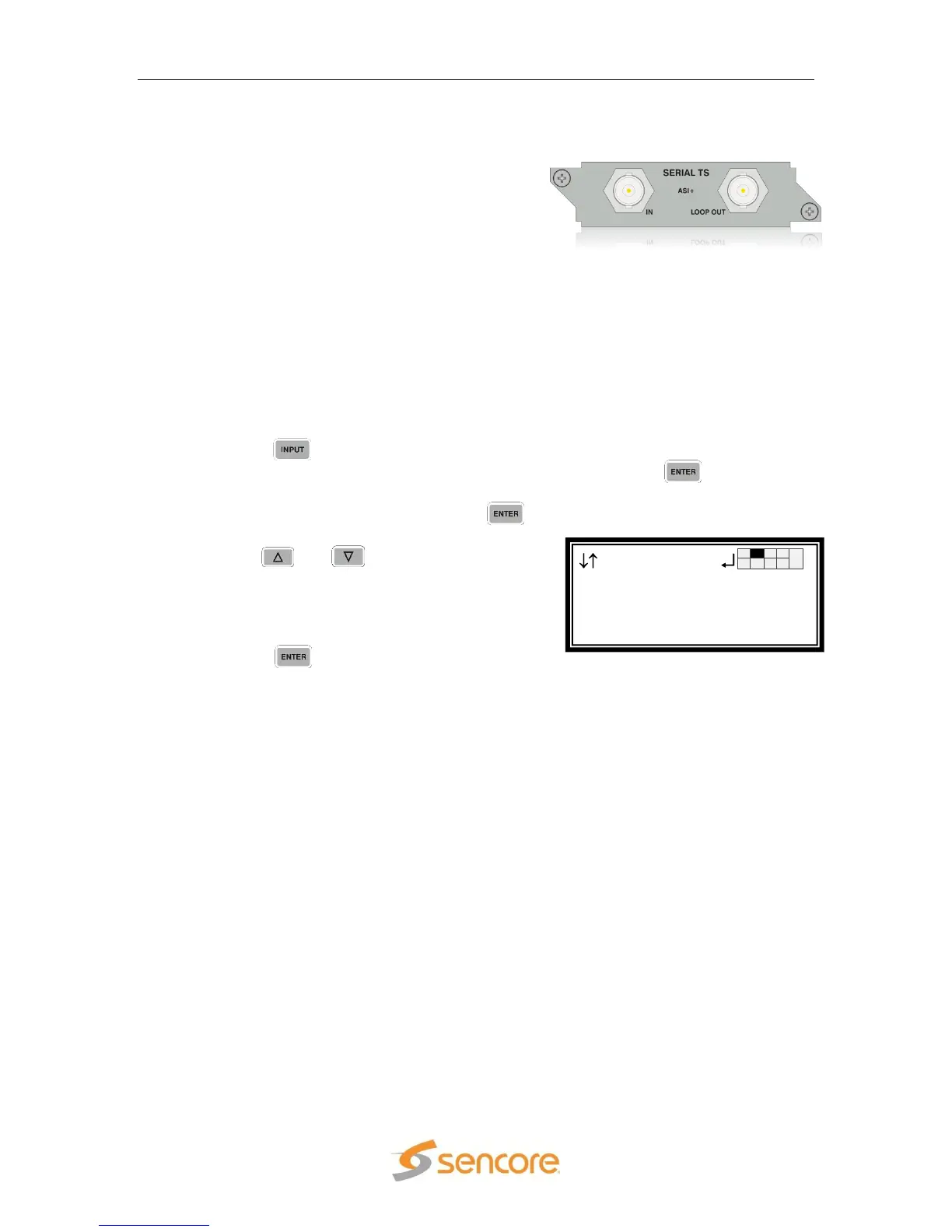

4.4 High Bit Rate ASI Input – Option 8703
General Information
Install Location: Any slot except 1-1 and 2-1.
I/O: (1) 75Ω Female BNC Input, (1) 75Ω
Female BNC Loop Out
Supported Formats: ASI
Description: This card provides DVB-ASI input for MPTS up to 160 Mb/sec. The
maximum TS bitrate for the card is 160 Mb/sec if the stream consists of a MPTS
where no program within the stream is greater than 54 Mb/sec. The output on the
card is a passive loop-through and should be terminated with a 75 ohm
terminator when not in use. The card cannot be used to provide a TS output from
another TS input on the unit.
To Display the High Bit Rate ASI Status
Note: There are no user settings associated with this card.
1. Press the button.
Note: For Configuration 2 units, select RDS1 or RDS2, then press .
2. Select “Input Modules”, and press the
button.
3. Use the and buttons to move the
cursor to the “ASI+” card of the specific slot
(e.g. 2-2). Notice the location diagram in
the upper right corner of the screen
changes as the cursor moves by each card.
4. Press the button once to display the
Status screen for the ASI+ card.
Input
►ASI+ 2-2
VSB/QAM 1-4
ASI/310M 2-3
