MRD 3187B - User Manual
Page 35 (245)

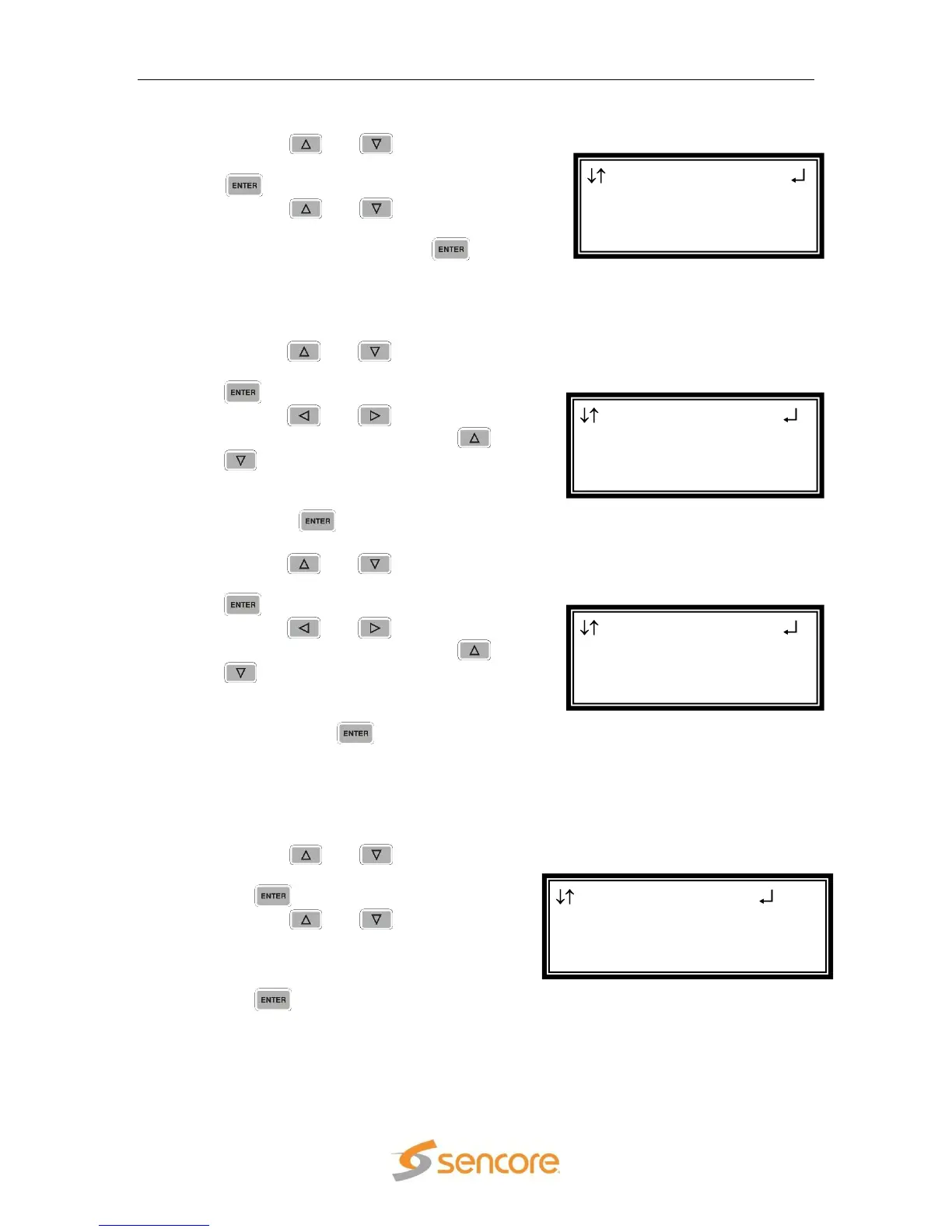

Auto AFD
1. Use the and buttons to move
the cursor to “Auto AFD:” then press the
button.
2. Use the and buttons to select
the appropriate mode (“Enabled” or
“Disabled”), then press the button
to save the selection.
Video Shift
Video Shift provides a horizontal and vertical shift of the video output.
3. Use the and buttons to move
the cursor to “H-shift:” then press the
button.
Use the
and
buttons to select
the column to edit and use the
and
buttons to change the horizontal
step (-50 – +50 steps, where the minus
direction moves the video down), then
press the
button to save the
selection.
4. Use the and buttons to move
the cursor to “V-shift:” then press the
button.
5. Use the
and
buttons to select
the column to edit and use the
and
buttons to change the vertical step
(-50 – +50 steps, where the minus
direction moves the video to the left),
then press the
button to save the
selection.
Raster Color
This setting determines the color of the raster that is output by the decoder when
input is lost.
1. Use the and buttons to move
the cursor to “Raster Color:” then press
the button.
2. Use the and buttons to select
the desired raster color (“Black”,
“White”, “Yellow”, “Cyan”, “Green”,
“Magenta”, “Red”, “Blue”), then press
the button to save the selection.
Genlock Offset
The 8704A/8704B card can be Genlocked to a standard “black and burst” signal
applied to the Genlock input on the back panel. The frame rate of the “black and
burst” signal must be the same as the frame rate of the video output. The “Genlock
SD Video 1-1
H-Shift:+00 steps
V-Shift:+00 steps
►Raster Color: Black
SD Video 1-1
Auto AFD:Disabled
H-Shift:+00 steps
►V-Shift:+00 steps
SD Video 1-1
Auto AFD:Disabled
►H-Shift:+00 steps
V-Shift:+00 steps
SD Video 1-1
SDI Video Loss Mode:
Display Raster
►Auto AFD:Disabled
