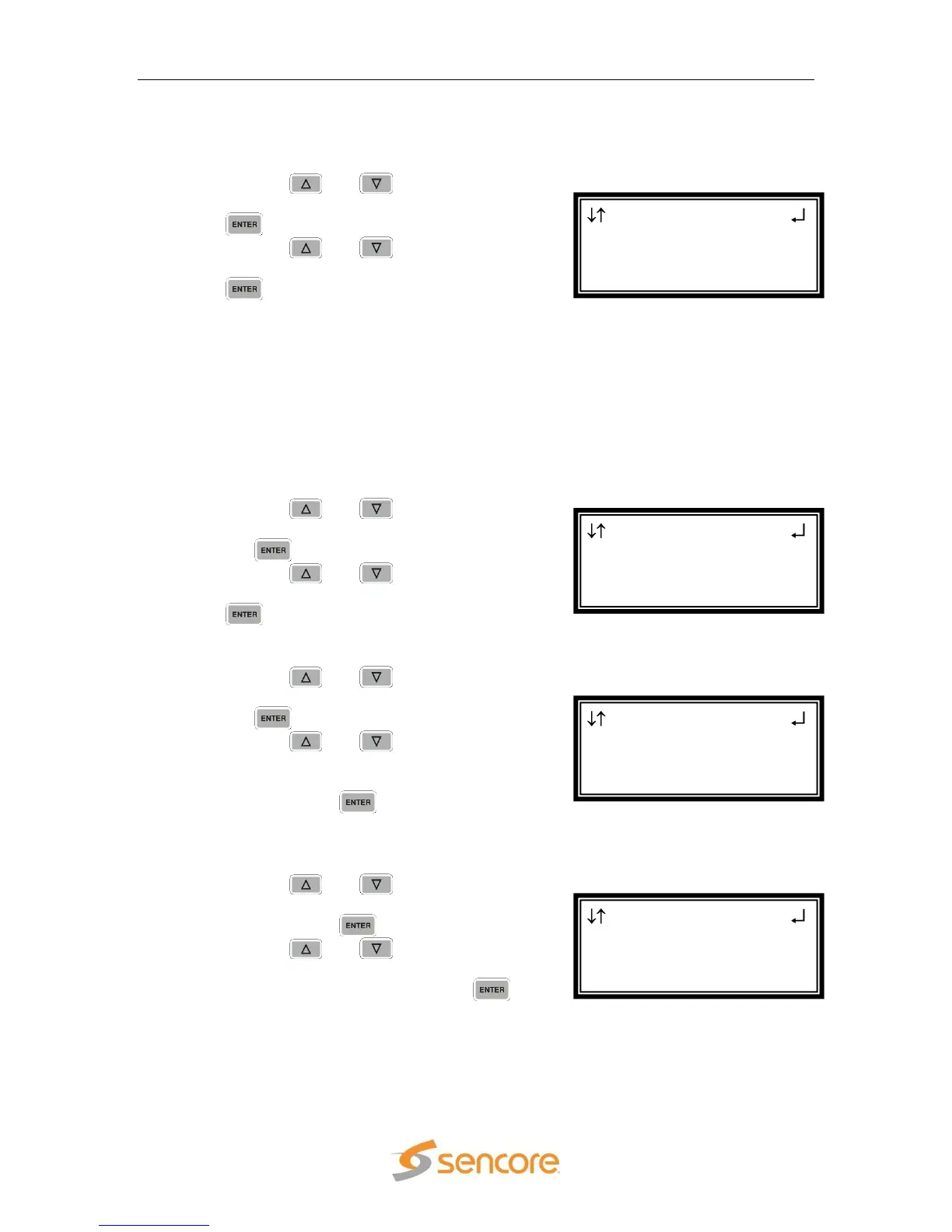

Video Format
1. Use the and buttons to move
the cursor to “Format:” then press the
button.
2. Use the and buttons to select
the appropriate format, then press the
button to save the selection.
720x480i
4x3
29.97
720x480i
16x9
29.97
720x576i
16x9
25.00
720x576i
4x3
25.00
NTSC Pedestal
When the “NTSC Ped” is enabled it applies a 7.5IRE pedestal to the black level
of the Composite video output.
1. Use the and buttons to move
the cursor to “NTSC Ped:” then press
the button.
2. Use the and buttons to enable
or disable the pedestal, then press the
button to save the selection.
Display Mode
1. Use the and buttons to move
the cursor to “Disp Mode:” then press
the button.
2. Use the and buttons to select
the appropriate display mode
(“Letterbox”, “Cropped”, “Anamorph”),
then press the button to save the
selection.
SDI Video Loss Mode
1. Use the and buttons to move
the cursor to “SDI Video Loss Mode:”
then press the button.
2. Use the and buttons to
choose between “Display Raster” or
“Disable Output”, then press the
button to save the selection.
SD Video 1-1
►SDI Video Loss Mode:
Display Raster
Auto AFD:Disabled
SD Video 1-1
NTSC Ped:Disabled
►Disp Mode:Letterbox
SDI Video Loss Mode:
SD Video 1-1
►NTSC Ped:Disabled
Disp Mode:Letterbox
SDI Video Loss Mode:
SD Video 1-1
Select Format:Manual
►Format:720x480i
4x3 29.97
