Sencore MRD 3187B - Null Stripped;Buffer; Output Control

MRD 3187B - User Manual
Page 114 (245)

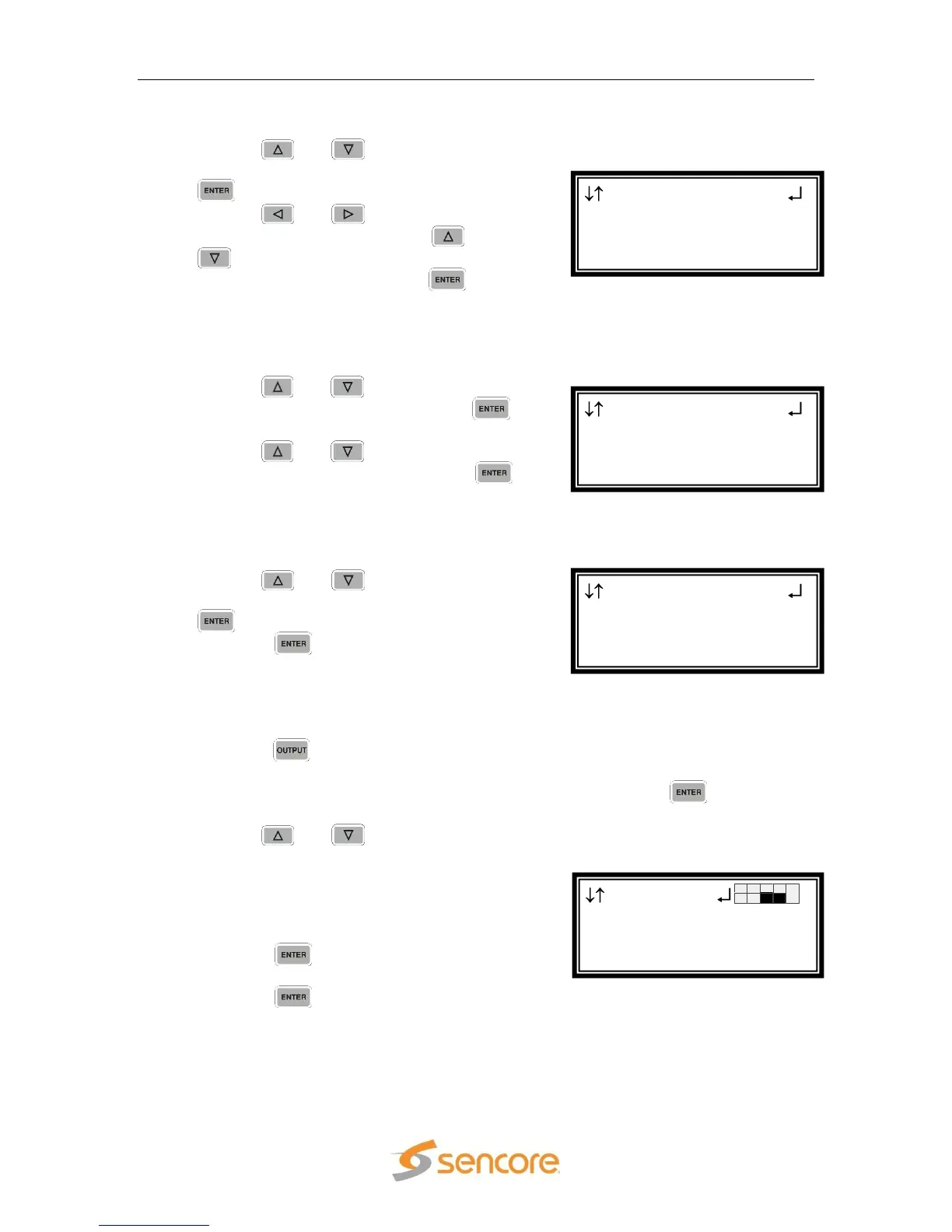

Buffer
1. Use the and buttons to move the
cursor to “Buffer Size:” then press the
button.
2. Use the and buttons to select
the column to edit and use the and
buttons to change the Buffer (from 10
ms to 600 ms), then press the button
to save the selection.
Null Stripped
This setting is used to allow the MRD 3187B to receive a null stripped IP stream.
1. Use the and buttons to move the
cursor to “Null Strip:” then press the
button.
2. Use the and buttons to enable or
disable null stripping, then press the
button to save the selection.
Reset Counters
This option will reset the counters on the status screen for the MPEG/IP card.
1. Use the and buttons to move the
cursor to “Reset Counters”, then press the
button.
2. Press the button again to reset the
counters.
Output Control
To configure this card as an output use the following steps:
1. Press the button.
Note: For Configuration 2 units, select RDS1 or RDS2, then press .
2. Use the and buttons to move the
cursor to the “MPEG/IP” card of the
specific slot (e.g. 1-3). Notice the location
diagram in the upper right corner of the
screen changes as the cursor moves by
each card.
3. Press the button once to display the
Status screen for the MPEG/IP card.
4. Press the button again to display the
Edit screen for the MPEG/IP card.
Output
HD Video 2-1
►MPEG/IP 1-3
MPEG/IP 1-3
Jitter Tol:Low
Null Strip:Disable
►Reset Counters
MPEG/IP 1-3
Buffer Size:100ms
►Null Strip:Disable
Reset Counters
MPEG/IP 1-3
Jitter Tol:Low
►Buffer Size:100ms
Null Strip:Disable
