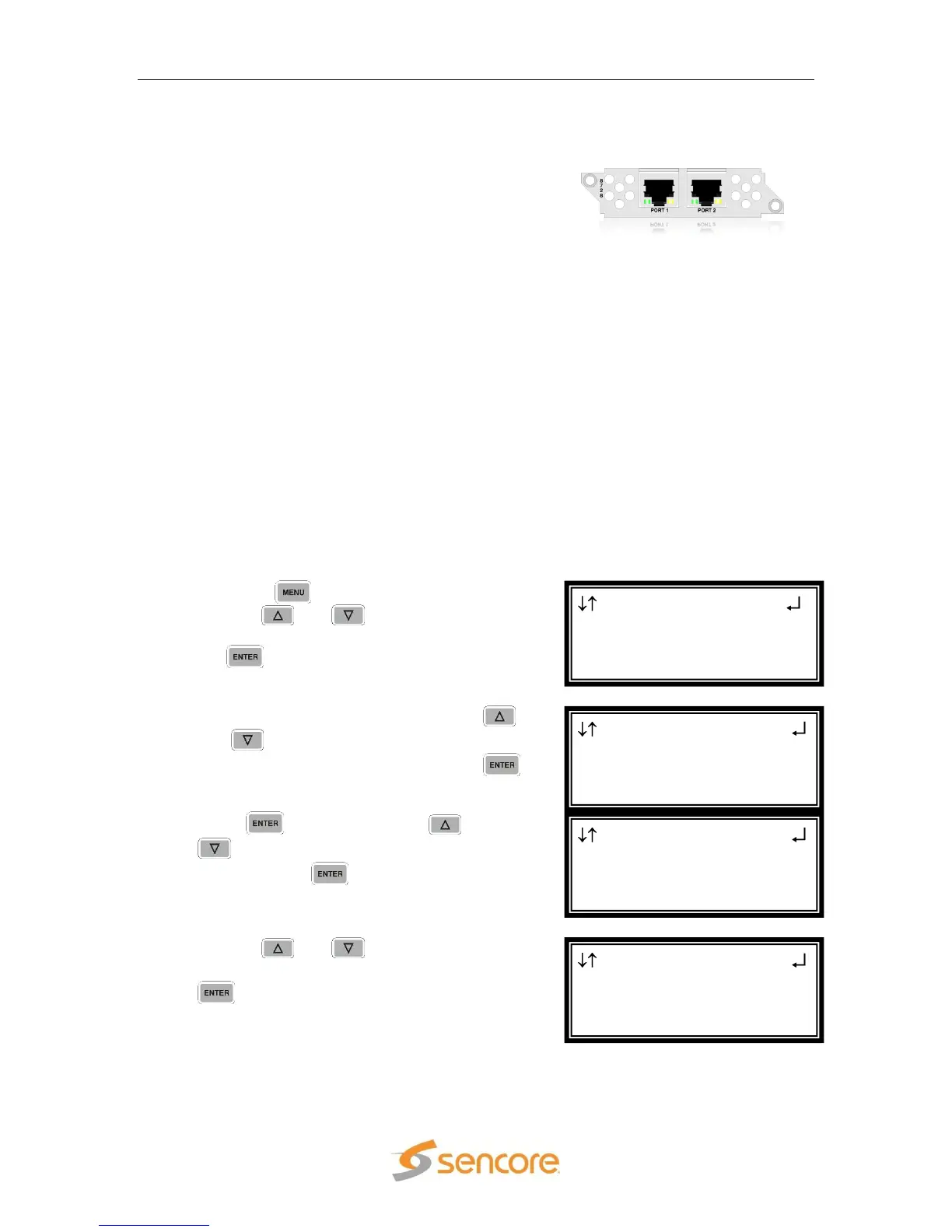

MRD 3187B - User Manual
Page 136 (245)
4.19 PID Filtering Dual MPEG over IP UDP Output – Option 8728
General Information
Install Location: Installs in 1–2 through 1–4
and/or 2–2 through 2–4.
O: (2) 10/100/1000 Auto-negotiating Base-T
RJ-45 Ethernet Port
Supported Formats: Transmit: UDP only
Description: This card supports PID filtering and automatic table modification. The 8728
output cardwill use two Ethernet connections independently to transmit MPEG2 transport
streams over IP networks from a valid input source (ASI, DVB-S2, 8727 IP input, etc.) A
multi program transport stream (MPTS) input can be reduced into as many as 5 output
transport streams. Any combination of services present in the source stream may be
selected for the output transport stream. Each output IP stream can then be routed to
one of two Ethernet ports as desired. The 8728 can also adapt the transport stream
bitrate and recalculate the PCR values in the output transport streams to be correct for
the new multiplex.
Menu Control
This menu is used to set the Default Gateway Port, configure ICMP, find the MAC
address, and setup the IP addresses, Subnet Masks, and Gateways for both ports
on the PID Filtering card. These settings need to be set to proper values for the
network that the MRD 3187B is being used on. These values can usually be
obtained from the local network administrator.
1. Press the button.
2. Use the and buttons to move the
cursor to “PID Filter IP NetCfg”, then press
the button.
1. To set Default Gateway Port, use the
and buttons to move the cursor to
“Set Default Gw Port”, then press the
button.
2. Press again and use the and
buttons to select “Port1” or “Port2”,
then press the button.
1. Use the and buttons to move the
cursor to “Set ICMP(Ping)”, then press the
button.
PID Filter IP Cfg
Port 2
Set Default Gw Port
►Set ICMP(Ping)
PID Filter 1-4 IP
► Default Gw:Port
PID Filter IP Cfg
Port 1
Port 2
►Set Default Gw Port
Menu
►PID Filter IP NetCfg
Genlock Reference
System
To Next Page
