MRD 3187B - User Manual
Page 122 (245)

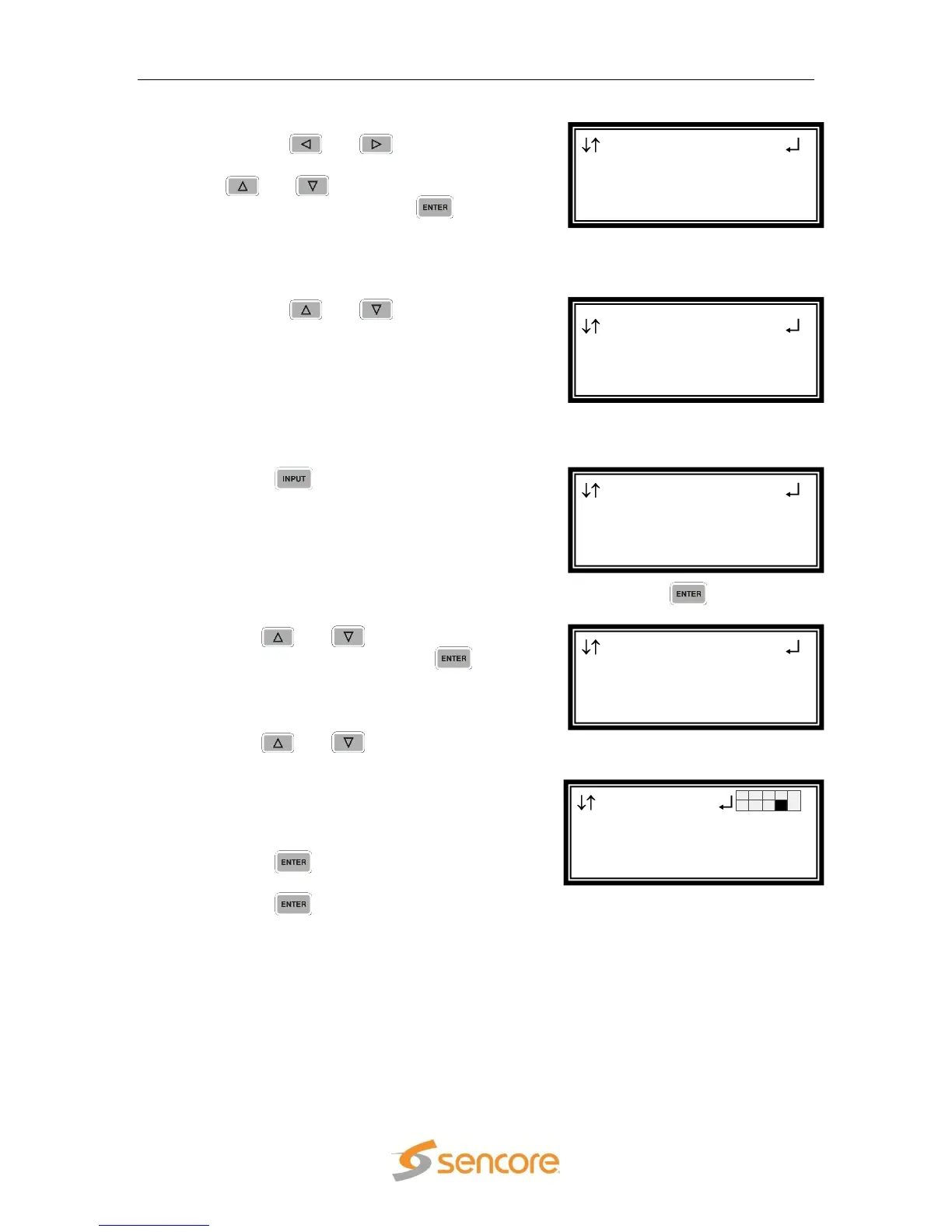

5. The cursor will now be on, “Gateway.”
6. Use the and buttons to
select the column to edit and use the
and buttons to change the
Gateway, then press the button
to save the selection.
MAC Address
This option will show the physical MAC Address of the MPEG/IP card.
1. Use the and buttons to move
the cursor to “MAC Address” to view
the MPEG/IP card‟s physical MAC
Address.
To Edit the Option Card Input Settings
To edit this input card, use the following steps:
Note: For Configuration 2 units, select RDS1 or RDS2, then press .
2. Use the and buttons to select
“Input Modules”, and press the
button.
3. Use the and buttons to move the
cursor to the “MPEG/IP” card of the
specific slot (e.g. 1-4). Notice the location
diagram in the upper right corner of the
screen changes as the cursor moves by
each card.
4. Press the button once to display the
Status screen for the MPEG/IP card.
5. Press the button again to display the
Edit screen for the MPEG/IP card.
Group Selection Settings
This section allows the user to specify which Receive Group is active (Receive 1 or
Receive 2), if one of the receive groups acts as a backup for the other receive group
(setting the “Active Group:” to “Auto”) and then setting the backup options.
The backup options assign a primary receive group, what is used to trigger the
switchover to the backup receive group, when the Primary should be restored and the
timeout before switching to the Backup or restoring to the Primary.
The MRD 3187B is usually configured to have either the MPEG/IP backup enabled or
the Input Option backup enabled, not both.
Input
►MPEG/IP 1-4
QPSK 2-2
Input
Active Input
Backup Mode
►Input Modules
Input
►Active Input
Backup Mode
Input Modules
MPEG/IP 1-4 Net
0.0.0.0
MAC Address
► 00012ABCD123
MPEG/IP 1-4 Net←→
255.0.0.0
Gateway
► 000.000.000.000
