MRD 3187B - User Manual
Page 50 (245)
Note: This menu changes depending on which overlay is set in “Overlay”.

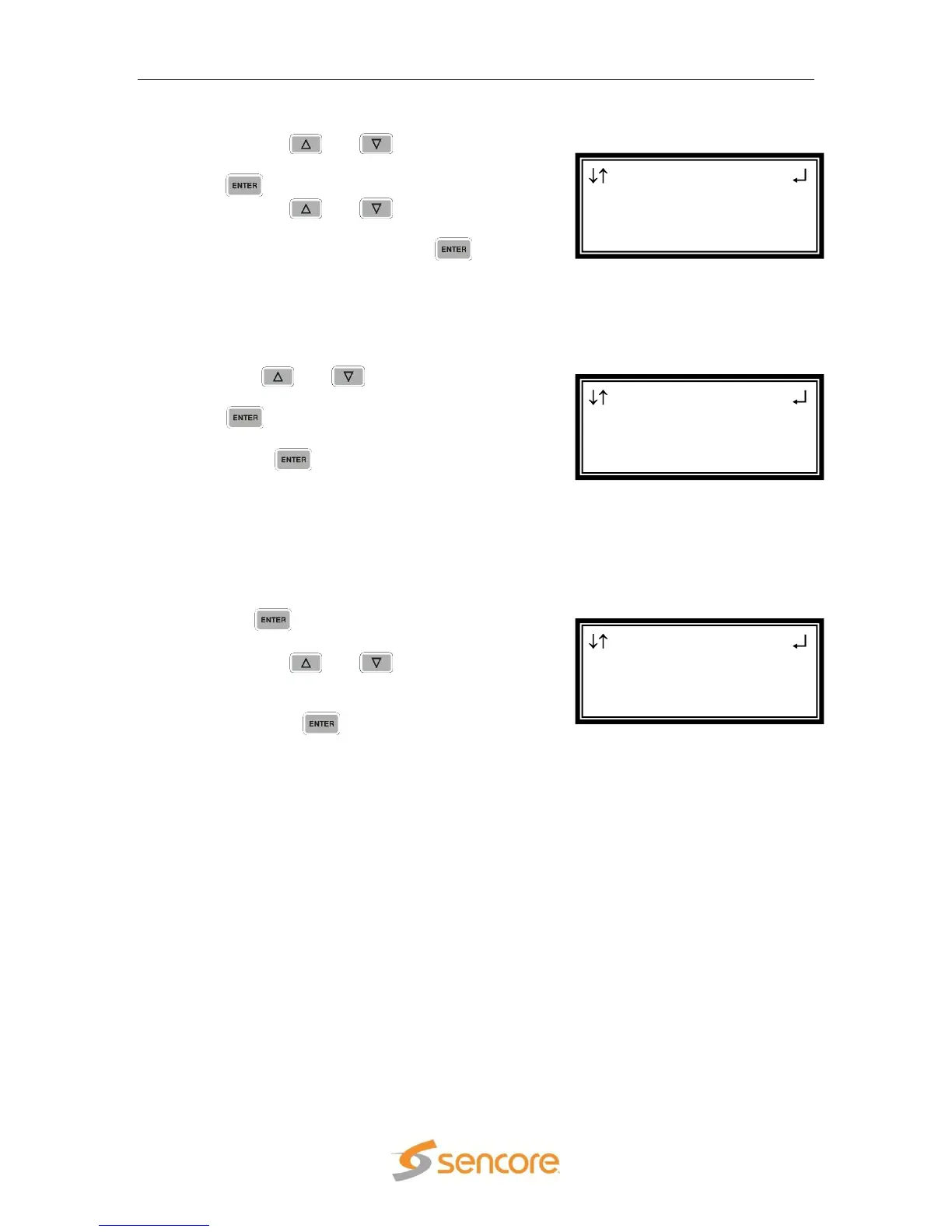

3. Use the and buttons to move
the cursor to “Lang:” then press the
button.
4. Use the and buttons to
select the language from those that
are present, then press the
button to save the selection.
Small Format Display
To setup the MRD 3187B to output a “Small Format Display”, use the following
steps:
1. Use the and buttons to move the
cursor to “Small Format Disp”, then press
the button. This shows the status
display.
2. Press the button again to change the
settings.
Format
This output format is used whenever a small format (less than 720x480 or
720x567) is received. The small format video is placed in the output format
specified here in the position defined by the “SFD Location” setting.
1. While the cursor is on “Format:” press
the button to change the display
format.
2. Use the and buttons to
change from any of the format
settings.
3. Press the button to save the
settings.
720x480i
16x9
29.97
1920x1080i
16x9
29.97
720x480i
4x3
29.97
1920x1080i
16x9
30.00
720x576i
16x9
25.00
1920x1080PsF
16x9
23.98
720x576i
4x3
25.00
1920x1080PsF
16x9
24.00
1280x720p
16x9
50.00
1920×1080p
16×9
23.98
1280x720p
16x9
59.94
1920×1080p
16×9
24.00
1280x720p
16x9
60.00
1920×1080p
16×9
25.00
1920x1080i
16x9
25.00
1920×1080p
16×9
29.97
1920×1080p
16×9
30.00
SFD 1-1
►Format:1920x1080i
16x9 29.97
SFD Location:Top-Lt
HD Video 2-1
SDI VANC Assignment
Overlay
►Small Format Disp
Overlay 1
Type:Subtitle
►Lang:------
