I te m
CD H D - 4 D 5
CD H D - 0 0 6
Crimping tool Molex 0638190000 (P1)
Crimping tool YRF-1070 (P2, P3, P4)
Extraction tool EJ-JFAJ3
Key for spring connector J-FAT-OT (supplied)
I te m
CD H D - 0 0 8
CD H D - 0 1 0
CD H D - 0 1 3
Crimping tool Molex 0638190000 (P1)
Crimping tool
YRF-1130 (P2, P3, P4)
YRF-1070 (P5)
Extraction tool
EJ-JFAJ4 (P2, P3, P4)
EJ-JFAJ3 (P5)
I te m
CD H D - 0 2 0
CD H D - 0 2 4
Crimping tool Molex 0638190000 (P1)
4 0 0 / 4 8 0 VAC Models
I te m
CD H D - 0 0 3
CD H D - 0 0 6
CD H D - 0 1 2
CD H D - 0 2 4
CD H D - 0 3 0
Crimping tool
Molex 0638190000 (P1, P2)
(also P3 on CDHD-024/ 030)
Crim pin g

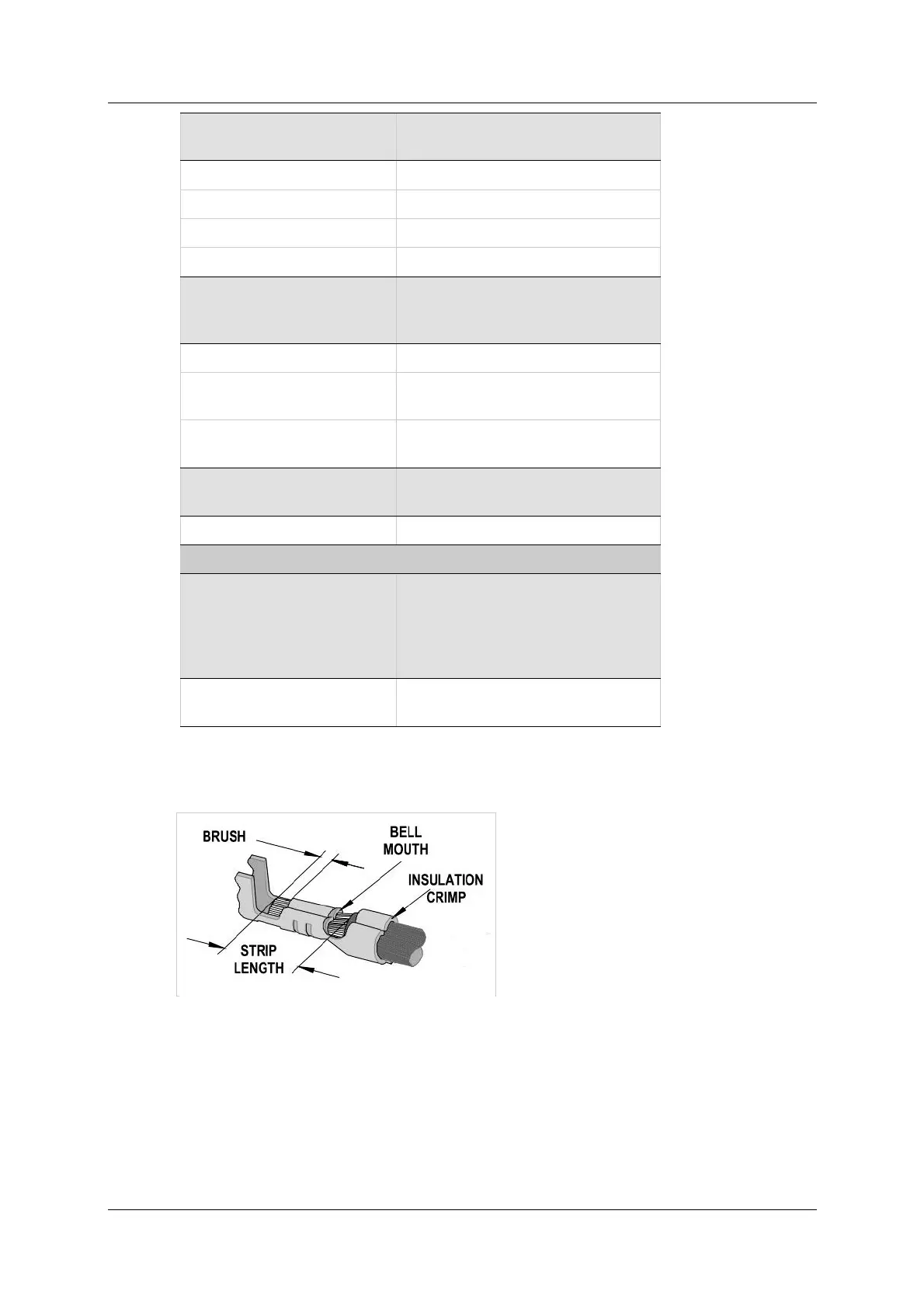

Prior to crimping, strip 2 mm at the end of wire, as shown in Figure 5-1.
Figur e 5 - 1 . Strippe d W ir e in Cr im p Pin
I n addition, you will need:
 A small slotted screwdriver for sett ing switches.
 M4 ring or spade terminal for grounding.
