Functions
7.14 Reflexor
FUS1010 IP65 NEMA 4X & IP66 NEMA 7
Operating Instructions, 01/2013, A5E02951520-AC
143
AB

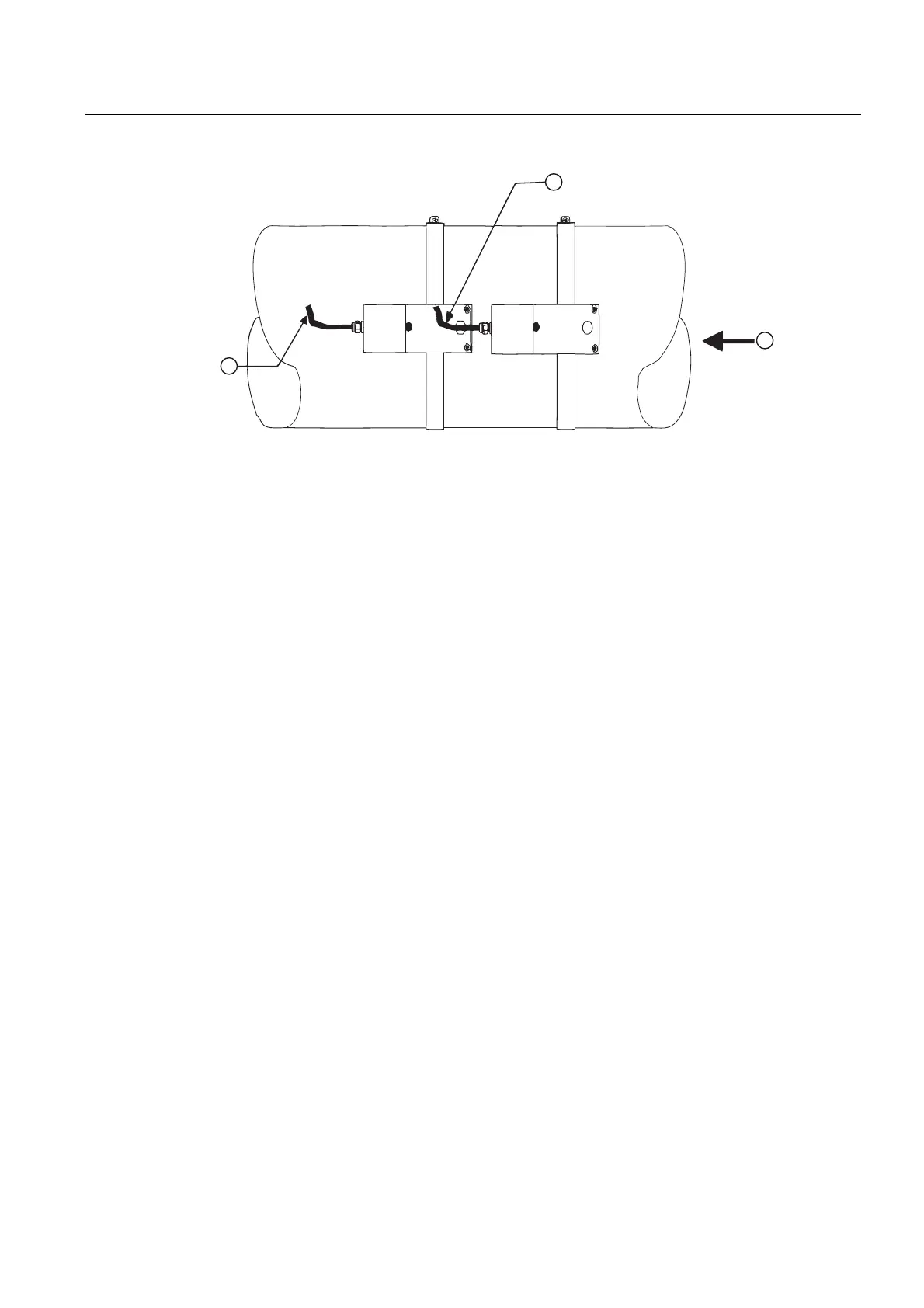

① Connect to DN on flow meter for metal
pipe (Receive) / Connect to UP on flow
meter for plastic pipe (Transmit)
② Connect to UP on flow meter for metal
pipe (Receive) / Connect to DN on flow
meter for plastic pipe (Transmit)
③ Flow Direction
Figure 7-4 In-Line Sensor Mounting
Connecting Sensor Cables
Connect sensor cables between the sensors and the flow meter. The XMIT (transmit) sensor
is connected to the Up cable connection and RCV (receive) sensor is connected to the Down
cable connection. The UP/DN orientation is important for the in-line sensor configuration. It is
not a factor for the adjacent configuration.
Select Reflexor Operating Mode
Select [Meter Type] as [Reflexor] for the channel that is to be used as Reflexor. Dual channel
units may have either one or both channels used in the Reflexor mode.
