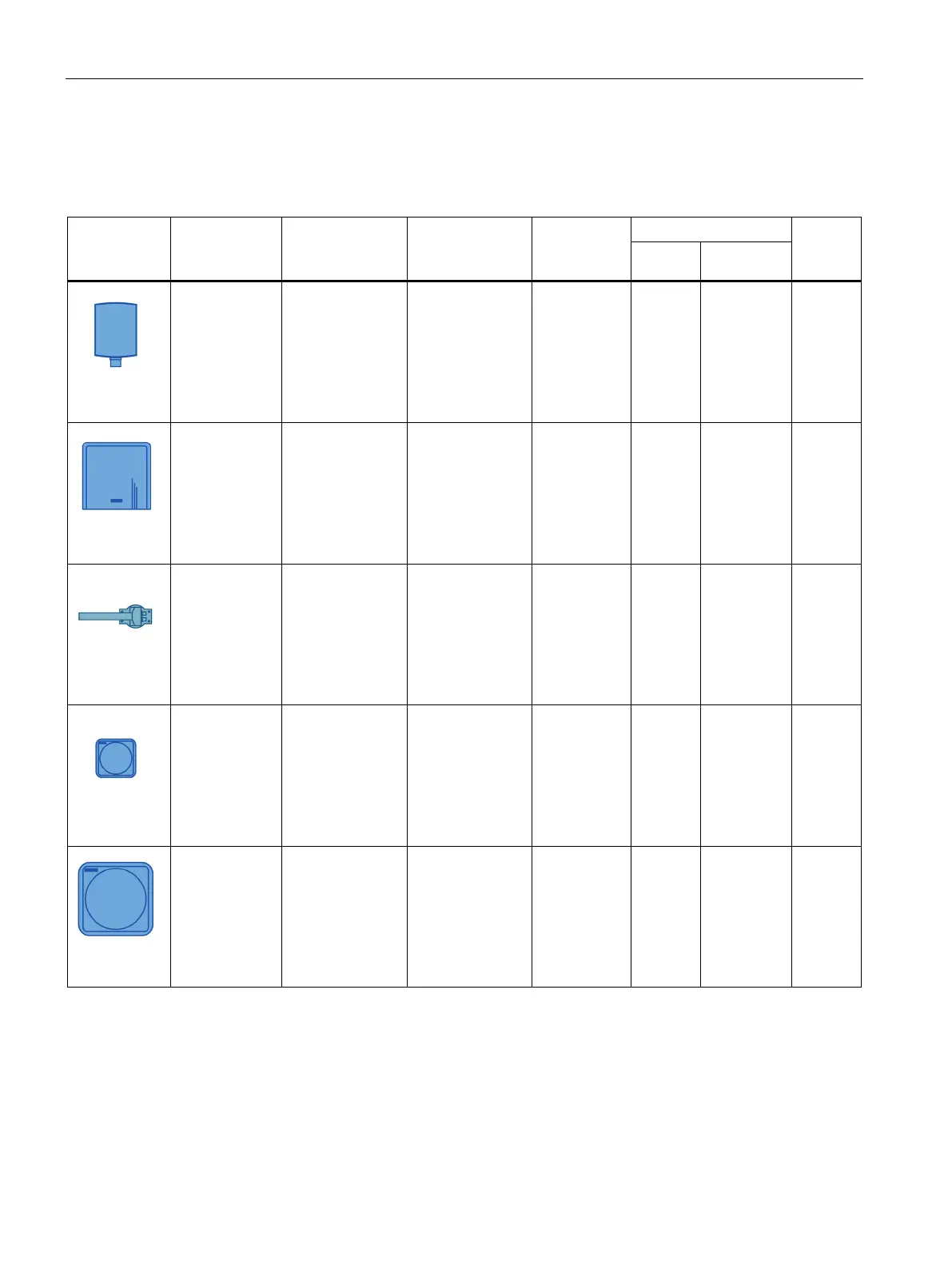

Table 4- 7 Antennas with strong directionality
Device type
Horizontal
radiation angle/
characteristics
Antenna gain 2.4
GHz / dBi
Antenna gain
5 GHz / dBi
Connection
Mounting
Degree
of pro-
tection
Direct
Detached
ANT793-8DP
40° - 13.5 dBi 1x N-
Connect
female
- ● IP66/67
ANT792-8DN
35° 14 dBi - 1x N-
Connect
female
- ● IP23
ANT793-8DL
30° - 14 dBi 2x N-
Connect
female
- ● IP66/67
ANT793-8DJ
17°
1)
- 18 dBi 2x N-
Connect
female
- ● IP67
ANT793-8DK
9°
1)
- 23 dBi 2x N-
Connect
female
- ● IP67
1)
In the 5 GHz frequency band
