SCALANCE network components
4.6 SCALANCE W components for the Industrial Wireless LAN
Industrial Ethernet
System Manual, 09/2019, C79000-G8976-C242-10
239

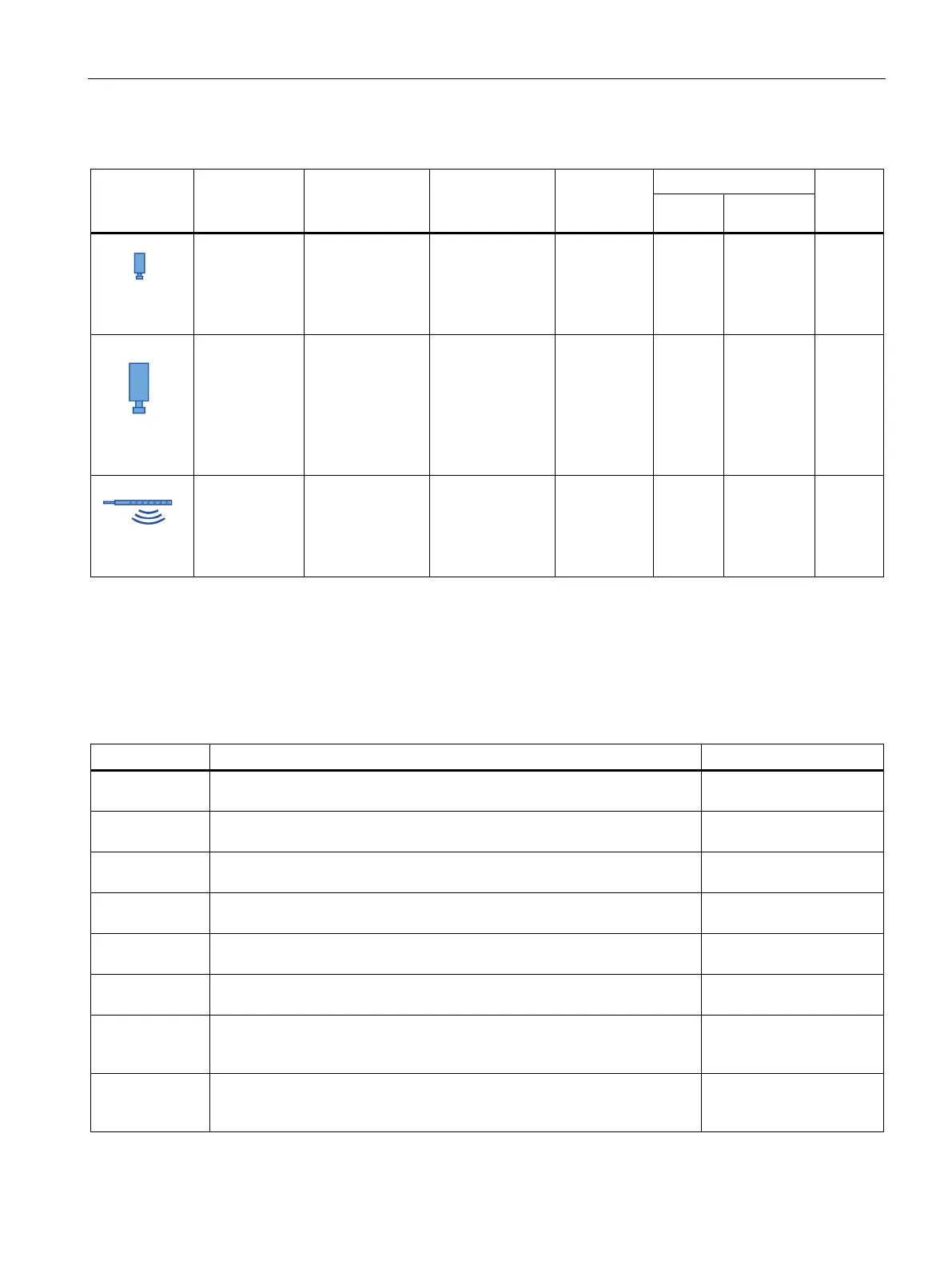

Table 4- 8 RCoax antennas for SCALANCE W-700 IWLAN RCoax cable according to IEEE802.11a/b/g/n
Device type
Horizontal
radiation angle/
characteristics
Antenna gain 2.4
GHz / dBi
Antenna gain
5 GHz / dBi
Connection
Mounting
Degree
of pro-
tection
Direct
Detached
ANT792-4DN
90°
1)
4 dBi - 1x N-
Connect
female
- ● IP65
ANT793-4MN
360°
2)
- 6 dBi 1x N-
Connect
female
- ● IP65
RCoax cable
- - - - - ● IP65
1)
In the 2.4 GHz frequency band
2)
In the 5 GHz frequency band
Article numbers
Omnidirectional antennas
Designation
Description
Article number
ANT795-4MA
1)
Antenna gain incl. connector 3 / 5 dBi for 2.4 GHz / 5 GHz, IP30, radially
rotatable, with extra joint, R-SMA male
6GK5795-4MA00-0AA3
ANT795-4MB
1)
Antenna gain incl. connectors: 2 / 3 dBi for 2.4 GHz / 5 GHz, IP65, radially
rotatable, with extra joint, R-SMA male
6GK5795-4MB00-0AA0
ANT795-4MC
1)
Antenna gain incl. plug 3 / 5 dBi for 2.4 GHz / 5 GHz, IP65 (-
20 °C to +65 °C), straight connection, N-Connect male
6GK5795-4MC00-0AA3
ANT795-4MD
1)
Antenna gain incl. plug 3 / 5 dBi for 2.4 GHz / 5 GHz, IP65 (-
20 °C to +65 °C), connection with fixed 90° angle, N-Connect male
6GK5795-4MD00-0AA3
ANT795-4MX
1)
Antenna gain incl. N-Connect plug 2 / 2.5 dBi for 2.4 GHz / 5 GHz, IP69K (-
40 °C to +85 °C)
6GK5795-4MX00-0AA0
ANT795-6MP Antenna gain incl. N-Connect plug 5 / 7 dBi for 2.4 GHz / 5 GHz, IP67 (-
40 °C to +80 °C), incl. installation fittings
6GK5795-6MP00-0AA0
ANT792-6MN Antenna gain incl. N-Connect plug 6 dBi for 2.4 GHz, IP65 (-
40 °C to +80 °C); with terminating resistor 1 x TI795-1R; incl. installation
fittings
6GK5792-6MN00-0AA6
ANT795-6MN Antenna gain incl. plug 6/8 dBi for 2.4 GHz / 5 GHz, IP65 (-
40 °C to +80 °C); with terminating resistor
1 x TI795-1R
6GK5795-6MN10-0AA6
