7.2 CP 1616
Industrial Ethernet
302 System Manual, 09/2019, C79000-G8976-C242-10
7.2 CP 1616
Description

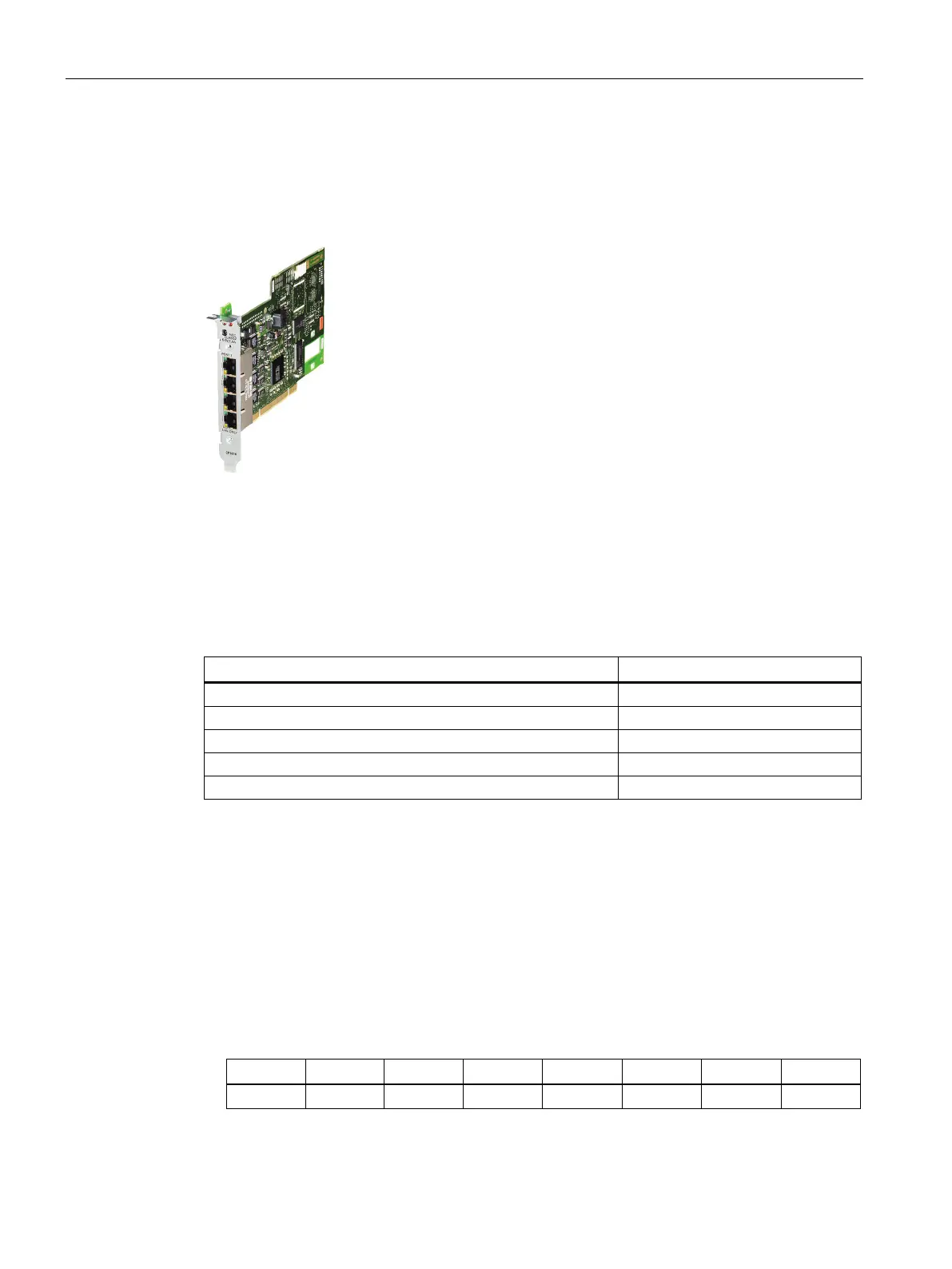

Figure 7-3 CP 1616
The CP 1616 is a PCI card with its own microprocessor and an integrated 4-port switch for
connecting PCs and SIMATIC PGs/PCs to PROFINET IO. The module universal keyed 3.3
V and 5 V; 33 MHz / 66 MHz; 32-bit, can operate in 64-bit PCI-X systems)
Features
CP 1616
Required slot on the PC
PCI
Number and type of the interfaces for Industrial Ethernet
4x RJ45
Gigabit Ethernet
-
Own microprocessor
●
Optional external power supply 6 ... 9 VDC
●
Functions
● Up to 128 connections can be configured at one time
● Transmission rates 10/100 Mbps (half/full duplex)
● Autosensing, autocrossover and autonegotiation
● IRT (Isochronous Real Time)
● Network management and diagnostics using SNMP
● Supported protocols:
ISO
TCP/UDP
PN
MRP
OPC
PG/OP
S7/S5
IT
●
●
●
● Suitable / available or according to the specified standard
