Communications processors for PCs
7.3 CP 1623
Industrial Ethernet
System Manual, 09/2019, C79000-G8976-C242-10
303
Article numbers
CP 1616 PCI-104 card (32-bit; 3.3 / 5 V universal keyed) with ASIC
ERTEC 400 for connecting PCs to PROFINET IO with 4-port
real-time switch (RJ45); including IO-Base software for
PROFINET IO controller and NCM PC
6GK1161-6AA02
7.3 CP 1623
Description

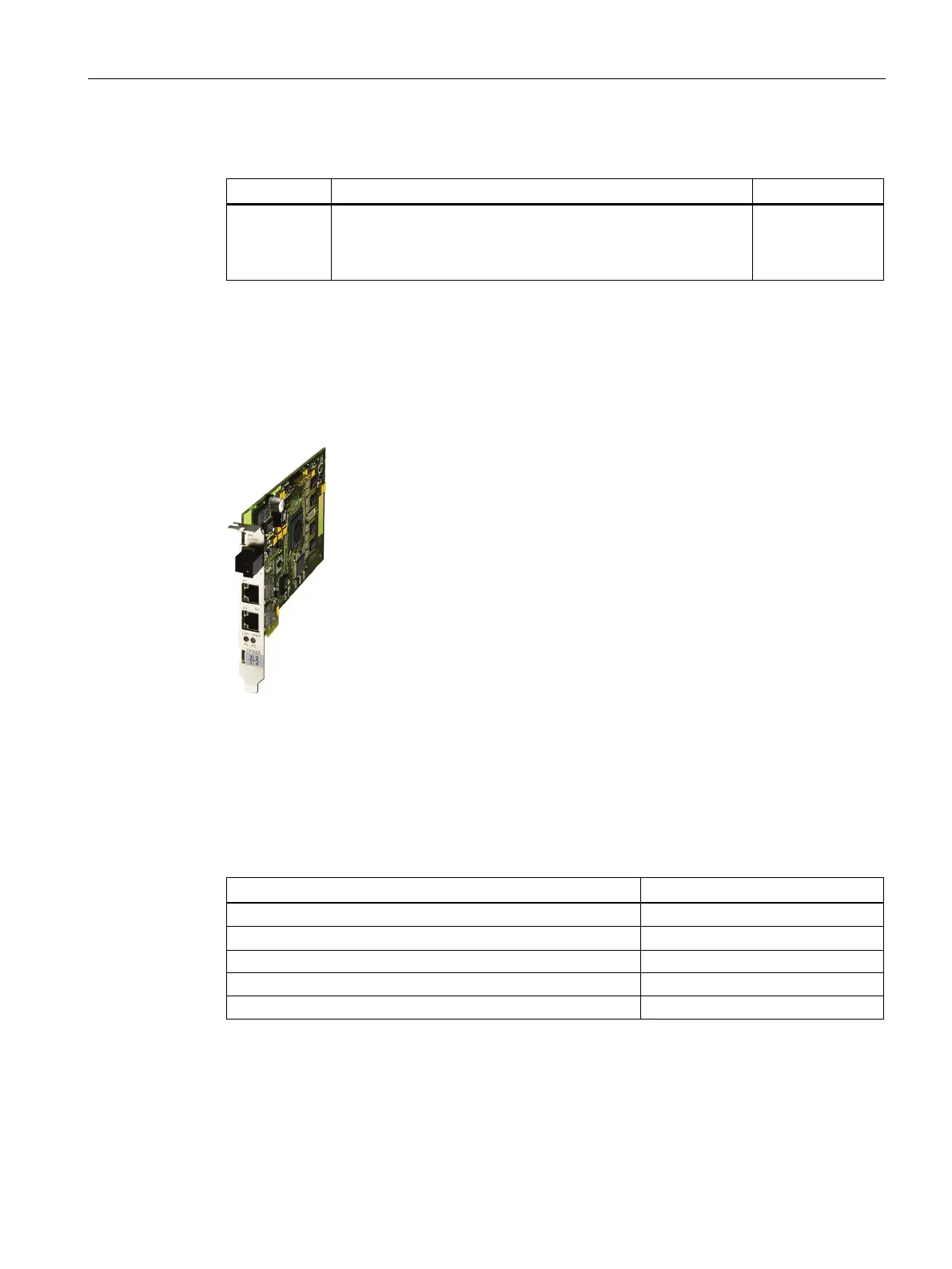

Figure 7-4 CP 1623
The CP 1623 is a PCI Express card with its own microprocessor and integrated 2-port switch
for connecting PCs and SIMATIC PGs/PCs to Industrial Ethernet. PNIO is not supported by
this module.
Features
Number and type of the interfaces for Industrial Ethernet 2x RJ45
Optional external power supply 12 ... 24 VDC
Functions
● Up to 120 connections can be configured at one time
● Transmission rates 10/100/1000 Mbit/s (half/full duplex)
