Communications processors for PCs
7.4 CP 1626
Industrial Ethernet
304 System Manual, 09/2019, C79000-G8976-C242-10
● Autosensing, autocrossover and autonegotiation
● Time-of-day synchronization
● SNMP-supported diagnostics
● Supported protocols:
● Suitable / available or according to the specified standard
Article numbers
CP 1623 PCI Express x1 card for connection to Industrial Ethernet (10 /
100 / 1000 Mbps), with 2-port switch (RJ-45) via HARDNET-IE
S7 /S7-1613 and S7 REDCONNECT;
Support of operating systems according to the SIMATIC NET
6GK1162-3AA00
7.4 CP 1626
Description

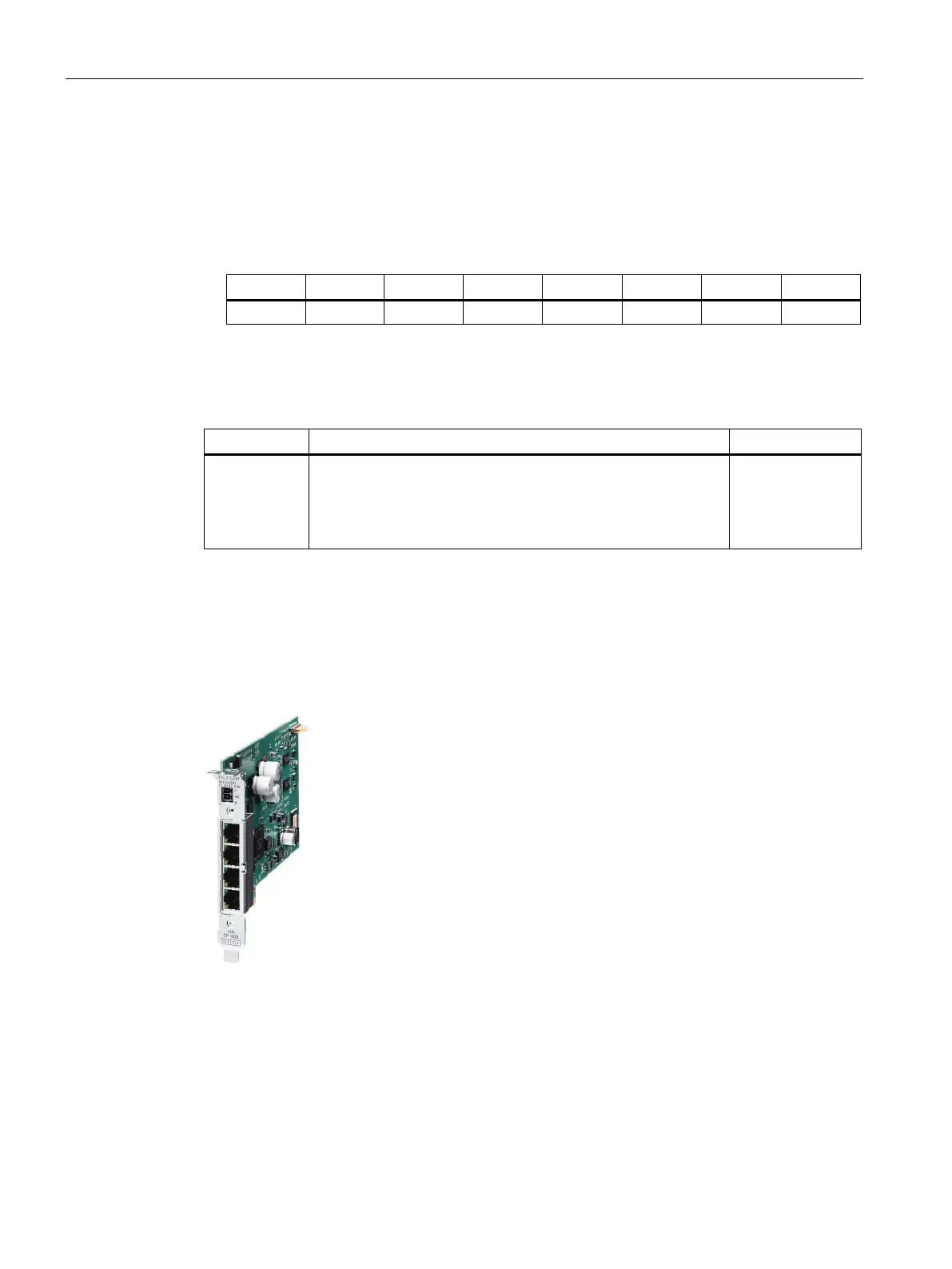

Figure 7-5 CP 1626
The CP 1626 is a PCI Express card with its own microprocessor and two integrated 2-port
real-time switches for connecting PCs and SIMATIC PG/PC to PROFINET IO.
The module is designed for the operating voltage 3.3 V / 12 V via PCI. External 12 - 24 V DC
power supply to allow operation of switches when the PC/PG is turned off.
