8.8 Communication processors for SIMATIC ET 200SP
Industrial Ethernet
340 System Manual, 09/2019, C79000-G8976-C242-10
Examples of a topology
The figure shows an application example for connection to a higher-level network and the
network separation of automation cells:

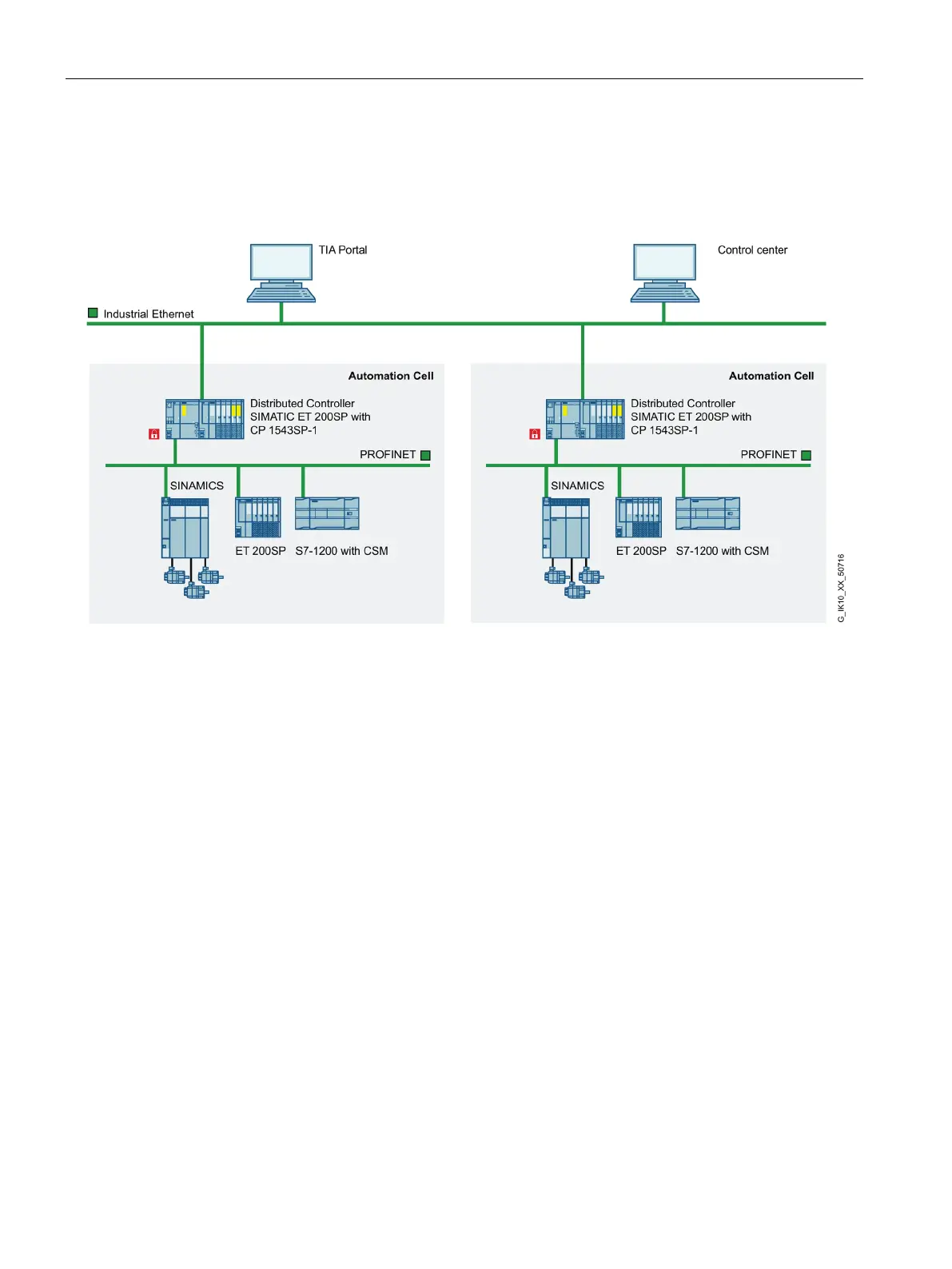

Figure 8-16 Example of a topology: Network separation and access protection with CP 1543SP-1
The figure shows an application example for the connection of TeleControl stations on the
basis of S7-1500 to a TeleControl control center.
