8.8 Communication processors for SIMATIC ET 200SP
Industrial Ethernet
System Manual, 09/2019, C79000-G8976-C242-10
341

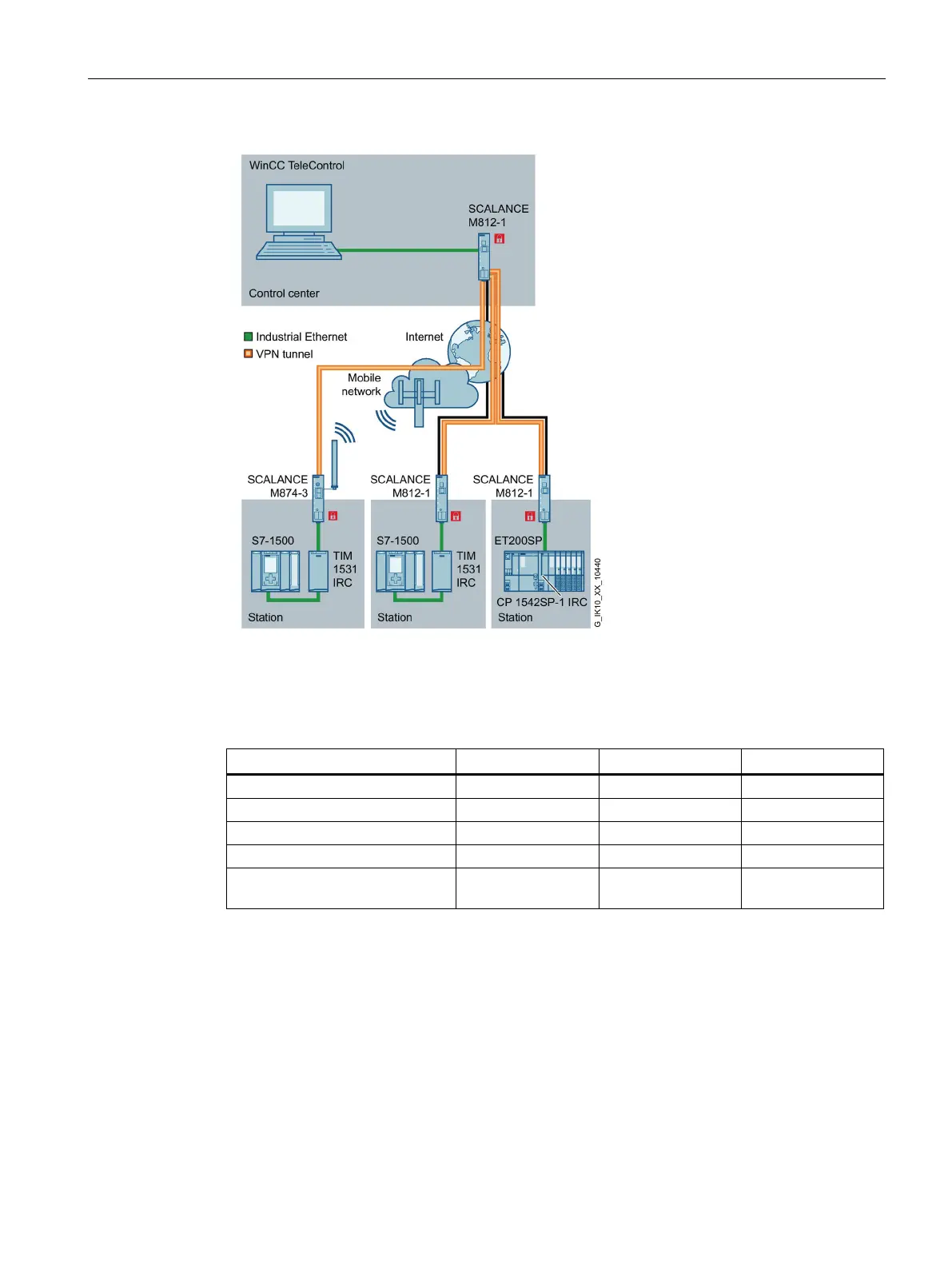

Figure 8-17 Example of a topology: Using the CP 1543SP-1IRC in TeleControl applications
Features
CP 1542SP-1
CP 1542SP-1 IRC
CP 1543SP-1
External power supply 24 V DC
●
●
●
Connections Industrial Ethernet
1x RJ45
1x RJ45
1x RJ45
Integrated switch
●
●
●
Gigabit interface
-
-
-
Number of active connections for
multiprotocol mode
32 32 32
