Step 1: Specify setpoint output

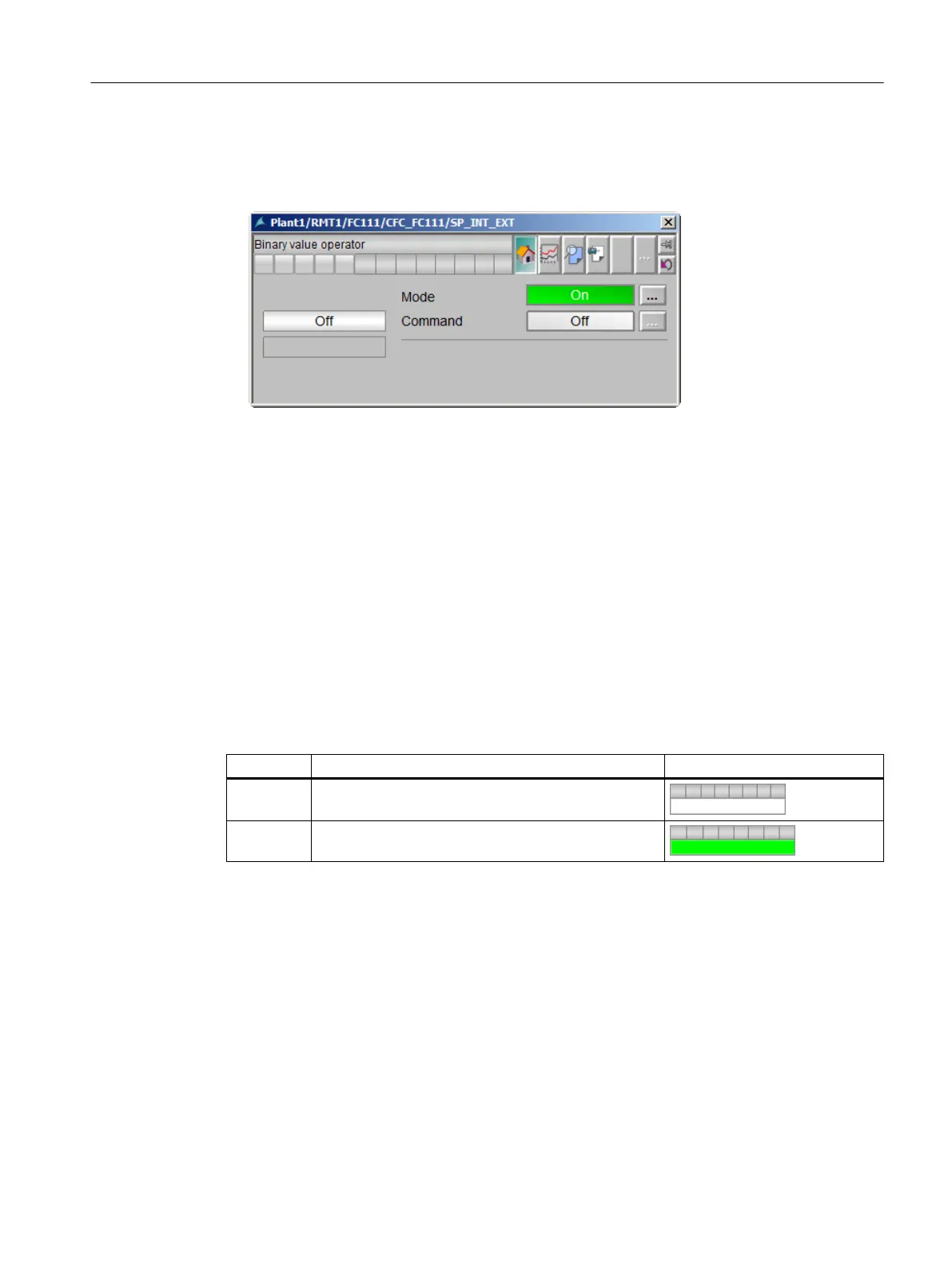

1. Click on the "SP_INT_EXT" block icon.
The associated faceplate opens.
2. In the Command row, click the "..." button on the far right.
3. Check which setpoint is enabled:
– Setpoint selected internally: "Off" command
– Setpoint selected externally: "On" command
If you want to select the other setpoint, proceed as follows:
– In the Command row, click the "..." button on the far right.
The faceplate is expanded.
– Click "On" if the setpoint should be selected by an external source.
4. Click "OK".
The new value is applied and displayed in the faceplate.
5. Close the faceplate.
Result:
Command Setpoint default Block icon
"Off" Setpoint selected internally
"On" Setpoint selected externally
Working in runtime
10.2 Operator control and monitoring in process mode
