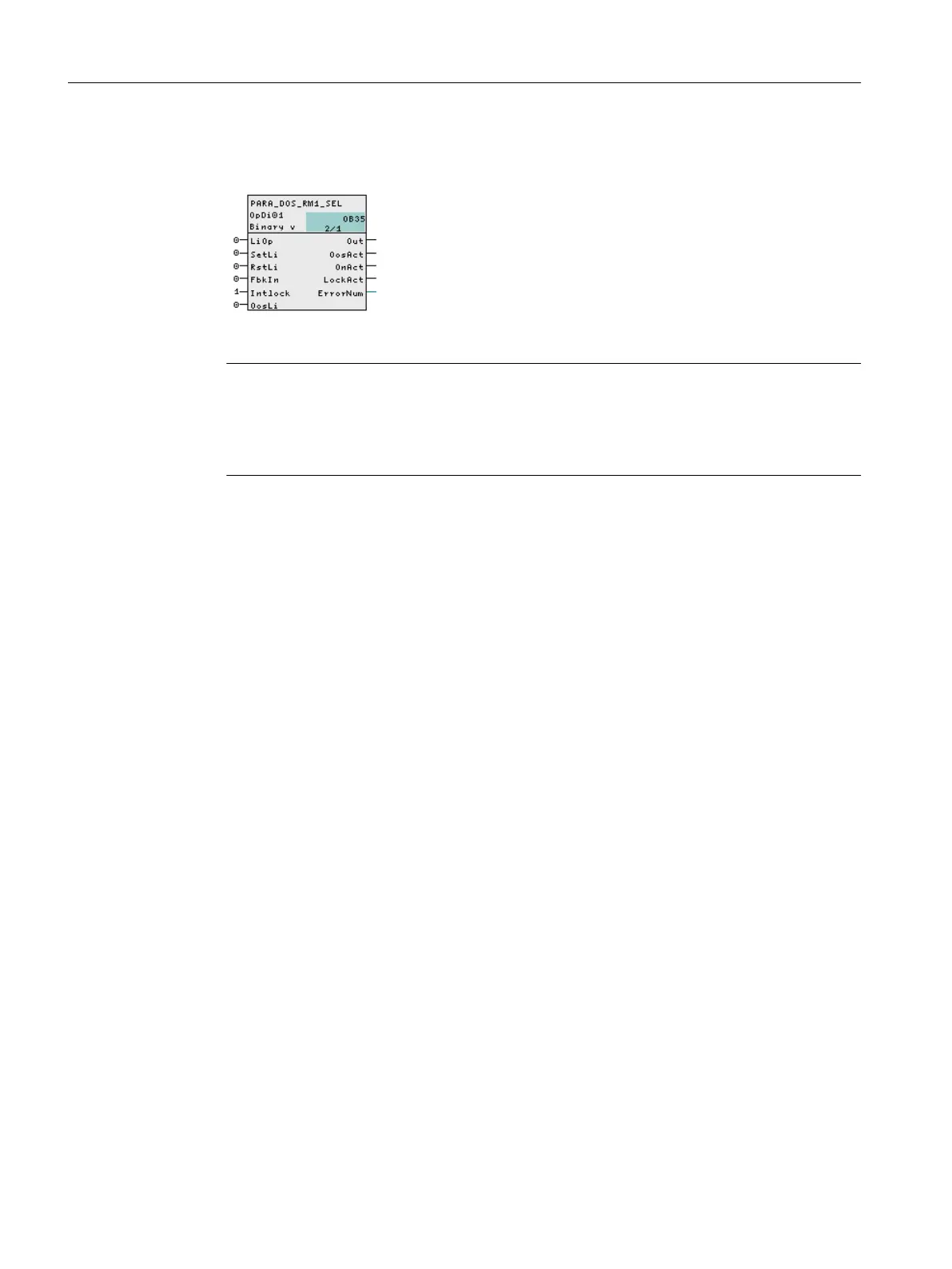

3. Drag and drop the "OpDi01 - FB1866" block to the CFC. It is used to select the reactor
where the raw material is pumped.
4. Close the chart.
Note
If a block is displayed in pink color after you have inserted it and if no block I/Os are
displayed, it is covering an underlying block or extends beyond the edge of the sheet. In
this case, you must move the block with the mouse so that it does not cover any other block
and is within the sheet limits.
6.6.8 Assigning parameters for the blocks in "CFC_SETP"
Prerequisites
● The "CFC_SETP" CFC is open in the CFC Editor and is saved in the "color_gs_prj_MP\
color_gs_prj_Prj\Plant1\RMT1\FC111\ADDIT" folder.
● All blocks are inserted.
Creating CFCs
6.6 Working with the CFC Editor
PCS 7 SMART Getting Started - Part 1 (V9.0 with APL)
82 Getting Started, 12/2017, A5E42181435-AA
