Procedure
1. Drag and drop the following blocks:
– "Channel" folder: Pcs7AnIn - FB1869: Signal processing of an analog input value.
– "Dosage" folder: DoseL - FB1809: Dosing of raw material.
– "Math" folder: Mul04 - FC360: Multiplies input values and returns the result at the output.
– "Control" folder: PIDConL - FB1874 : Fill level monitoring and visualization of the level
in the process mode.
– "Channel" folder: Pcs7AnOu - FB1870: Processes an analog output value signal.
– Folder "Operate": OpDi01 - FB1866: Manipulating a digital value.

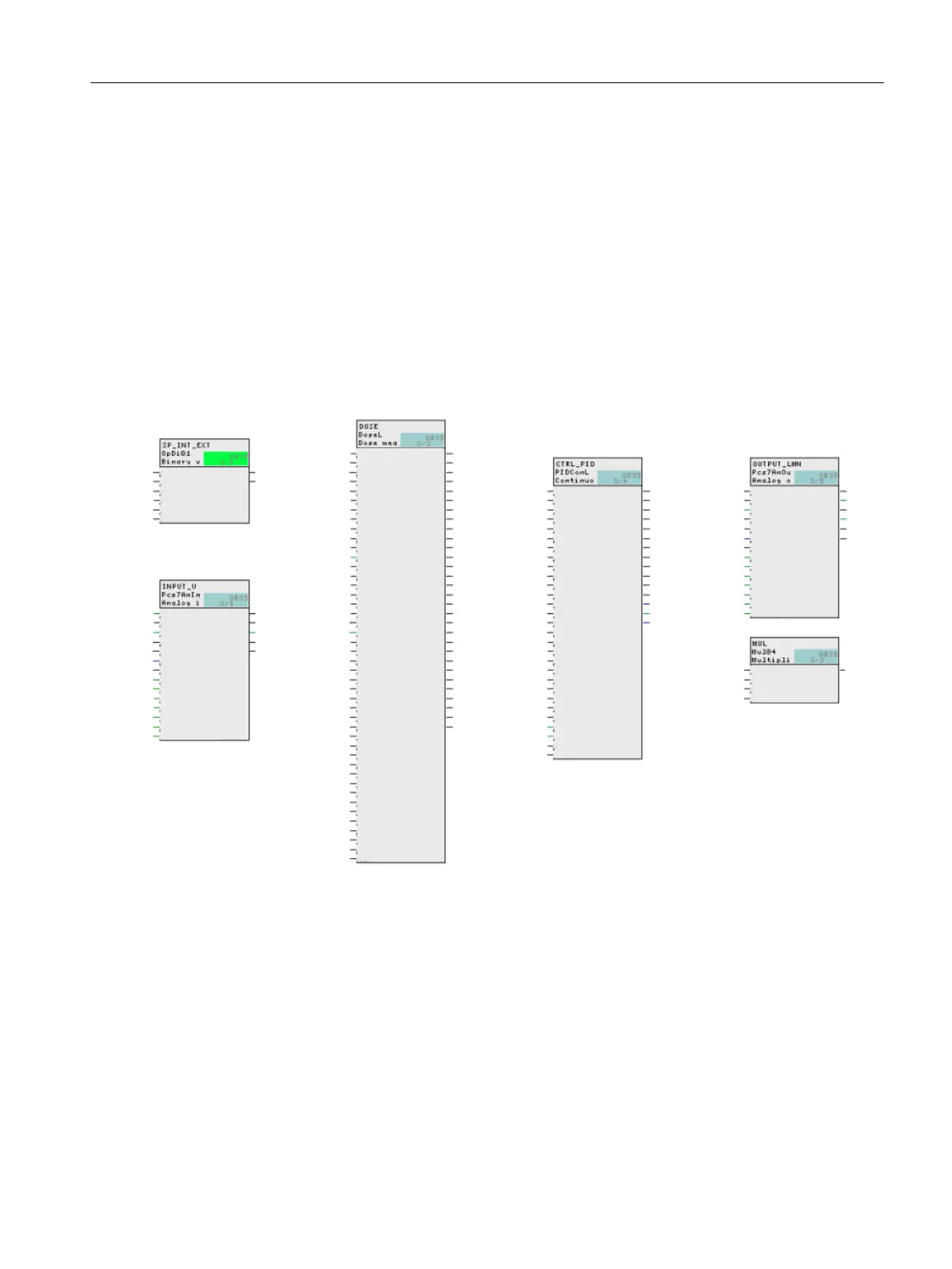

2. Arrange the blocks in the CFC as shown below:
3. Close the chart.
6.6.10 Assigning parameters for the blocks in the "CFC_FC111"
Prerequisites
● The "CFC_FC111" CFC is open in the CFC Editor -
Save in folder: "color_gs_prj_MP\color_gs_prj_Prj\Plant1\RMT1\ FC111\".
● All blocks are inserted.
Creating CFCs
6.6 Working with the CFC Editor
PCS 7 SMART Getting Started - Part 1 (V9.0 with APL)
Getting Started, 12/2017, A5E42181435-AA 85
