Procedure
1. Select the "color_gs_prj_Lib\Process tag types\Valve_Lean" object in the tree view.
2. Select Options > Process Objects > Select I/Os.

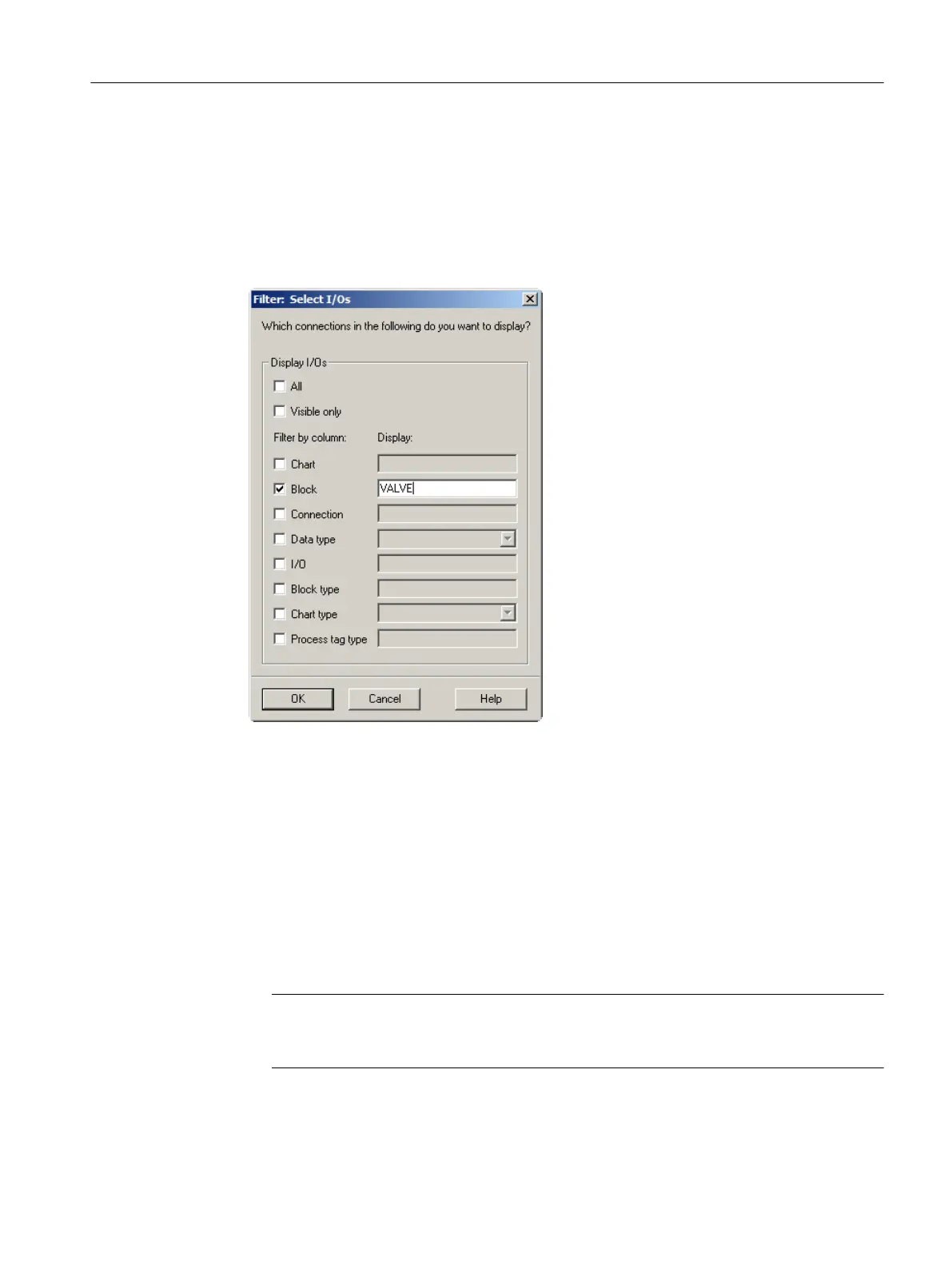

The "Filter: Select I/Os" dialog box opens.
3. Enable the "Block" check box and enter "VALVE" in the input box.
By making this setting, only "VALVE" block connections will be shown.
4. Click "OK".
The "Select I/Os" dialog box opens.
5. Click the column header of the "Parameter" column.
This will display all connections in the upper lines that are activated in the "Parameters"
column.
6. Deactivate all the checkboxes.
7. Activate the checkboxes in the "Parameters" column for the following I/Os:
– AutModLi
– Feature.Bit16
– Monitor
Note
If you click on the title of the "I/O" column, the I/Os are sorted in ascending or descending
order. This makes it easier to find what you are looking for.
Creating CFCs
6.7 CFCs in the process object view
PCS 7 SMART Getting Started - Part 1 (V9.0 with APL)
Getting Started, 12/2017, A5E42181435-AA 99
