Siemens simovert masterdrives

Function diagram
87654321
fp_mc_839c_e.vsd
Technology option
MASTERDRIVES MC
01.07.03

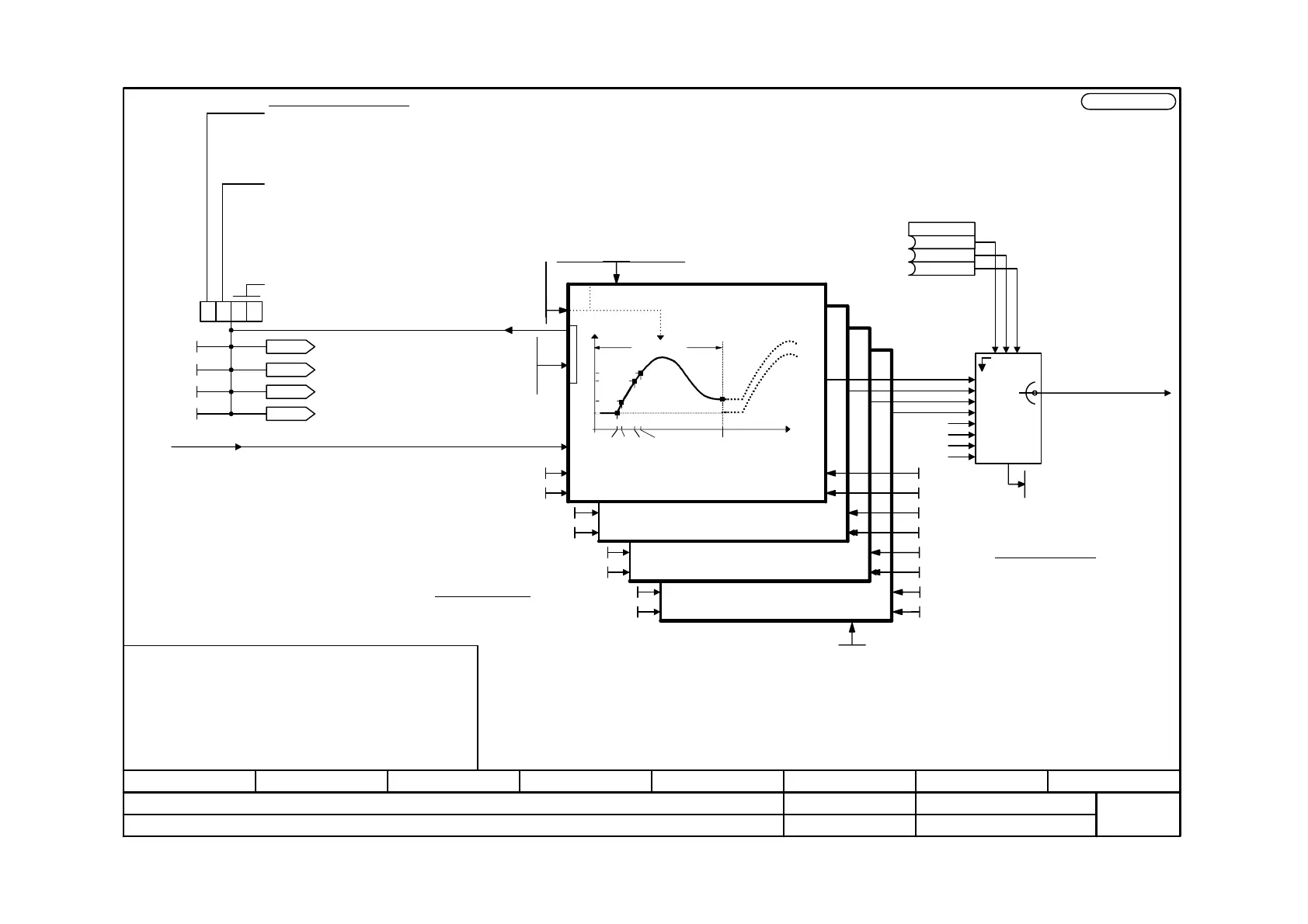

Mode of Operation Synchronism - Cam 4 tables with 100 points each
- 839c -
(for sheet [834] ...[843])
see [331.3]
Status of the table last checked
0 = No error
1 = Number of support points = 0
2 = Support value > Table width
3 = Ascending sequence of support
values for X axis violated
Y
X
1
2
3
4
Y1
Y2
Y3
Y4
X1 X2 X3
X4
X_max
Relative
(U616 = xxx1)
Absolute
(U616 = xxx0)
U620, U629
Cam
1...50 = Index .01 ... .50 of the
last error-free support
values
1 = U630 defective
2 = U631 defective
3 = U640 defective
4 = U641 defective
5 = U632 defective
6 = U633 defective
7 = U642 defective
8 = U643 defective
T HZE
Support point, X axis:
0 ... 2
31
-1 [LU]
Support points, Y axis:
-2
31
...2
31
-1 [LU]
Status, table
<2>
<2>
<1>
n668.x
<1> U617.x = 0 : Table OK
U617.x = 1 : Table has been changed and not yet checked or
the check found an error (error status in n668.x)
U617.x = 2 : Check command for table; if the table is OK,
the value "0" is automatically entered in U617 as an ack-
nowledgement; if the table is not OK, U617 jumps back
to the value "1"
U617.x =10: Table not present
<2> Can only be changed when curve cam is not selected
<2>
Cam input
X
X101-X150
X1-X50
X51-X100
X151-X200
X201-X250
X251-X300
X301-X350
X351-X400
Table 1
Table 2
Table 3
Table 4
Y1-Y50
Y51-Y100
Y101-Y150
Y151-Y200
Y201-Y250
Y251-Y300
Y301-Y350
Y351-Y400
[836.1]
<2>
<2>
<2>
Table configuration
0 = One table with 400 points (Table 1 {X1-X400})
1 = Two tables with 200 points each (Tables 1 {X1-X200} and 2 {X201-X400})
2 = Four tables with 100 points each (Tables 1, 2, 3, and 4)
3 = Eight tables with 50 points each (Tables 1 ... 8)
4 = Variable with up to 8 tables with a total of 400 support points
V2.5
[TABLE_NO] 0 = Table 1
1 = Table 2
2 = Table 3
3 = Table 4
4 = Table 5
5 = Table 6
6 = Table 7
7 = Table 8
0
7
6
5
4
3
2
1
222
210
Y
Cam
output
[835.4]
U953.33 = ___(20)
U615. (1) = 2
KK0810 Status, table 1
KK0811 Status, table 2
KK0840 Status, table 3
KK0841 Status, table 4
B
U650 (0)
.01
B
.02
B
.03
Table width X_max
0...2
31
-1 LU
U620.01 (4096) for table 1
U620.02 (4096) for table 2
U620.03 (4096) for table 3
U620.04 (4096) for table 4
Number of support points X_max 1...100
U629.1 (0) = Table 1
U629.2 (0) = Table 2
U629.3 (0) = Table 3
U629.4 (0) = Table 4
Check table 0...2
U617.01 Table 1
U617.02 Table 2
U617.03 Table 3
U617.04 Table 4
n668.1
n668.2
n668.3
n668.4
U642.1-50
U631.1-50
U640.1-50
U641.1-50
U632.1-50
U633.1-50
U643.1-50
U630.1-50
U648.1-50
U635.1-50
U636.1-50
U645.1-50
U646.1-50
U637.1-50
U638.1-50
U647.1-50
Current table number 1...8
n644
