PZD1 PZD2 / PZD3 PZD4 PZD5 ... PZD16
Control word 1
Setpoint (32 Bit) /
Setpoints (16 Bit)
Setpoint /
Control word 2
Setpoints
PZD1 PZD2 / PZD3 PZD4 PZD5 ... PZD16
Status word 1 Main actual value
1)
Actual values
1)
/
Status word 2
Actual values
1)
Setpoint/actual value assignments are freely selectable, which means, for
example, that the speed setpoint can be given in the task telegram in the
PZD2, while the actual speed value can be returned in the reply telegram in
the PZD2 (technologically useful). Or another actual value can be returned,
such as actual torque value, actual position value or actual current value.
8.1.3 Interface overview
The following section describes all of the presently available
SIMOVERT MASTERDRIVES MC/VC interfaces which use the USS
protocol.
SCB2
USS
DPR
USS
USS
DPR
T100
CUMC/CUPM/
CUVC
USS
SCom2
SCom1
USS
CBP2
PROFIBUS
communication board
DPR
SCB2
interface board
T100
technology board
CUMC/CUPM/CUVC
control electronics board
(basic unit)
Not in
Compact PLUS
type unit
Fig.

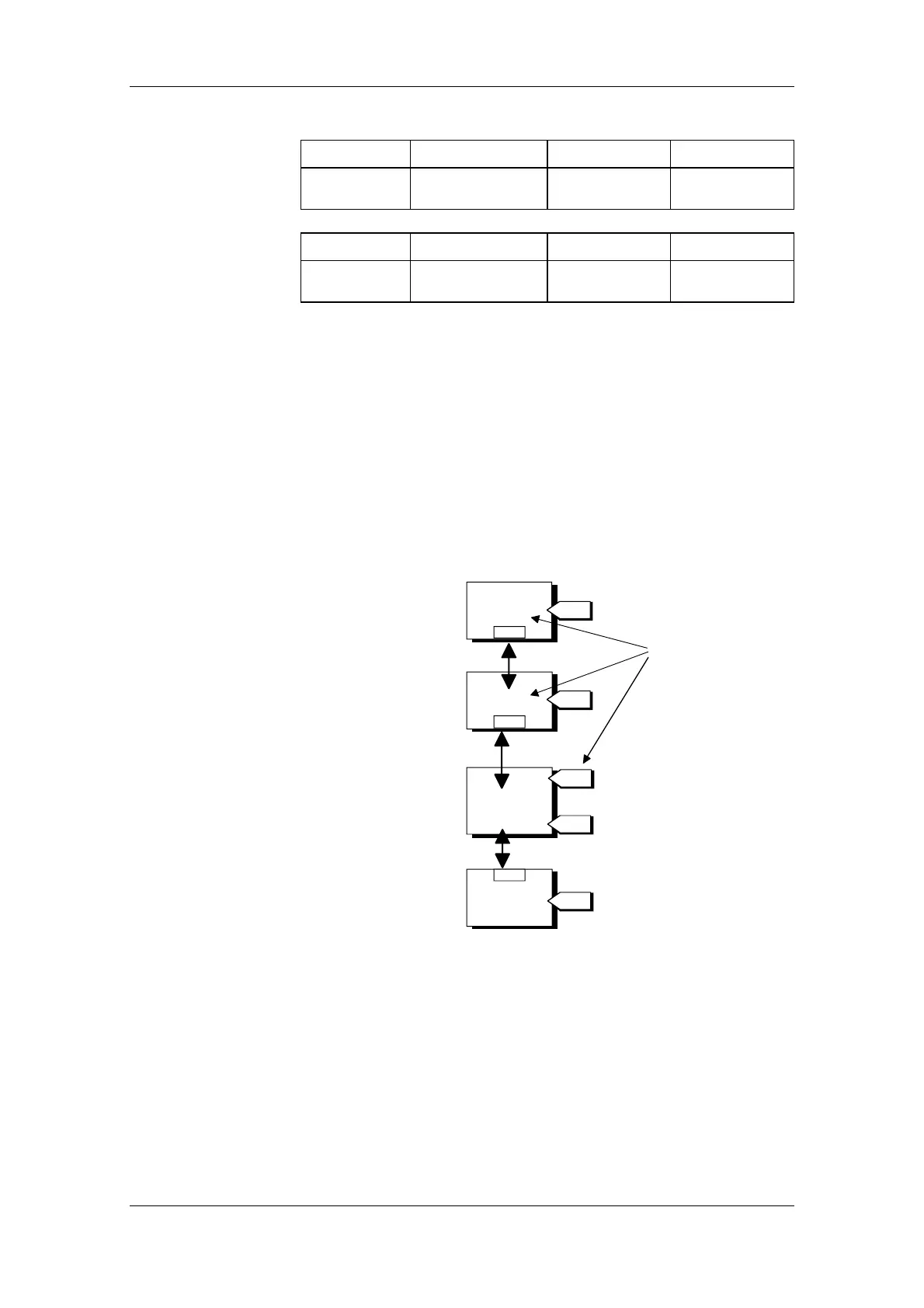

8.1-8 Interface overview
Task telegram
(master
→ slave)
Reply telegram
(slave
→ master)
