Communication / CBC 03.2010

6SE7087-6QX70 (Version AL) Siemens AG

8.4-14 Compendium Motion Control SIMOVERT MASTERDRIVES

8.4.3.5 Interface X458 / X459 with jumper strip S1

X458 / X459

CAN_L (2)

PEPE

Interface ground, high-ohm

or earth-bound to PE

120 Ohm

Equipotential bonding between

all nodes by means of

earthing cable

Electrically isolated

Electronics supply

DC/DC converter

CAN_GND (3,6)

CAN_H (7)

S1.1

S1.2

Opto

TxD

RxD

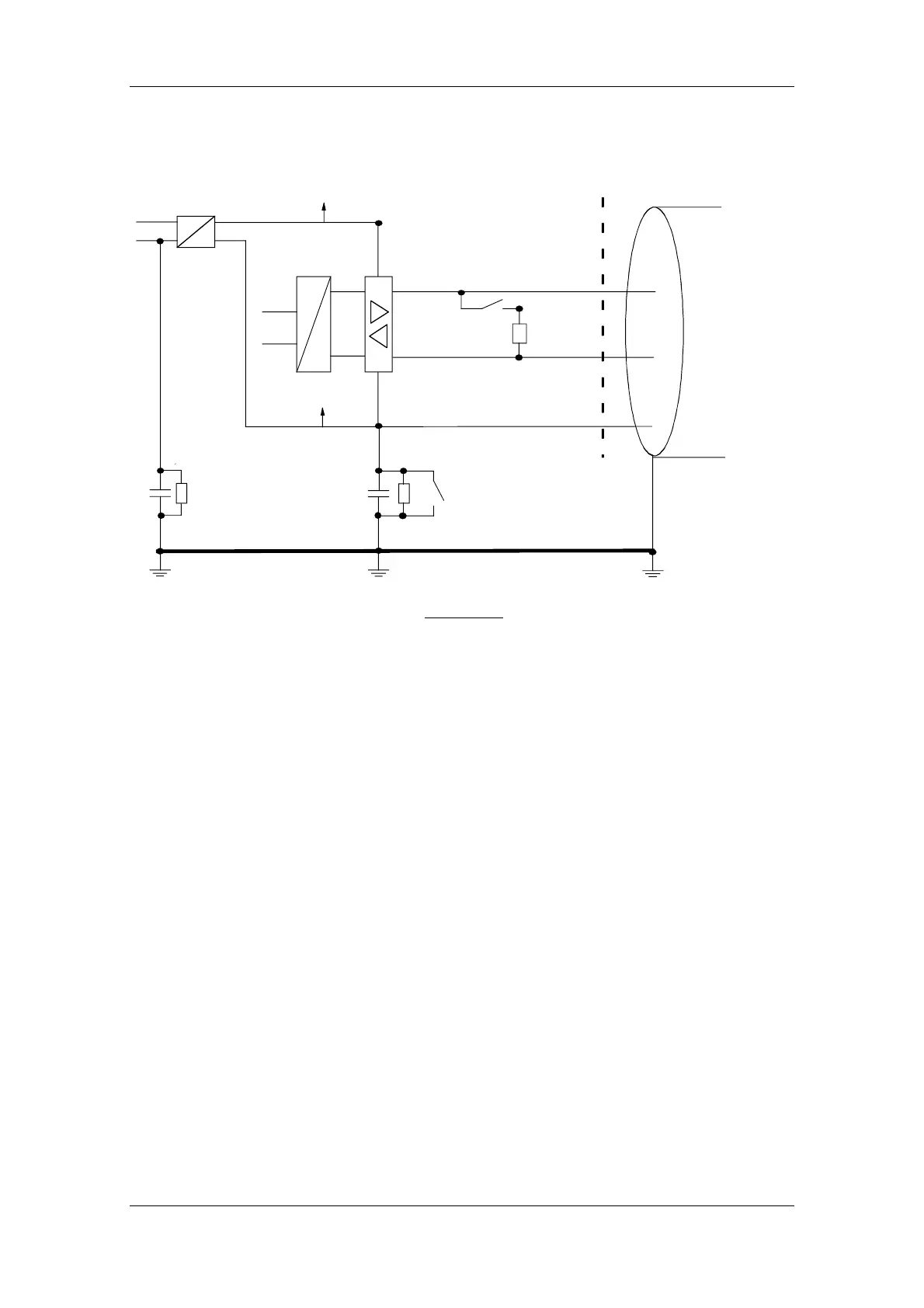

Fig. 8.4-12 Function of jumper strip S1
