Parameterization 03.2010
6SE7087-6QX70 (Version AL) Siemens AG
5-32 Compendium Motion Control SIMOVERT MASTERDRIVES
5.5 Parameter input with DriveMonitor
Please refer to the online help for detailed information on
DriveMonitor ( button or F1 key).
5.5.1 Installation and connection
5.5.1.1 Installation
A DVD is included with the devices of the MASTERDRIVES Series
when they are delivered. The operating tool supplied on the DVD
(DriveMonitor) is automatically installed from this DVD. If "automatic
notification on change" is activated for the DVD drive on the PC, user
guidance starts when you insert the DVD and takes you through
installation of DriveMonitor. If this is not the case, start file
"Autoplay.exe" in the root directory of the DVD.
5.5.1.2 Connection
There are two ways of con
necting a PC to a device of the SIMOVERT
MASTERDRIVES Series via the USS interface. The devices of the
SIMOVERT MASTERDRIVES Series have both an RS232 and an
RS485 interface.
The serial interface that PCs are equipped with by default functions as
an RS232 interface. This interface is not suitable for bus operation and
is therefore only intended for operation of a SIMOVERT
MASTERDRIVES device.
To PC COMx
socket
Device side
-X300 (compact PLUS -X103)
9-pin SUB-D connector
5
4
3
2
1
6
7
8
9
5
4
3
2
1
6
7
8
9
X300:
1 n.c. (not connected)
(Compact PLUS: RS232 Id)
2 RxD (RS232)
3 Rx+/Tx+ (RS485)
4
5 Ground
6 +5V (OP1S)
7 TxD (RS232)
8 Rx-/Tx- (RS485)
9 Ground

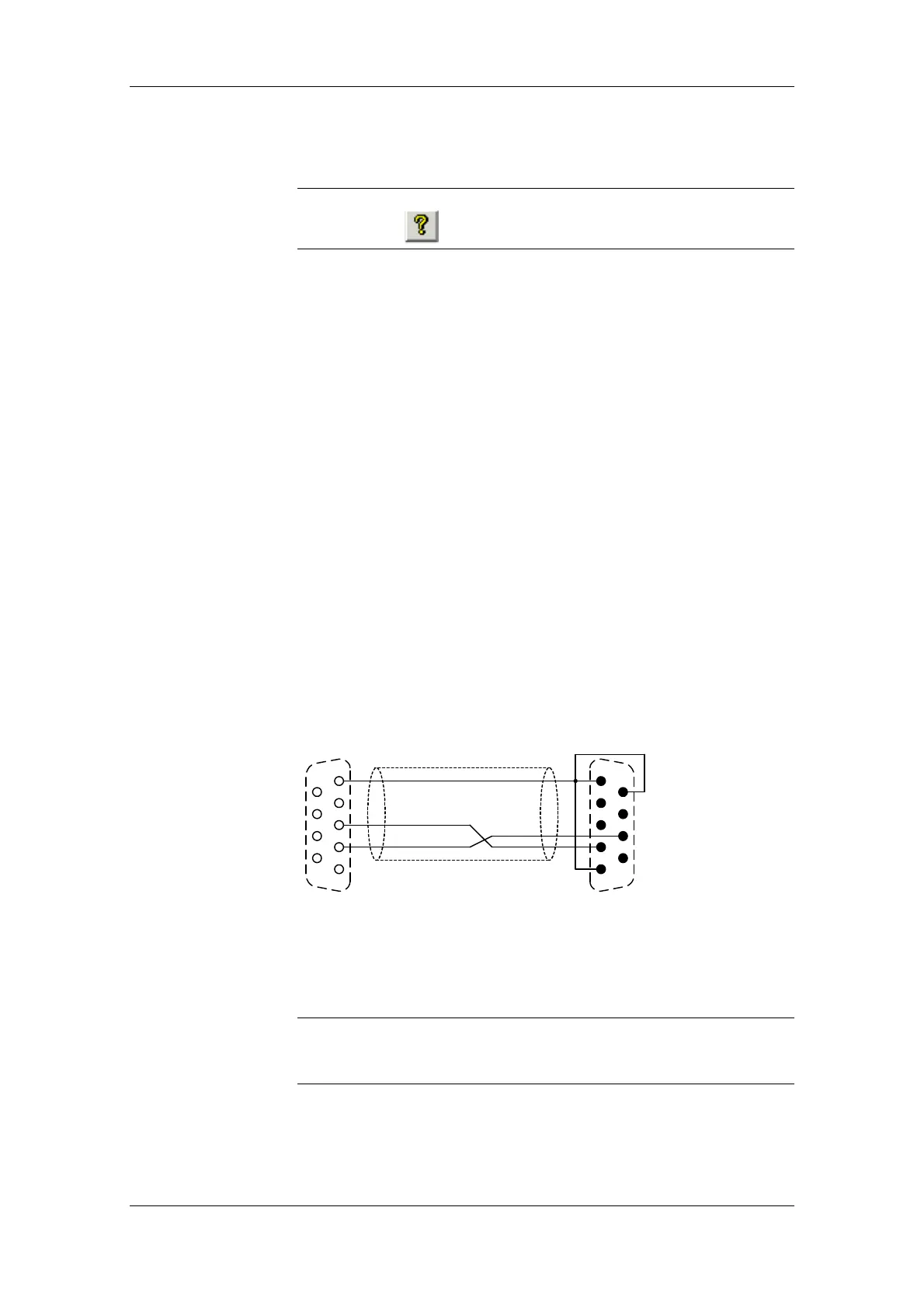

Fig. 5-7 Connecting cable for connecting PC COM(1-4) to SIMOVERT
MASTERDRIVES X300
DriveMonitor must not be operated via the Sub-D socket X300 if the
SST1 interface parallel to it is already being used for another purpose,
e.g. bus operation with SIMATIC as the master.
NOTE
RS232 interface
NOTICE
