On the adapter board, only one CBC may be mounted in position X
198, i.e. BOTTOM.
In order to mount the CBC with adapter board, the LBA (Local Bus
Adapter) backplane adapter must first be mounted.
If only one optional board is used, it must always be plugged in position
+1.B2 (RIGHT) in the electronics box.
If, in addition to the CBC, a technology board (T100 / T300 or T400) is
plugged into the electronics box, the technology board must be plugged
into position +1.B2. In this case, the CBC is plugged into position
+1.B3.
8.4.2.4 Mounting positions of the CBC in VC Compact PLUS units
In princi
ple, the optional CBC board (Communications Board CAN) can
be mounted in any slot.
SIEM ENS
A
S1
BX101
X103
Fastening screw for
side cover
Fastening screw for
side cover
Inscription fields for
optional boards
Slot A
Slot B
Terminal
module
Rear wall
Right-hand side wall open

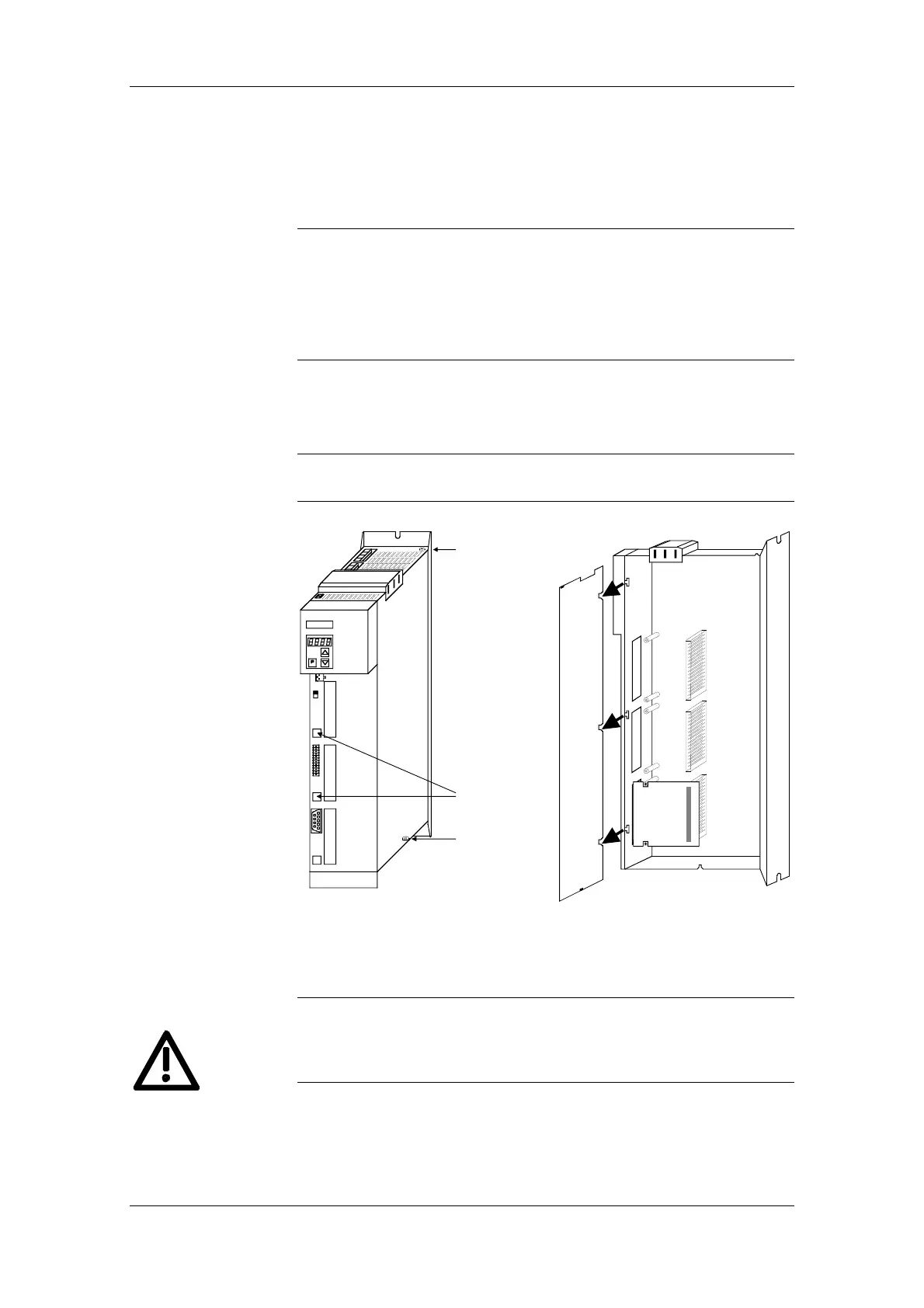

Fig. 8.4-7 Position of the slots (with side wall on the right removed)
Due to the DC link capacitors, hazardous voltages are still present in
the converter up to 5 minutes after it has been disconnected from the
power supply. Before opening the converter, wait until the capacitors
have completely discharged.
NOTE
NOTE
Position of the slots
DANGER
