08.2012 Parameterizing Steps
Siemens AG 6SE7087-6QX70 (Version AN)
SIMOVERT MASTERDRIVES Compendium Motion Control 6-25
6.3.2 Parameterizing by loading parameter files (download P060 = 6)
When parameterizing with download, the parameter values stored in a
master unit are transferred to the unit to be parameterized via a serial
interface. The following can serve as master units:
1. OP1S operator control panel
2. PCs with DriveMonitor service program
3. Automation units (e.g. SIMATIC)
The interfaces SCom1 and SCom2 with USS protocol of the basic unit
(SCom2 not in the case of units of the Compact PLUS type) and field
bus interfaces used for parameter transfer (e.g. CBP for PROFIBUS
DP) can serve as serial interfaces.
Using download, all changeable parameters can be set to new values.
Automation unit
(e.g. SIMATIC S7)
SIEMENS
A
S1
BX101
CX1 03
P
Laptop
USS-Bus
100.0A 380.0V zz
*-300.000Hz
#-300.00
0Hz
Betrieb
Jog789
P
Rese t
+/-0
456
123
O
I
Fault
Run
OP1S
Operating
mode
Individual
operation
Bus
operation
Type of construction
Compact PLUS
Compact, chassis
Compact PLUS
Compact, chassis
Terminal
X103
X300
X100
X103
Operating
mode
Individual
operation
Type of construction
Compact PLUS
Compact, chassis
Terminal
X103
X300
U
S
S
v
i
a
R
S
4
8
5
USS via RS232
Operating
mode
Bus operation
Type of construction
Optional board CBx
e.g. CBP for Profibus
Terminal
e.g. X448
for CBP
b
u
s
-sp
e
c
i
f
i
c

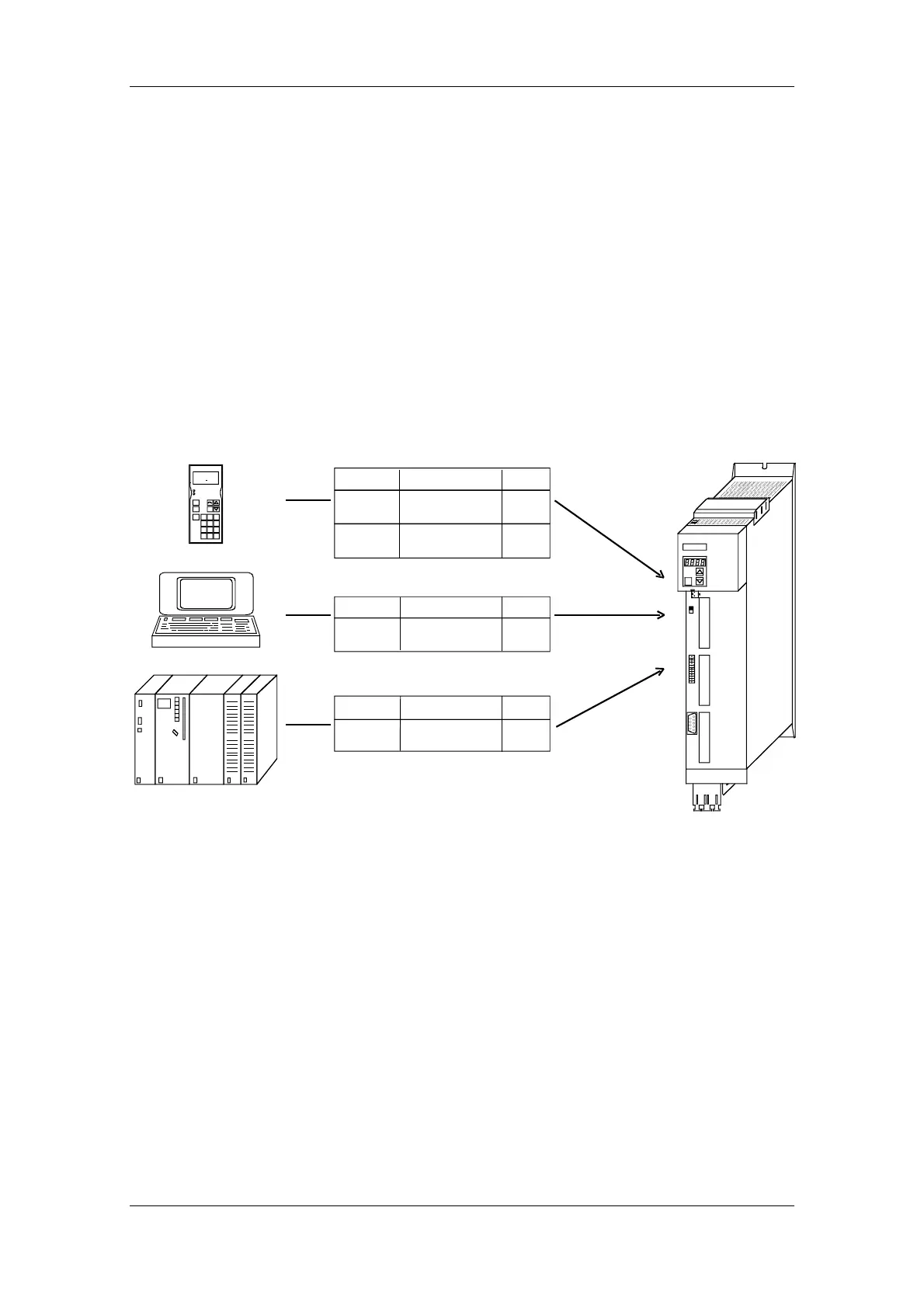

Fig. 6-5 Parameter transfer from various sources by download
