03.2010 Parameterization
Siemens AG 6SE7087-6QX70 (Version AL)
SIMOVERT MASTERDRIVES Compendium Motion Control 5-35
5.5.2.2 Starting the USS bus scan
DriveMonitor starts with an empty drive window. Via the menu "Set up
an ONLINE connection..." the USS bus can be scanned for connected
devices:

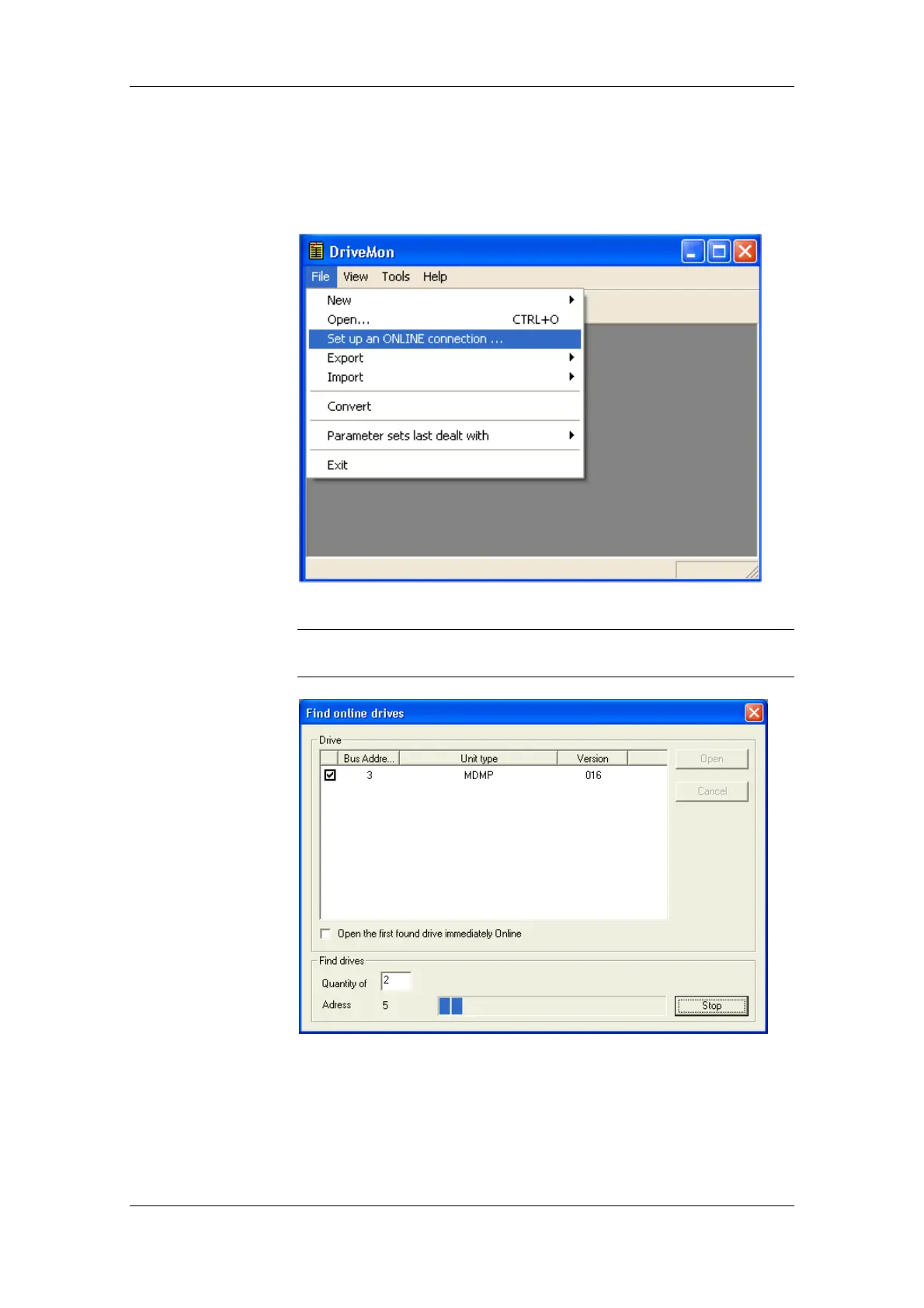

Fig. 5-10 Starting the USS bus scan
The "Set up an online connection” menu is only valid from Version 5.2
onwards.
Fig. 5-11 Search for online drives
During the search the USS bus is scanned with the set baudrate only.
The baud rate can be changed via "Tools
ONLINE Settings", see
section 5.5.2.1.
NOTE
