Siemens simovert masterdrives Compendium

05.2003 Function Blocks and Parameters
Siemens AG 6SE7087-6QX70 (Version AD)
SIMOVERT MASTERDRIVES Compendium Motion Control 4-3
The values stored in the connectors are normalized values, with a few
exceptions (e.g. connectros for control words).
The value range of these connectors covers a percentage value range
of:
♦ -200 % (8000H / 8000 0000H for double-word connectors) to
♦ +199.99 % (7FFFH / 7FFF FFFFH for double-word connectors).
100 % corresponds to the value 4000H (4000 0000H for double-word
connectors).
0000H
FFFFH
7FFFH
8000H
199.994 %
-0.006 %
0 %
-200 %
4000H
C000H
-100 %
100 %
0000 0000H
FFFF FFFFH
7FFF FFFFH
8000 0000H
199.999999907 %
-0.000000093 %
0 %
-200 %
4000 0000H
C000 0000H
-100 %
100 %
Connector with word length (Kxxxx) Connector with double-word length (KKxxxx)
1H = 0.000 000 093 %
1H = 0.06 %

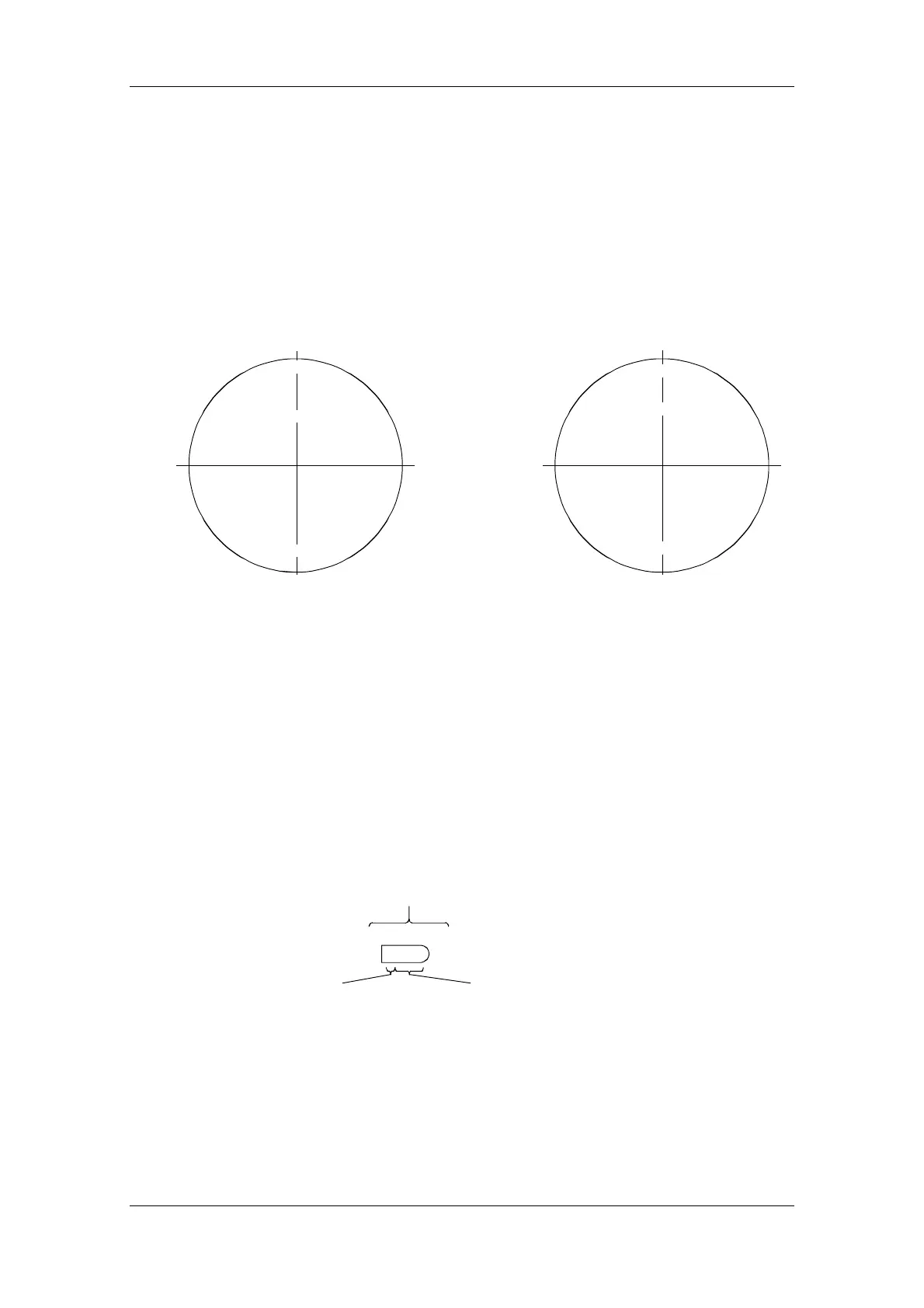

Fig. 4-3 Value range and assignment of the figure ranges for connectors
Function blocks archive the binary (digital) output information in binary
connectors, the binectors. Binectors can therefore be likened to
storage locations used for storing binary signals. They are clearly
identified. Each binector designation comprises the binector name, the
binector number and an identification letter. The identification letter is B.
The binector number always has four digits.
On account of their definition, binectors can only assume the two states
"0" (logically no) and "1" (logically yes).
Binector name
Binector numberIdentification letter
Accel active
B0201
Fig. 4-4 Binectors
Value range of the
connectors
Binectors
