Technology Option F01 08.2012

6SE7087-6QX70 (Version AN) Siemens AG

9-88 Compendium Motion Control SIMOVERT MASTERDRIVES

If the engaging length is greater or equal to the master axis cycle

length, the drive switches to constant synchronization after it has

crossed the coupling position with a continuous enable signal applied.

Example:

Coupling position

Position setpoint

master

Position setpoint

master

Position setpoint

master

Master axis

cycle length

Master axis

cycle length

Speed setpoint

slave

Static engaging/

disengaging

cycle enable

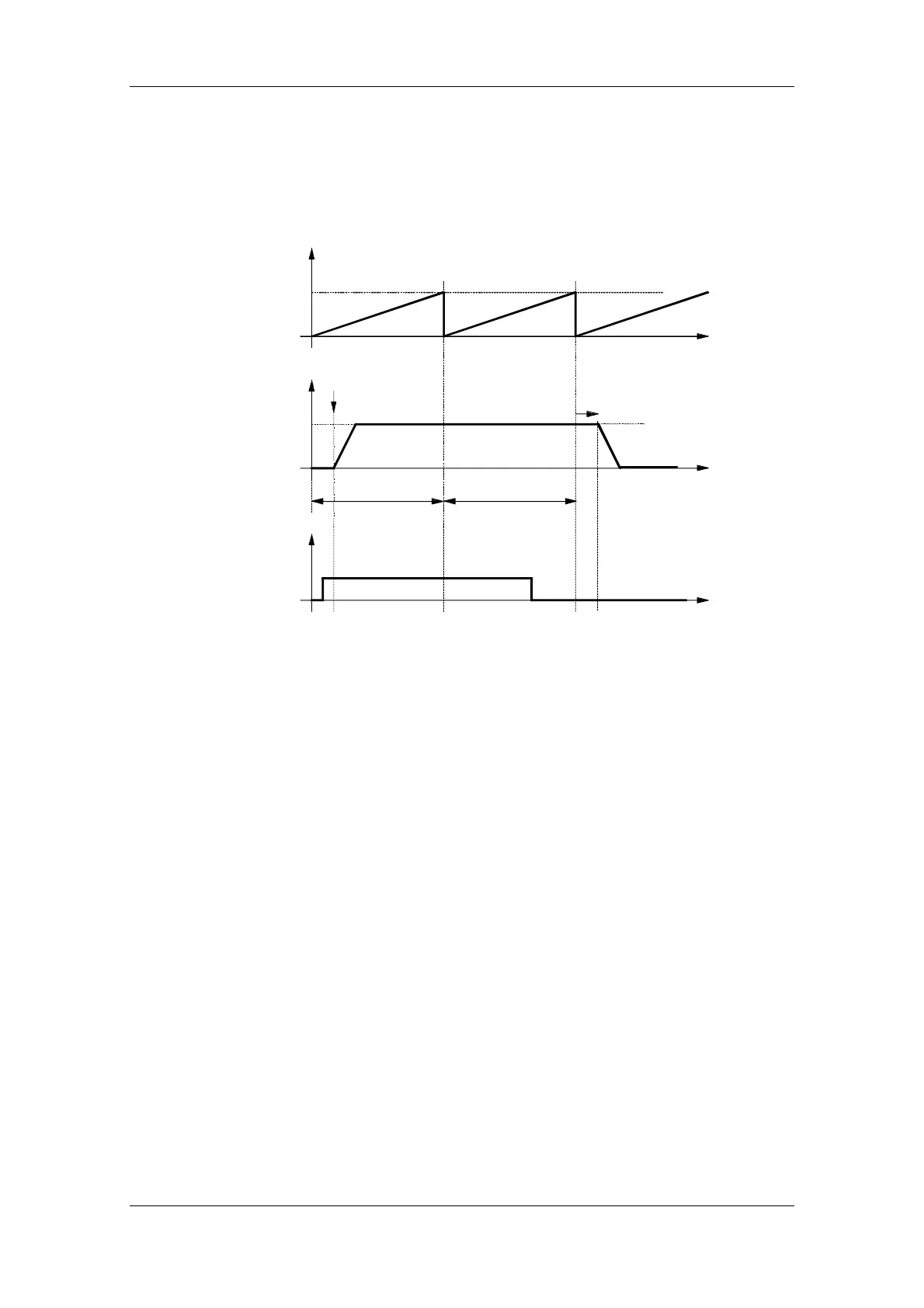

Fig. 9-36

Exceptions

Guidelines for Start-Up3
