Technology Option F01 08.2012
6SE7087-6QX70 (Version AN) Siemens AG
9-150 Compendium Motion Control SIMOVERT MASTERDRIVES

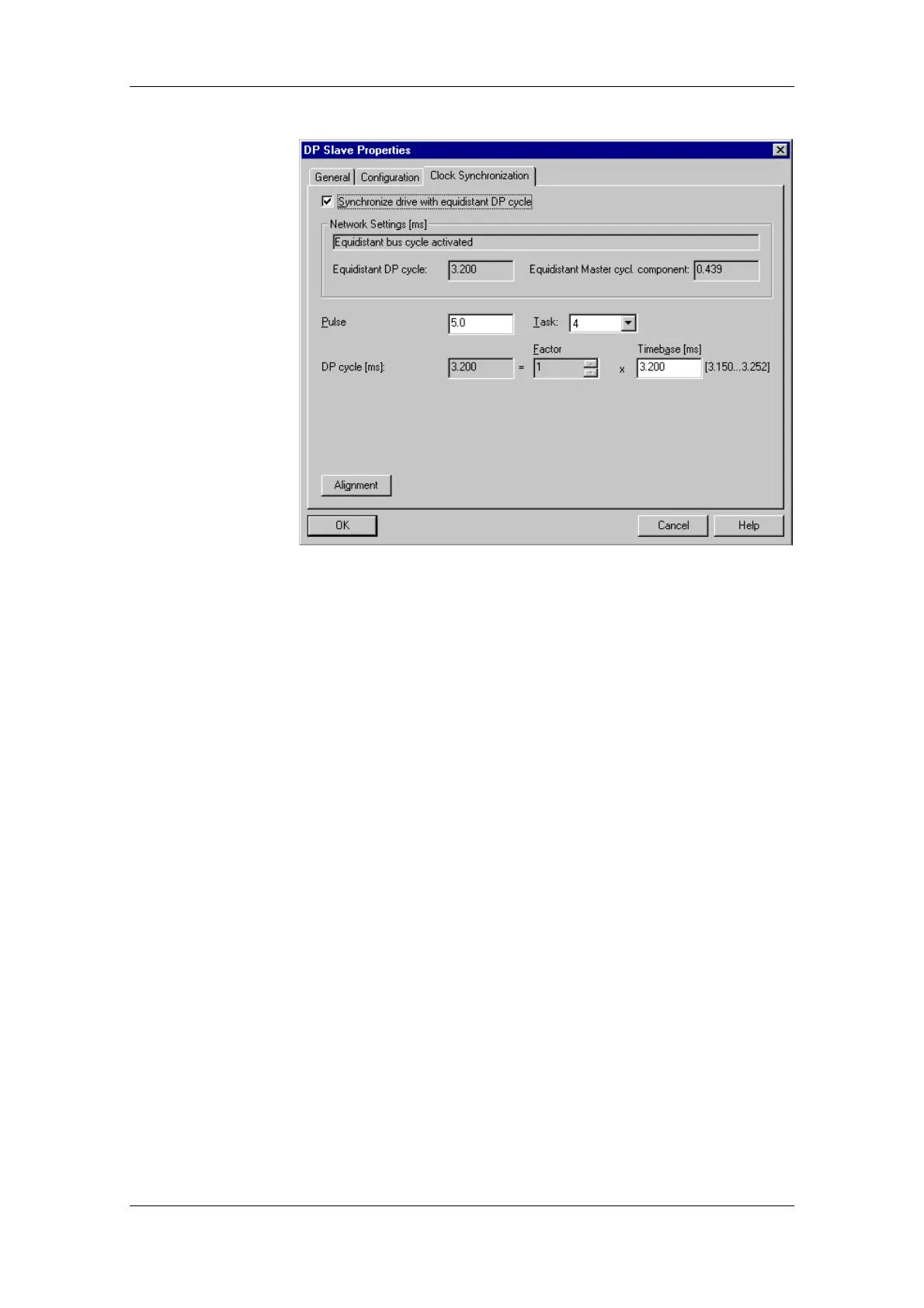

Fig. 9-55 Activation of the equidistance on the converter
On tab card "General" you can check the baud rate. If it is not 12
Mbit/s, you can set it under Properties, Network settings.
Please note:
If the CPU is reset, communication via your PROFIBUS interface is not
possible.
You must load the hardware configuration into the CPU via the MPI
interface. After that, communication via the PROFIBUS interface will be
possible again. If you reset the CPU via the PROFIBUS interface,
communication is interrupted.
If you address the PLC via the MPI or PROFIBUS interface, you must
select the PG/PC interface in the SIMATIC Manager under "Extras".
