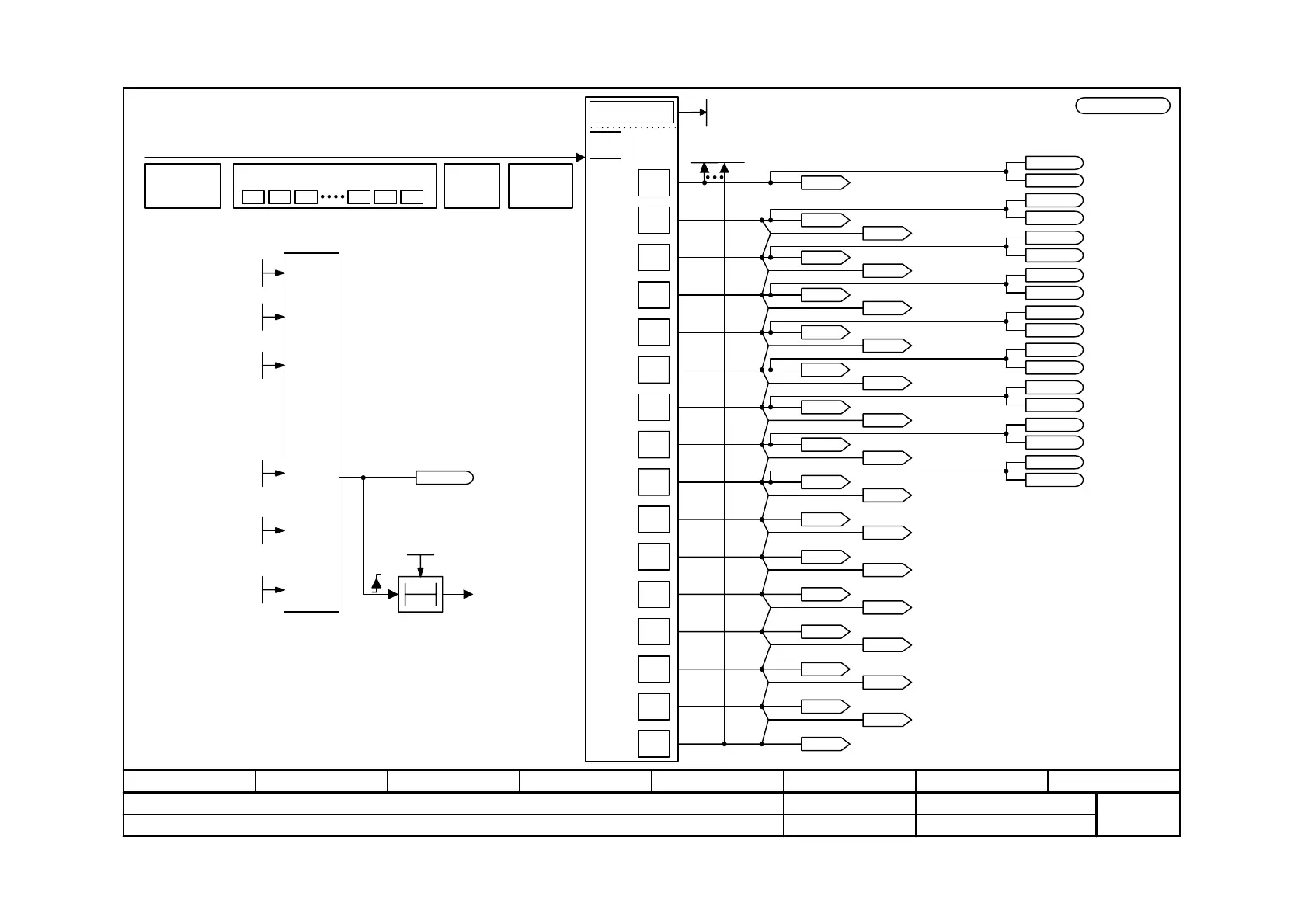

Function diagram
87654321
fp_mc_101_e.vsd
USS/SCom2
MASTERDRIVES MC
08.01.02
Receiving
-101 -
V2.5
USS
configu-
ration
P704.2 = 0 :No monitoring
T0
Note: Bit 10 must be set in the first PcD word of the telegram
received via USS so that the converter will accept the process
data as being valid. For this reason, control word 1 must be
transferred to the converter in the first PcD word.
PKW words
RxD Receive telegram Receive
TLG End
PcD
16 15 14 123
PKW TLG Head
1
2
3
4
6
5
7
8
9
10
11
12
13
14
15
16
Low
High
Low
High
Low
High
Low
High
Low
High
Low
High
Low
High
Low
High
Low
High
Low
High
Low
High
Low
High
Low
High
Low
High
F065
SCom TlgOFF
PcD
words
Monitoring does not become active
until after first valid telegram
No fault when P781.12 = 101.0 s
Not valid for Compact PLUS
SCom BusAddr
0 ... 31
P700.2 (0)
SCom Baud
1 ... 13
P701.2 (6)
SCom PKW #
0/3/4/127
P702.2 (127)
SCom PcD #
0 ... 16
P703.2 (2)
SCom TlgOFF
0 ... 6500 ms
P704.2 (0)
B0055
SCom2 TlgOFF
Fault delay
0.0 ... 101.0 s
P781.12 (0.0)
K6001 SCom2 Word 1
B6115 SCom2Word1Bit15
K6002 SCom2 Word 2
B6200 SCom2Word2Bit0
B6215 SCom2Word2Bit15
KK6032 SCom2 DWord 2
K6003 SCom2 Word 3
B6300 SCom2Word3Bit0
B6315 SCom2Word3Bit15
B6100 SCom2Word1Bit0
KK6033 SCom2 DWord 3
K6004 SCom2 Word 4
B6400 SCom2Word4Bit0
B6415 SCom2Word4Bit15
KK6035 SCom2 DWord 5
K6006 SCom2 Word 6
B6600 SCom2Word6Bit0
B6615 SCom2Word6Bit15
KK6034 SCom2 DWord 4
K6005 SCom2 Word 5
B6500 SCom2Word5Bit0
B6515 SCom2Word5Bit15
KK6036 SCom2 DWord 6
K6007 SCom2 Word 7
B6700 SCom2Word7Bit0
B6715 SCom2Word7Bit15
KK6037 SCom2 DWord 7
K6008 SCom2 Word 8
B6800 SCom2Word8Bit0
B6815 SCom2Word8Bit15
KK6038 SCom2 DWord 8
K6009 SCom2 Word 9
B6900 SCom2Word9Bit0
B6915 SCom2Word9Bit15
KK6039 SCom2 DWord 9
K6010 SCom2 Word 10
KK6040 SCom2 DWord 10
K6011 SCom2 Word 11
KK6041 SCom2 DWord 11
K6012 SCom2 Word 12
KK6042 SCom2 DWord 12
K6013 SCom2 Word 13
KK6043 SCom2 DWord 13
K6014 SCom2 Word 14
KK6044 SCom2 DWord 14
K6015 SCom2 Word 15
KK6045 SCom2 DWord 15
K6016 SCom2 Word 16
U950.14 = ___(4)
Bit 5 = 1
xxxx xxxx xx1x xxxx
P053 Parameter Access
PKW Order
r738.13 to .16
SCom1/2 RecData
r709.17 to .32
