Commissioning
4.4 Creating a project offline in Startdrive
Commissioning with Startdrive
104 Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1
3. Drag the unspecified Motor Module into the device view.

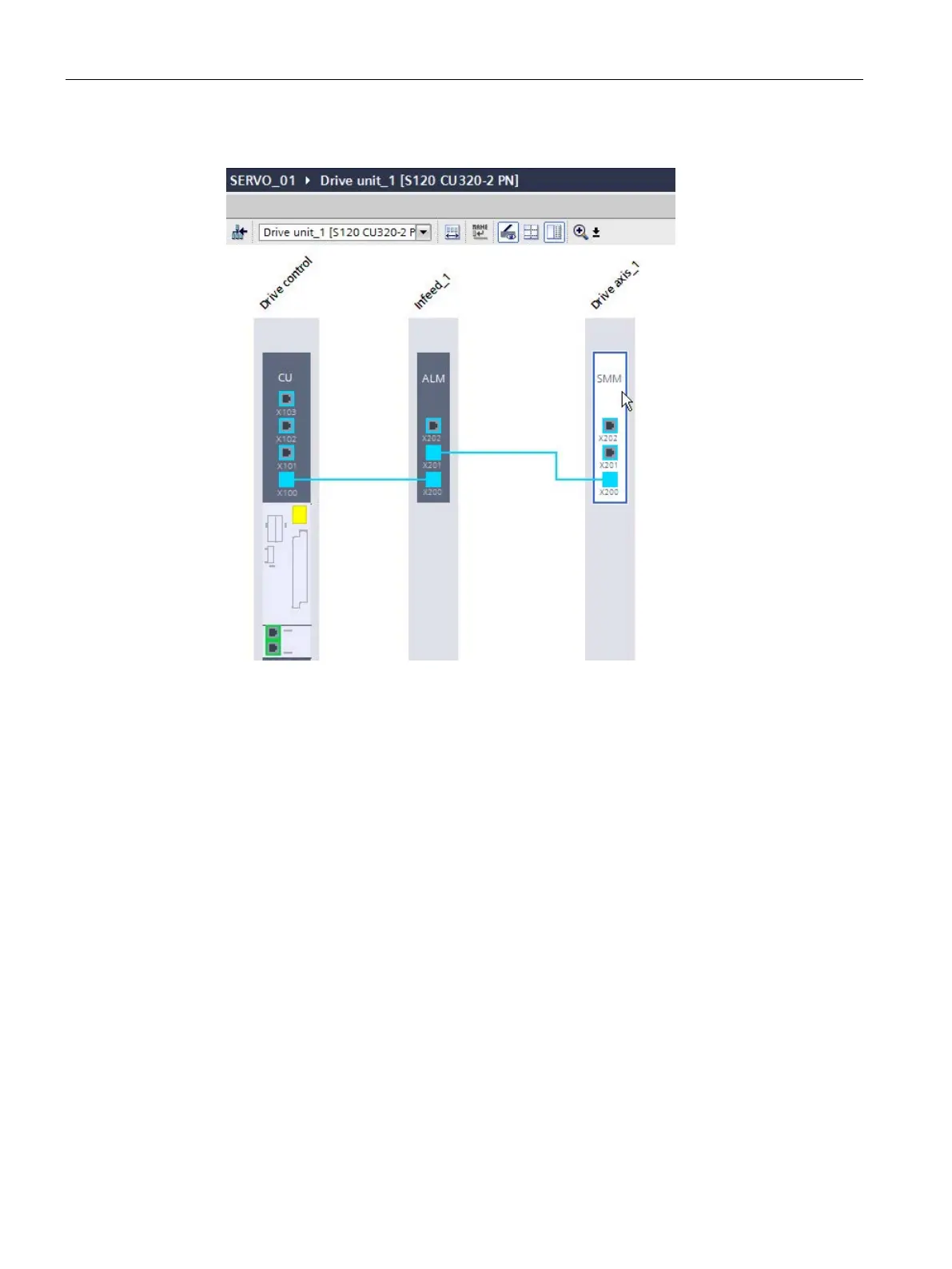

Figure 4-19 Motor Module inserted
The DRIVE-CLiQ connection is automatically established.
4. Click the Motor Module in the device view. Ensure that you click in the white area of the
Motor Module.
5. Open the Inspector window if it has still not been opened or displayed.
