2.5 User interface - trace function
Commissioning with Startdrive
Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1
45
2.5
User interface - trace function
2.5.1
Configuration
The user interface of the trace function comprises several areas.

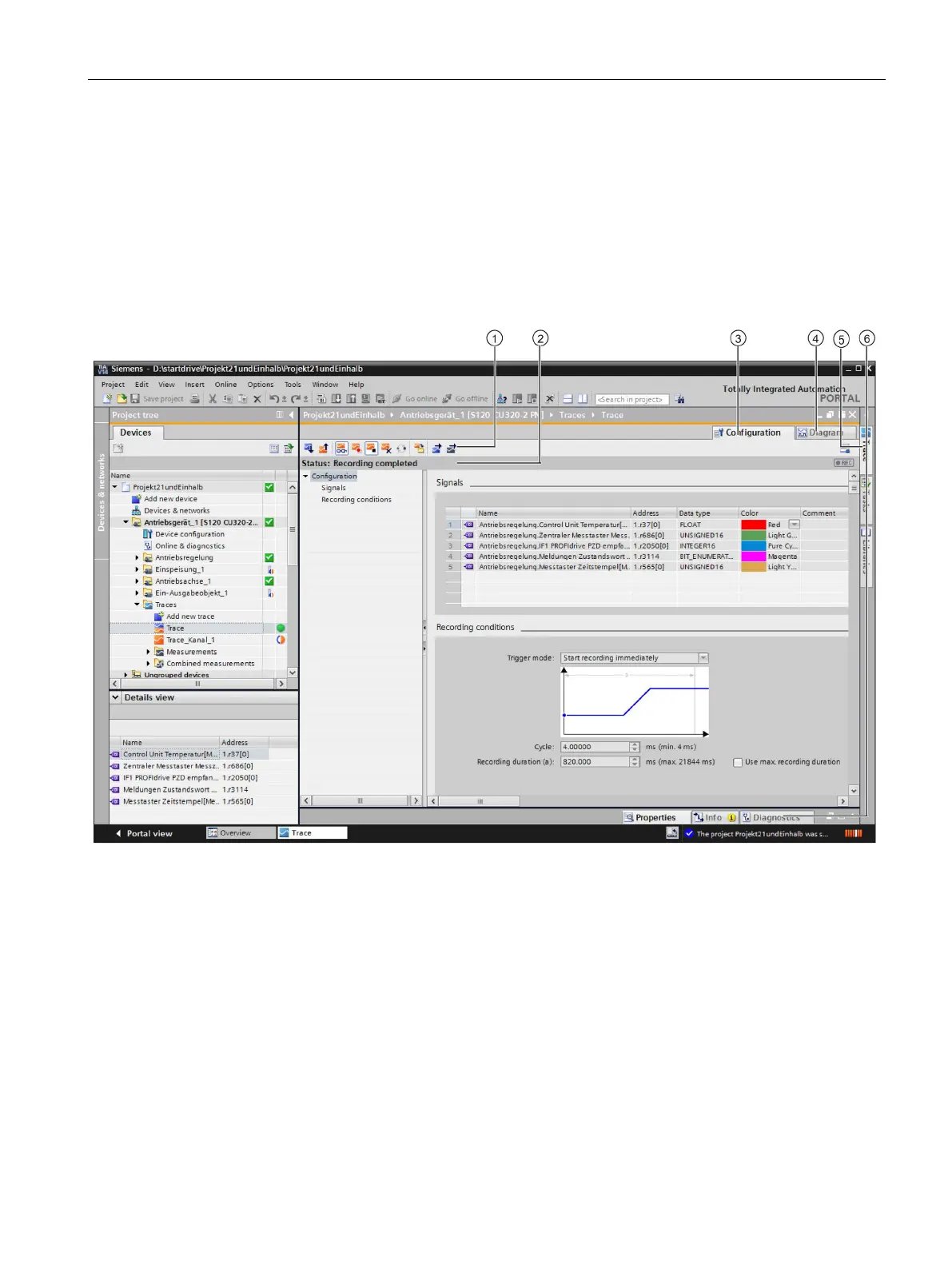

The following figure shows the structure of the trace user interface in Startdrive as example:
Project navigator
Management and creation of the trace and measurements directly in the project tree and via
shortcut menu commands.
Working area
① Trace toolbar
Icons for managing the traces in the project and device.
②
Status display of the
trace
Display of the current recording status. The status is displayed only in online mode.
③ Configuration tab
Device-specific configuration of the recording duration, trigger condition and signal selection.
④
Diagram tab
Display of the recorded values as a curve diagram and the signal sources from the displayed
measurement.
"Trace" tab
Display of the measurement cursor data ⑤ and snapshots.
Inspector window
Display of general information ⑥ regarding the trace configuration.
Figure 2-11 Trace user interface
