Siemens SINAMICS S120 - User Interface - Control Panel

Startdrive commissioning tool
2.4 User interface - Control panel
Commissioning with Startdrive
44 Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1
2.4
User interface - Control panel
The drive control panel (see Chapter "Using the control panel (Page 209)") is used to control
and monitor individual drives. You traverse drives with the control panel by specifying values.
Depending on the operating mode, these are, for example, speed setpoints.

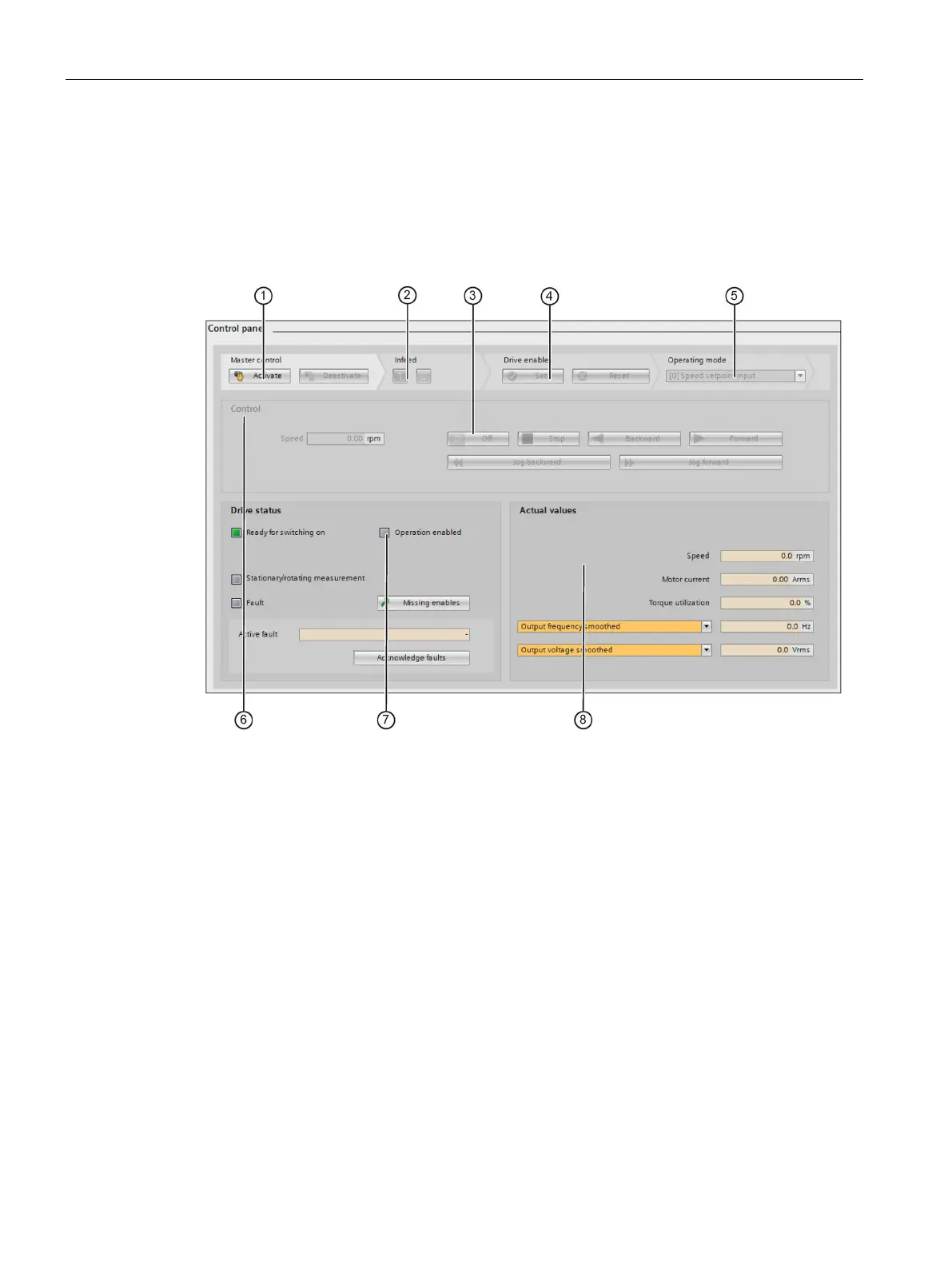

The following figure shows the various components of the control panel:
①
Activate/deactivate master control
②
Switch infeed on and off
③
Drive Off (OFF)
④
Set drive enable
⑤
Select operating mode
⑥
Control drive
⑦
Drive status
⑧
Actual values
Figure 2-10 Control panel
