Startdrive commissioning tool
2.6 Online and diagnostics
Commissioning with Startdrive
54 Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1
The status of the online accesses can be checked in the working area "Online &
Diagnostics" (refer to Chapter "Online diagnostics (Page 350)") and, if necessary, an online
connection can be established or disconnected.
Structure of the online diagnostics
The following figure shows the structure of the working area:
Working area for online access and diagnostics

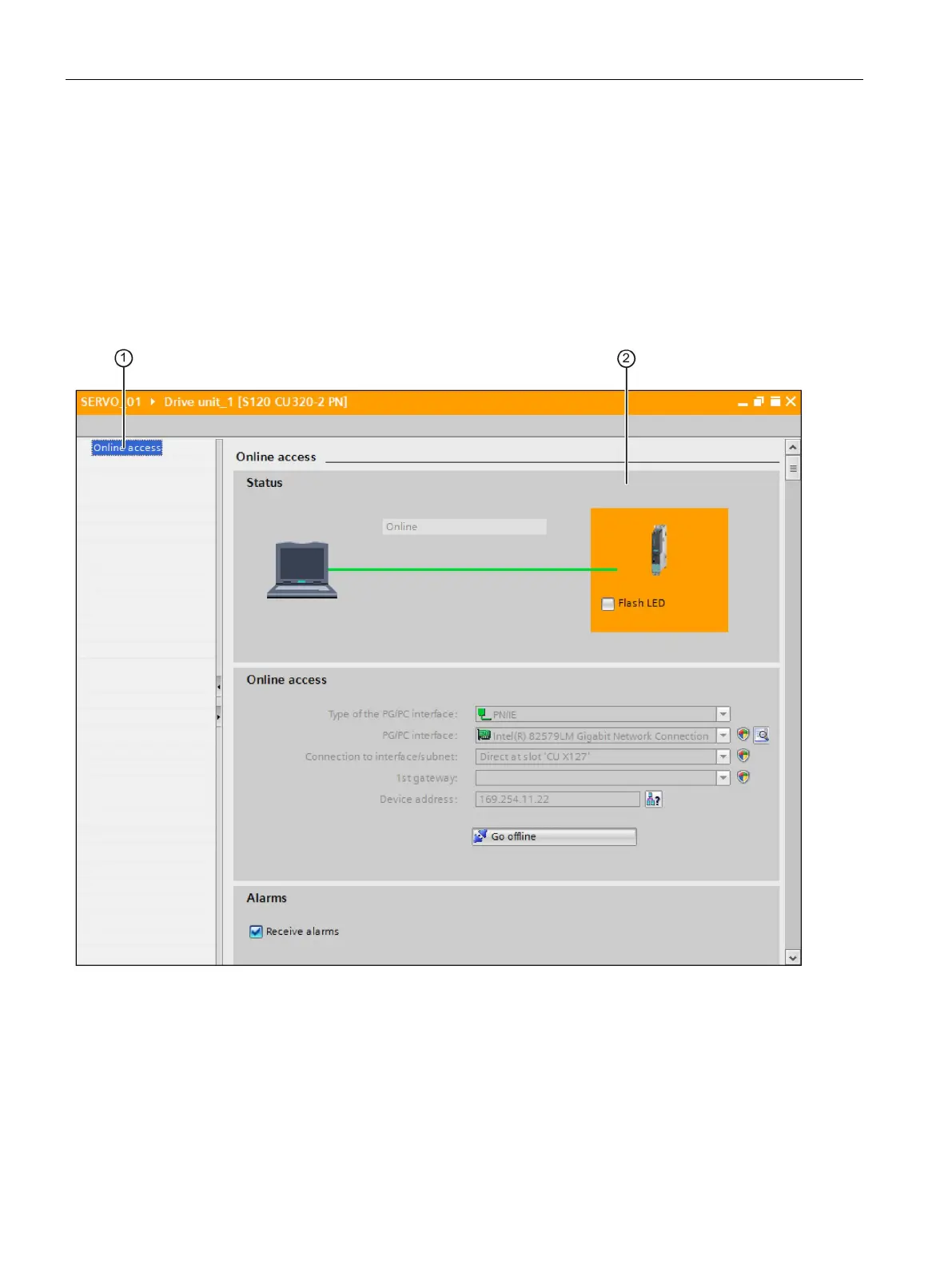

Figure 2-15 Online access in SINAMICS S120
