Diagnostics
5.3 Diagnostics via Startdrive
Commissioning with Startdrive
350 Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1
Online diagnostics
5.3.3.1
Calling online diagnostics
Precondition
The online connection to the drive device must be activated.
Calling the diagnostics area
1. For the required drive device, double-click in the project navigation on "Online &
Diagnostics".
The "Online & Diagnostics" working area opens.

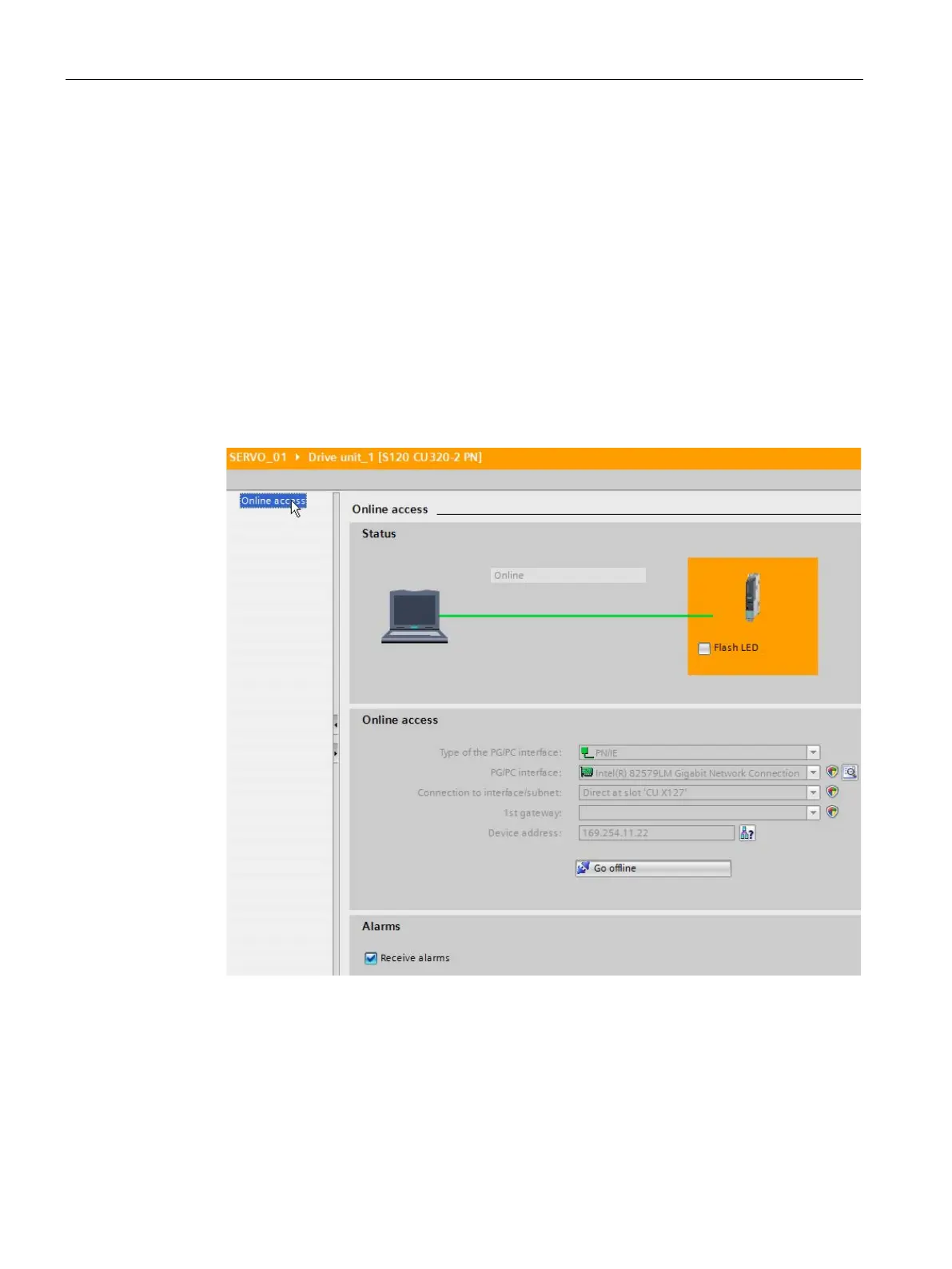

Figure 5-8 Online & Diagnostics working area
