Startdrive commissioning tool
2.5 User interface - trace function
Commissioning with Startdrive
Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1
47
The signal table lists the signals of the selected measurement and provides setting options
for some properties. If recording data of installed traces is displayed and the settings are
changed in the signal table, these settings are retained until there is a change to the offline
mode. If the installed trace is added to the measurements, the current settings of the signal
table are saved in the measurement.
The signals can be sorted using drag-and-drop. The bits of a signal can be resorted within a
signal.
Setting options and displays in the signal table

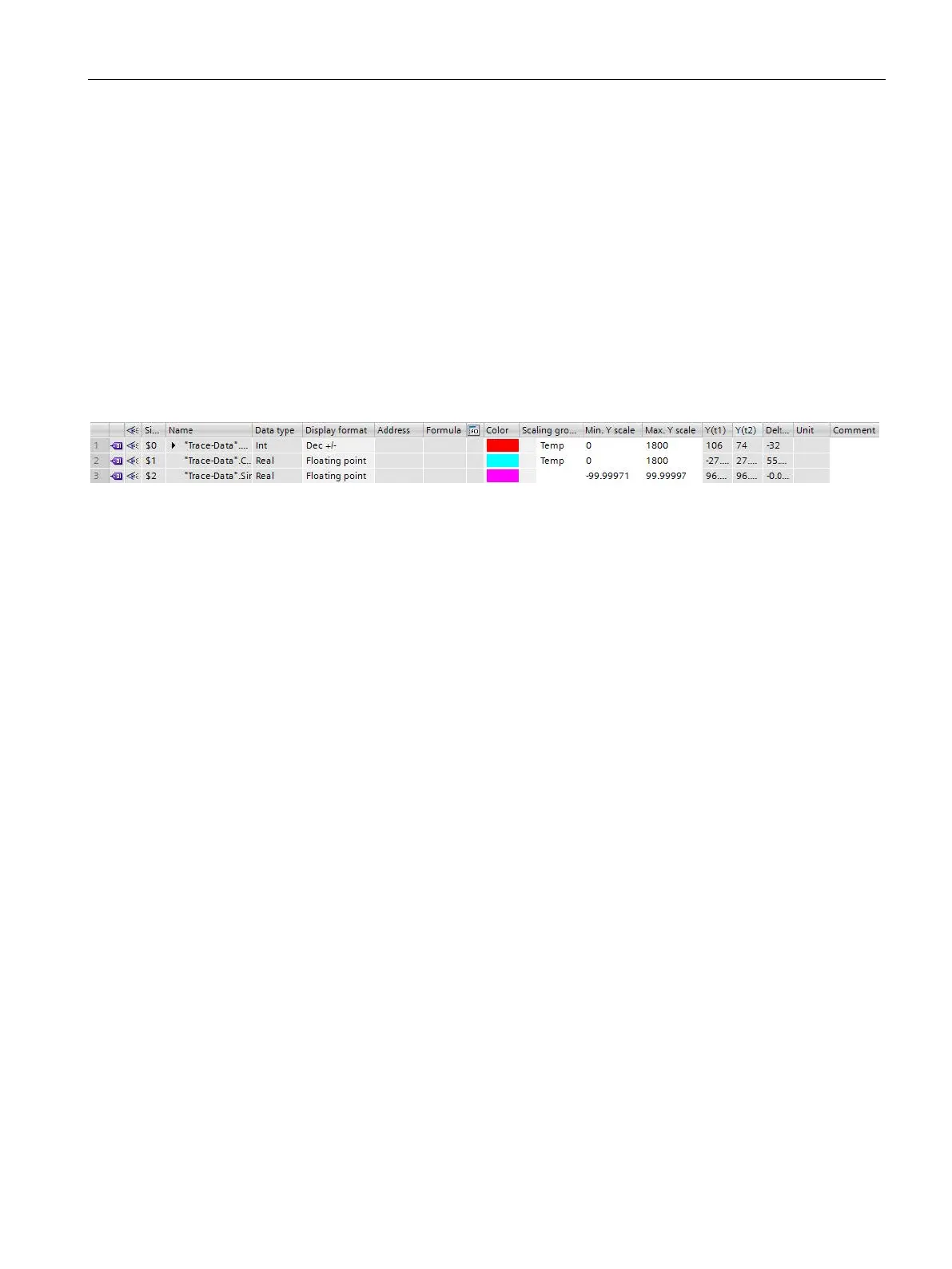

The following figure shows the display in Startdrive as example:
