Siemens SINAMICS S120 - Parameterization Editor

Startdrive commissioning tool
2.3 User interface - parameterization
Commissioning with Startdrive
Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1
37
2.3.3
Parameterization editor
The parameterizing editor comprises 2 tabs, under which you can parameterize the drive:
● In the function view, you parameterize the drive using a graphic user interface. The
individual screen forms are based on the function diagrams – and include the parameters
required.
● All the drive parameters are listed in the parameter view, so that the drive can be
completely parameterized there.

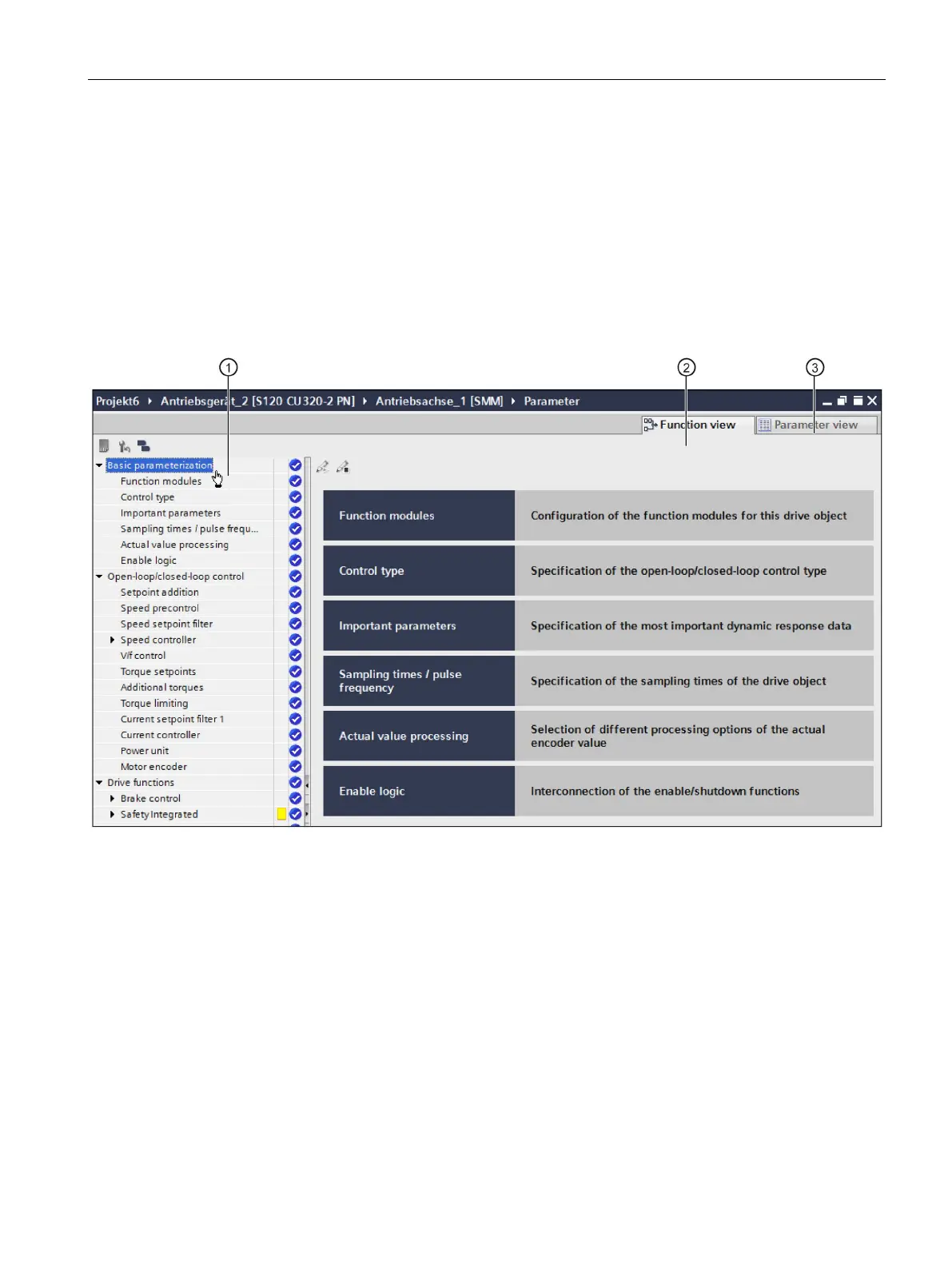

The following figure shows the structure of the parameterizing editor:
①
Secondary navigation
For the selected tab, you navigate here through the individual thematically sorted topics.
②
Tab
Function view
Here, you parameterize the drive on a graphical user interface. Various drive-specific screen forms are displayed
which facilitate parameterization.
③
Tab
Parameter view
The drive can be parameterized here directly using the parameters from the parameter list.
Figure 2-5 Parameterizing editor
