5.3 Diagnostics via Startdrive
Commissioning with Startdrive
Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1
333
5.3.1.1
Example: Detecting and correcting a topology error
After going online, the drive objects (DO) that are ready are displayed with a green
checkmark in the device view. However, topology errors, which are marked red on the
interface of the DRIVE-CLiQ connection, can also be present.

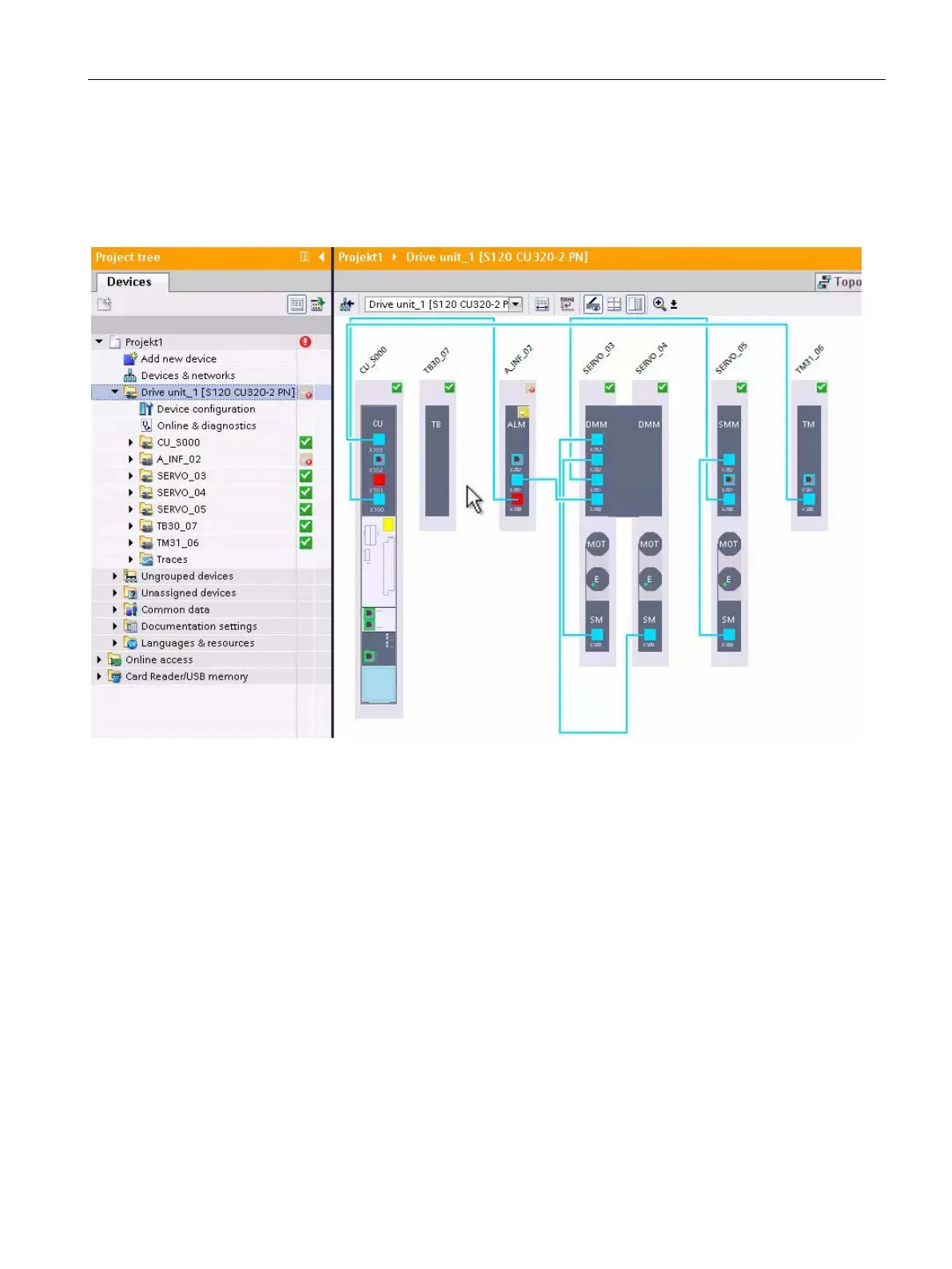

Figure 5-2 Example: Topology error for DRIVE-CLiQ connections
