Commissioning
4.4 Creating a project offline in Startdrive
Commissioning with Startdrive
Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1
107
4. In the device view, click the Power Module. Make sure that you click on the white area of
the Power Module.
5. Open the Inspector window if it has still not been opened or displayed.
6. In the secondary navigation of the inspector window, select "Power Module - Selection -
xx"

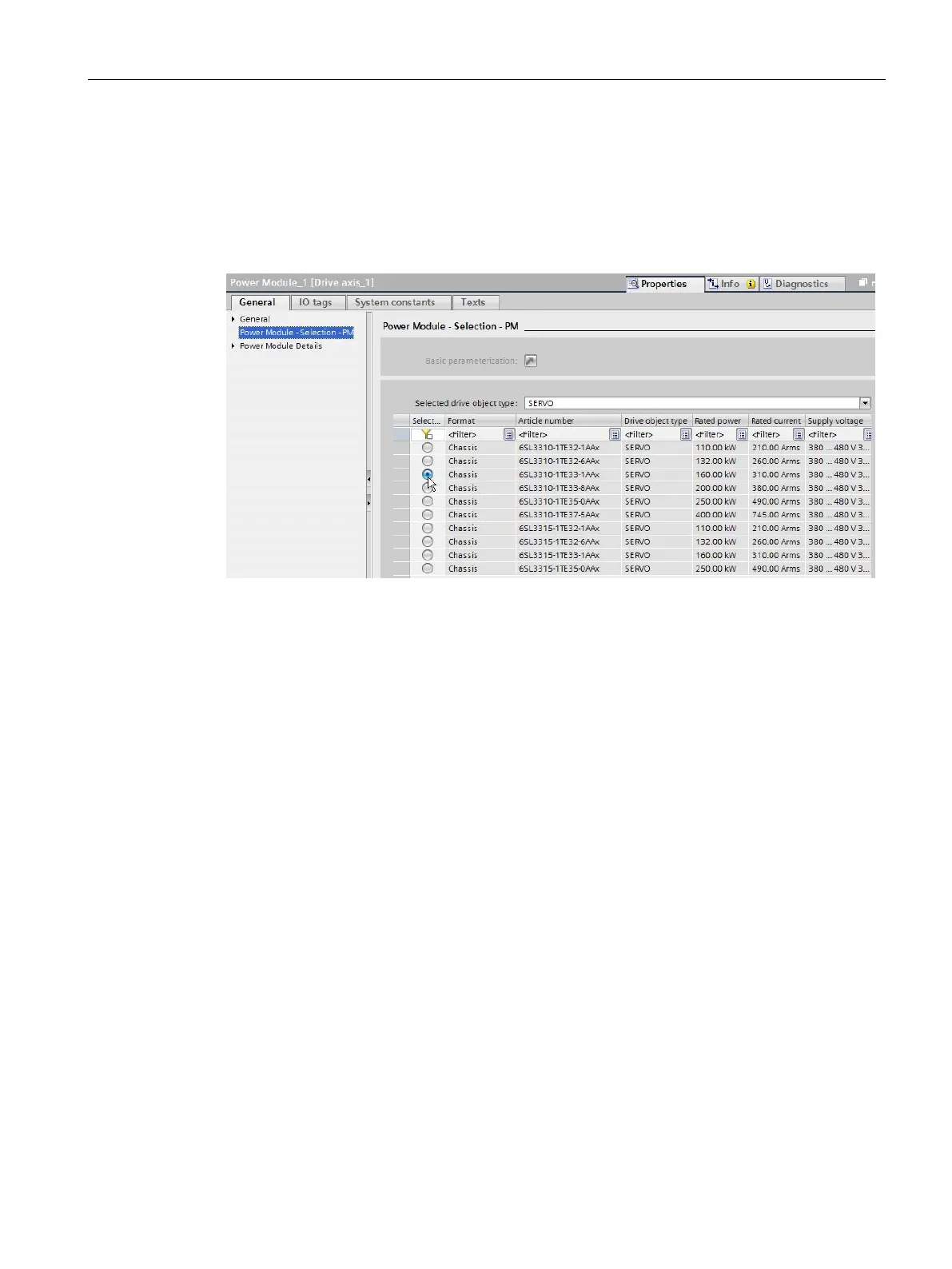

Figure 4-23 Power Module specified
All Power Modules for the "SERVO" drive object type (default setting for first call) are
displayed in the list. If you want to use drive objects of type "VECTOR", you must change
the display of the list.
7. If you are using drive objects of type "VECTOR", select the "VECTOR" option in the
"Selected drive object type" drop-down list.
A confirmation prompt appears as to whether you really want to change the drive object
type.
8. Click "Yes" to confirm the prompt.
The list of Power Modules is now refreshed. Now only Power Modules of type "VECTOR"
are available for selection. In the same way, the list can be changed back to modules of
type "SERVO".
9. Select your Power Module in the list by its article number.
The data of the selected Power Module are assigned to the unspecified Power Module.
The white area turns dark gray.
The Power Module has been inserted and specified.
