Commissioning
4.5 Establishing an online connection to the drive unit
Commissioning with Startdrive
138 Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1
IP addresses in the project
A CU320-2 PN is created with the following IP addresses in a project in TIA Portal:
●
Ethernet commissioning interface X127
:
The addresses correspond to the addresses that have already been assigned in the drive
unit.
– IP address: 169.254.11.22
– Subnet mask: 255.255.0.0
●
PROFINET interface X150
:
The following addresses are assigned for X150:
– IP address: 192.168.0.1 (example)
– Subnet mask: 255.255.255.0
PROFINET addresses lie in the area of the PROFINET subnet of a SIMATIC S7 PLC
control, so that you can network the drive unit with a control system without having to adapt
the subnet mask and IP address.

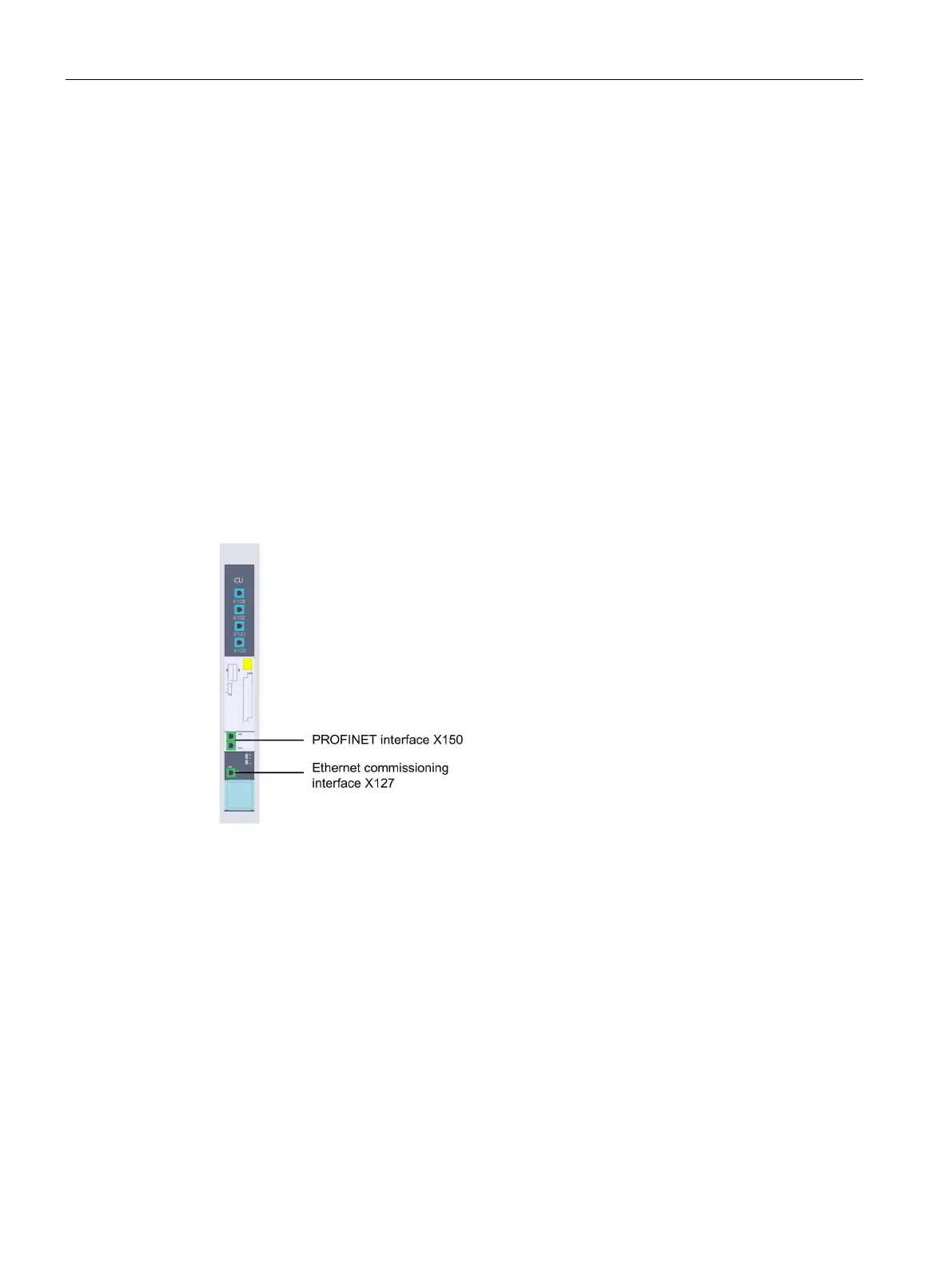

Figure 4-44 CU320-2 PN interfaces
