Commissioning
4.5 Establishing an online connection to the drive unit
Commissioning with Startdrive
148 Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1
Adding an IP address in the subnet
1. Click in the toolbar on button .
The "Go online" dialog opens.

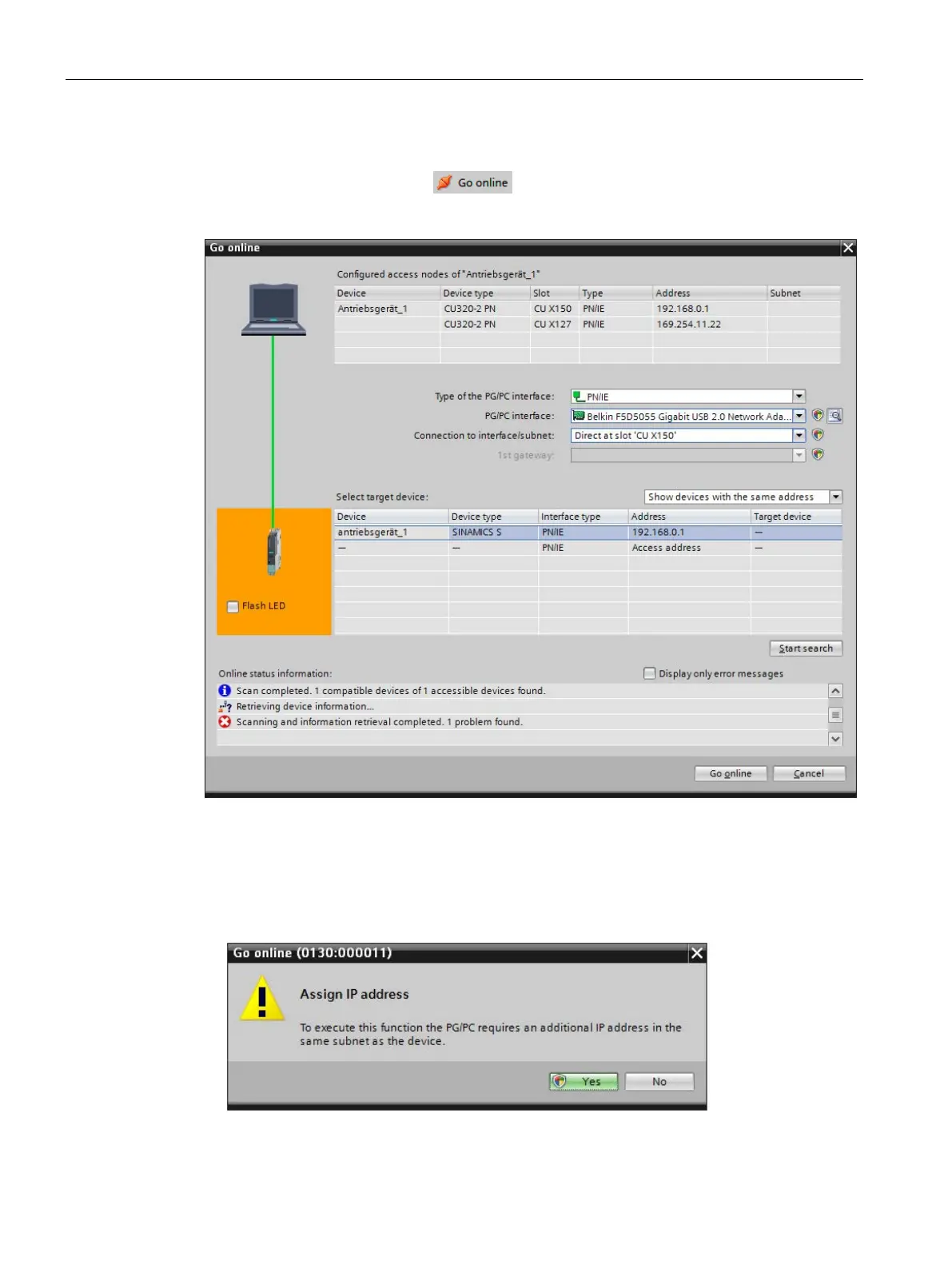

Figure 4-53 Selecting a device for online connection
2. Select the device and click "Connect" to confirm.
3. Assign an IP address to the PG/PC within the subnet of the drive unit.
If you have not already done so, it is now possible to temporarily assign a suitable IP
address from the subnet of the device via Windows Control Panel.
Figure 4-54 Assigning an IP address
