Accessories
8.1 Shield connecting plates
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
451

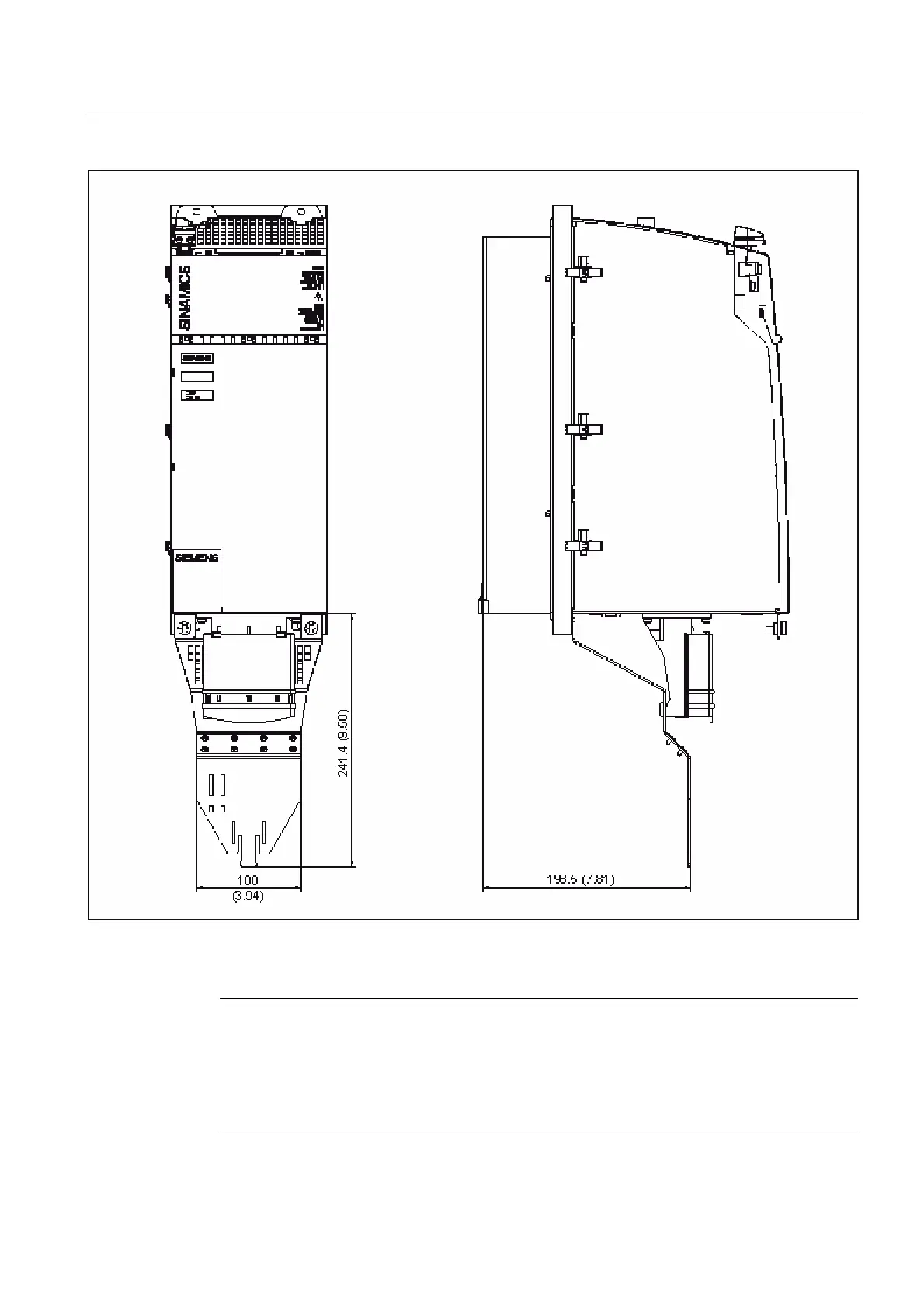

Figure 8-8 Dimension drawing of shield terminal plate on a 150 mm component (Line Module or Motor Module) with
external air cooling
Note
The shield connecting plate is available as an option: Siemens, Order No. 6SL3162-1AF00-
0BA1.
Recommended shielding connection clamps: Weidmüller, Order No. KLBÜ CO1 and KLBÜ
CO4
Weidmüller: http://www.weidmueller.com
