Siemens SINAMICS S120 - Page 89

Line Connection Booksize
2.9 Active Interface Modules internal air cooling
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
89






0
1P
 
 
 
 



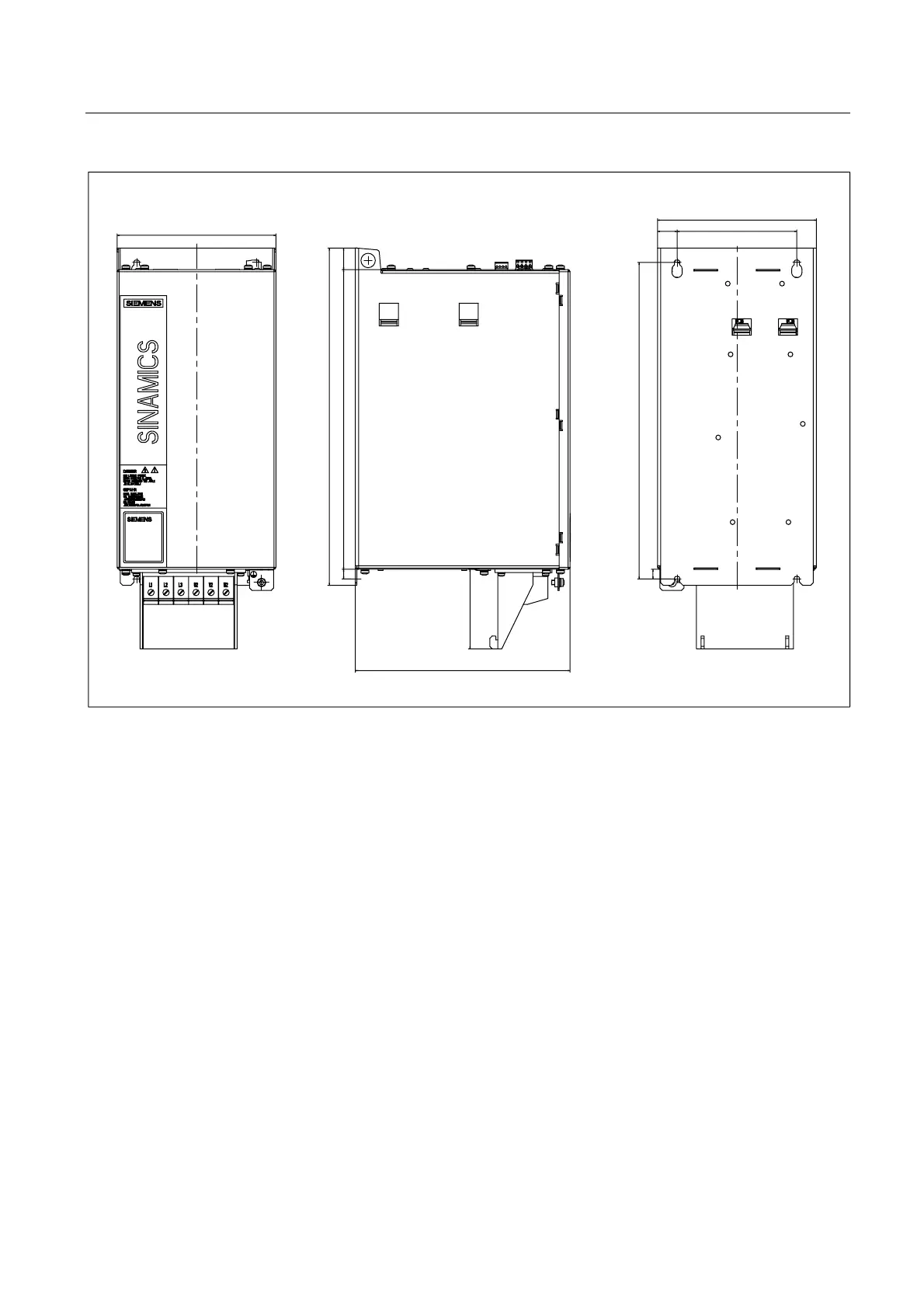

Figure 2-29 Dimension drawing: Active Interface Module 55 kW, all dimensions in mm and (inches)
