7.4.4.4 Connection overview
Overview
Function view "Connection overview" provides information about the connections in the drive
system.
Description of function
The individual components with IP address and additional details are graphically displayed in the
connection overview.

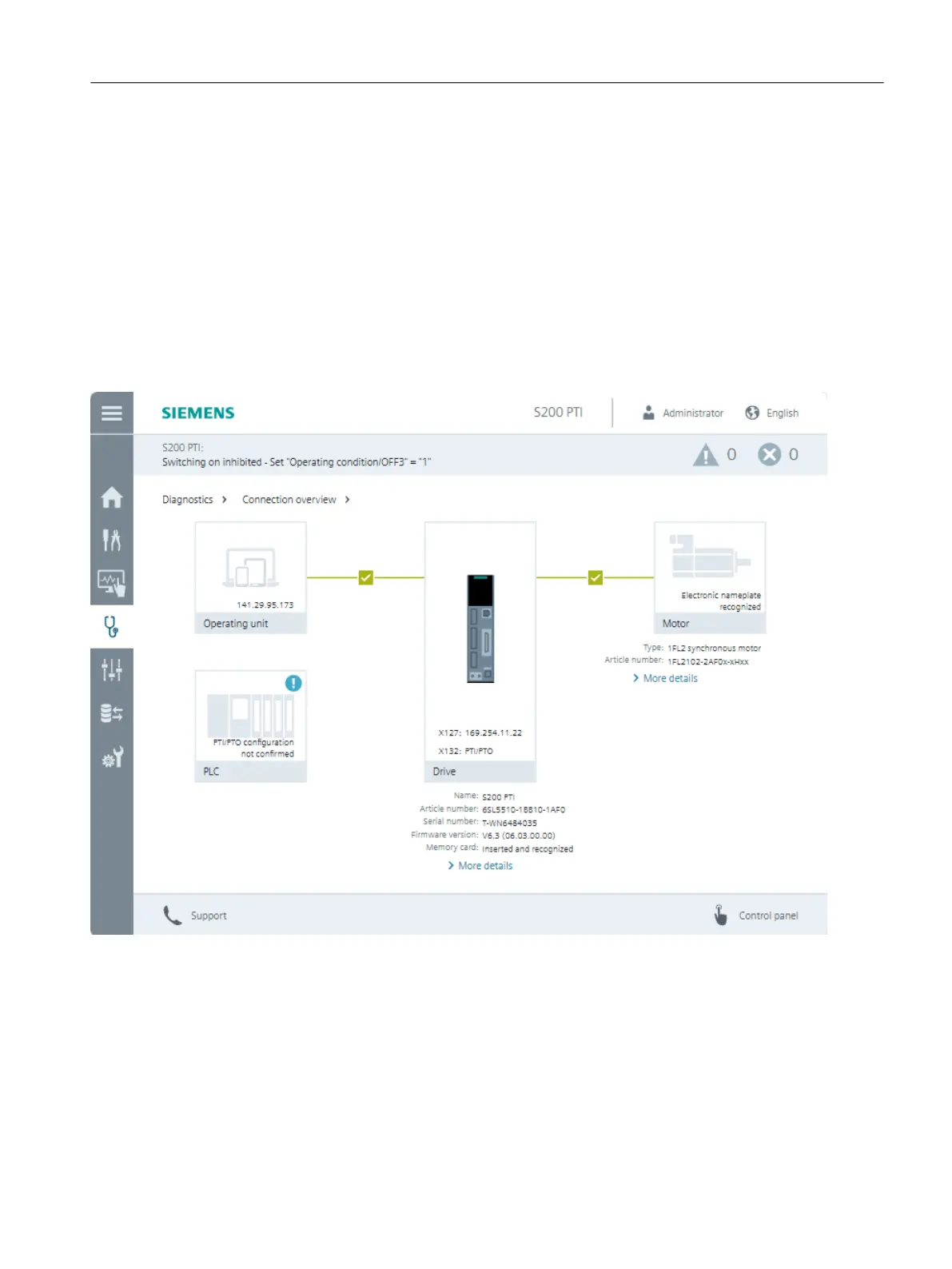

Figure7-11 Connection overview
7.4.4.5 Status word and control word
Ov
er
vie
w
The function vie
w "Contr
ol/status word" provides information about the current status of the
sequence control system.
Commissioning (web server)
7.4Functions and menus
SINAMICS S200 pulse train servo drive system with SIMOTICS S-1FL2
Operating Instructions, 11/2023, FW V6.3, A5E51646767B AA 197
