Example

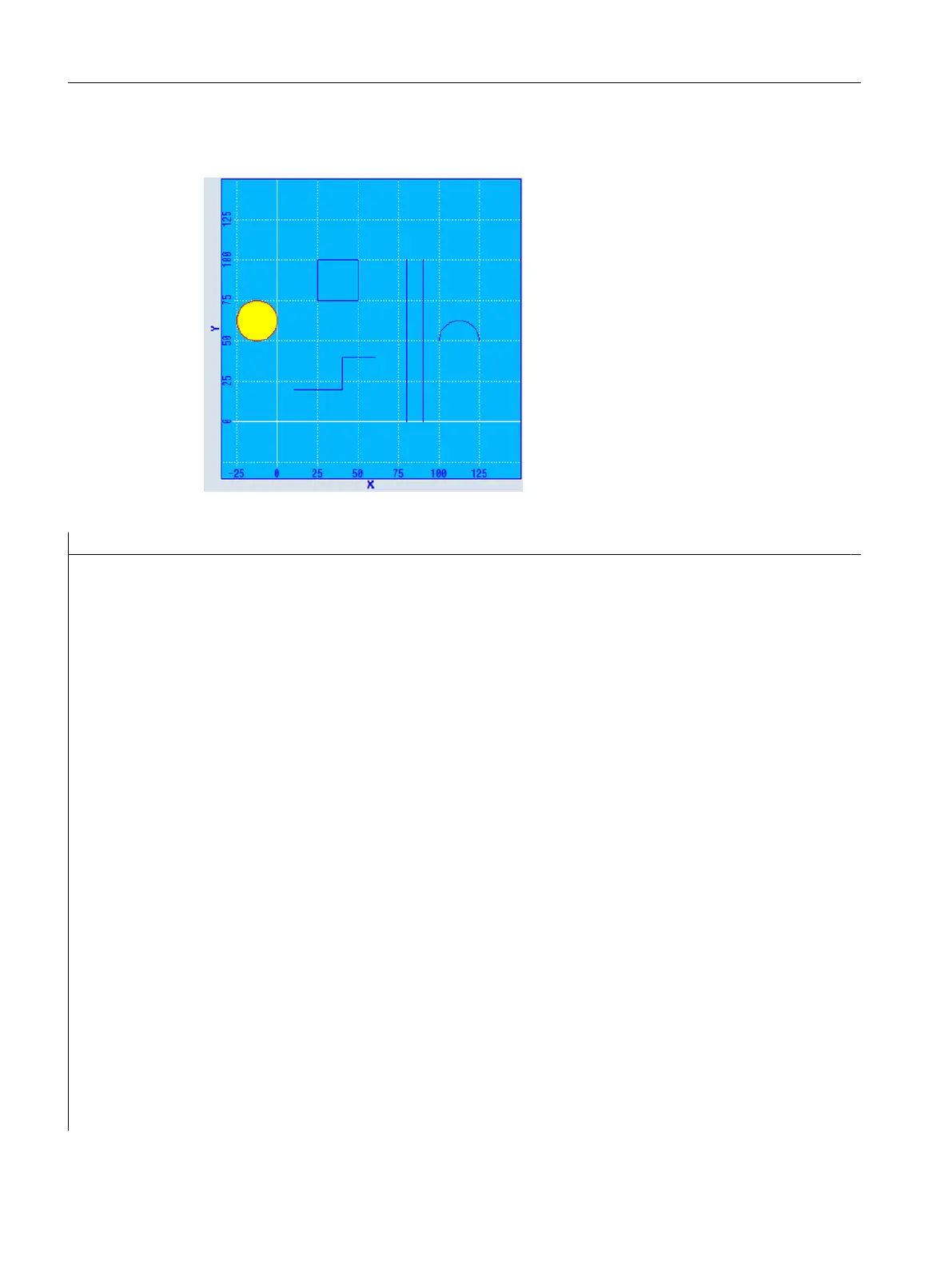

Figure 7-1 SlEsGraphCustomWidget example
//M(MyGraphSampleMask/"SlEsGraphCustomWidget Sample")
DEF MyGraphVar = (W///,"slesgraphcustomwidget.SlEsGraphCustomWidget"/////10,10,340,340/0,0,0,0)
VS1=("Add objects",,se1)
LOAD
WRITECWPROPERTY("MyGraphVar", "AxisNameX", "X")
WRITECWPROPERTY("MyGraphVar", "AxisNameY", "Y")
WRITECWPROPERTY("MyGraphVar", "ScaleTextOrientationYAxis", 2)
WRITECWPROPERTY("MyGraphVar", "KeepAspectRatio", TRUE)
REG[0]= CALLCWMETHOD("MyGraphVar", "addContour", "MyContour", TRUE)
REG[0]= CALLCWMETHOD("MyGraphVar", "showContour", "MyContour")
REG[0]= CALLCWMETHOD("MyGraphVar", "setView", -35, -35, 150, 150)
END_LOAD
PRESS(VS1)
REG[0]= CALLCWMETHOD("MyGraphVar", "addLine", 10, 20, 40, 20)
REG[0]= CALLCWMETHOD("MyGraphVar", "addLine", 40, 20, 40, 40)
REG[0]= CALLCWMETHOD("MyGraphVar", "addLine", 40, 40, 60, 40)
REG[0]= CALLCWMETHOD("MyGraphVar", "addLine", 80, 0, 80, 100)
REG[0]= CALLCWMETHOD("MyGraphVar", "addLine", 90, 0, 90, 100)
REG[0]= CALLCWMETHOD("MyGraphVar", "addRect", 25, 100, 50, 75)
REG[0]= CALLCWMETHOD("MyGraphVar", "setPenColor", "#ff0000");red
REG[0]= CALLCWMETHOD("MyGraphVar", "setFillColor", "#ffff00");yellow
REG[0]= CALLCWMETHOD("MyGraphVar", "addCircle", -12.5, 62.5, 12.5)
REG[0]= CALLCWMETHOD("MyGraphVar", "setFillColor");off/default
REG[0]= CALLCWMETHOD("MyGraphVar", "setPenColor");off/default
REG[0]= CALLCWMETHOD("MyGraphVar", "addArc", 100, 37.5, 125, 62.5, 0, 180)
Graphic and logic elements
7.5 SIEsGraphCustomWidget
SINUMERIK Integrate Run MyScreens (BE2)
218 Programming Manual, 12/2017, 6FC5397-1DP40-6BA1
