Commissioning the system
1.1 Delivery condition of the system
PCU-Basesoftware (IM8)
Commissioning Manual, 02/2014, 6FC5397-1DP40-4BA0
7
Hard disk partitions
Memory segmentation
The hard disk of the
has 40 GB of storage capacity and is segmented into a
primary partition C and an expanded partition with the three logical drives D, E and F which
operate with NTFS file access.

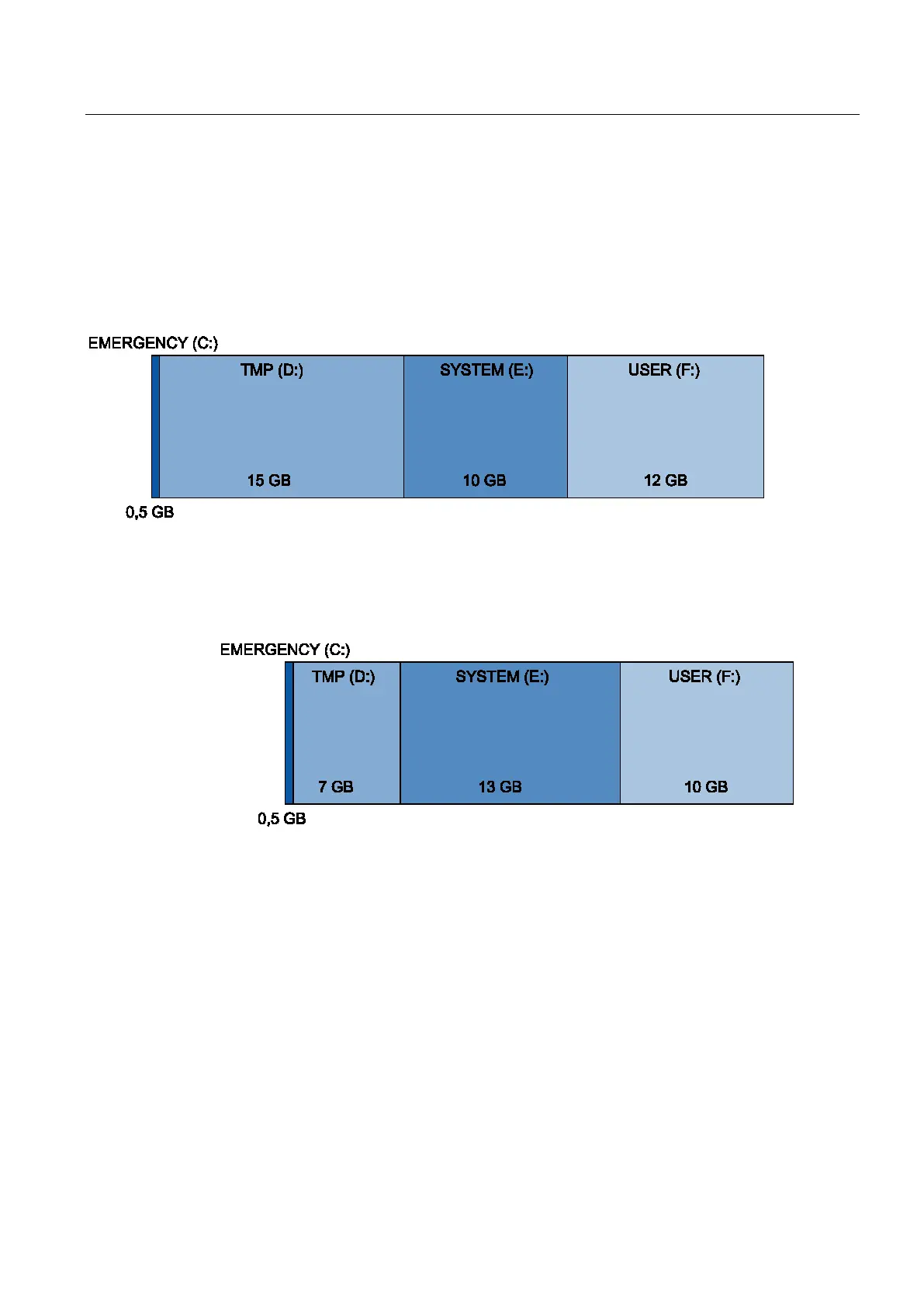

Figure 1-1 Division of the hard disk
The
is equipped with a solid state drive (SSD) with NTFS file access, which is also
segmented to provide a primary partition C and an expanded partition with the three logical
drives D, E and F. The SSD is available with 32 GB and 40 GB storage capacity.
Figure 1-2 Segmentation of the SSD with 32 GB
Partitioning of the SSD with 40 GB is identical to that for partitioning of the hard disk.
Depending on the order, the operating software can already be installed when the unit is
shipped. It is installed subsequently by the customer the first time the system starts up. For
reasons of data security, the operating software and the Windows XP system software are
distributed over the different hard disk partitions.
